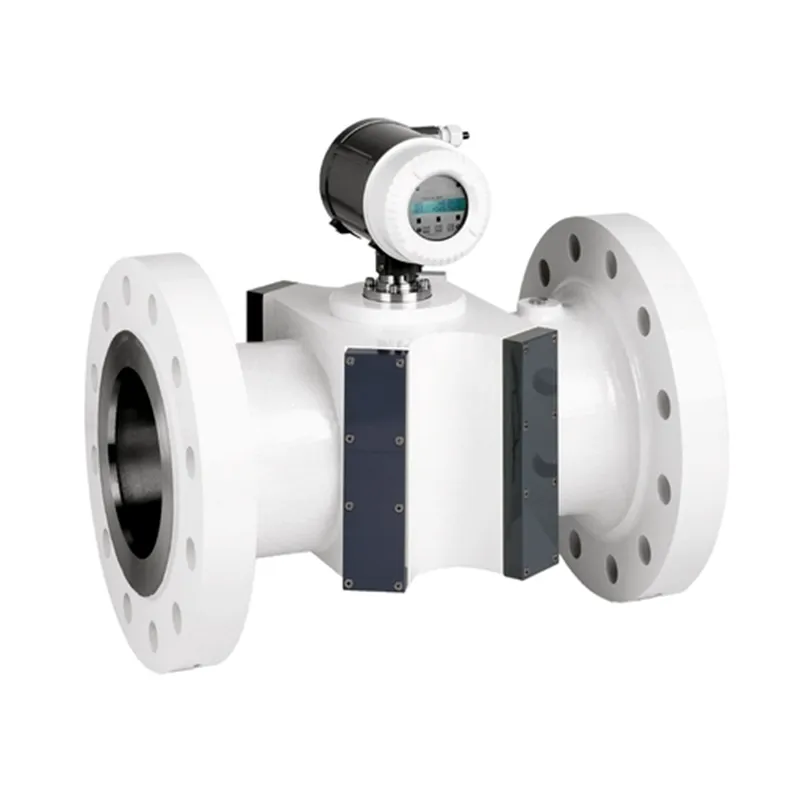

FLOWSIC600 ultrasonic flowmeter | Endress Hauser E+H

Reliable flowmeter for process applications

Request a Quote

Flow measurement

Измерительные приборы уровня

Анализаторы жидкостей

Измерительные приборы температуры

Измерительные приборы давления

System products

Комплектующие для автоматизации

Specs at a glance

Measured variables Volumetric flow, a. c., volume a. c., gas velocity, sound velocity

Measuring Medium Natural gas, air, C2H4, steam, process gases (e. g. CO2 up to 100%, N2, O2, Cl2 etc.), gases like sour gas or bio gas with high H2S content

Nominal pipe size 2″ … 24″ (DN 50 … DN 600)

Field of application

The FLOWSIC600 is an ultrasonic flowmeter that sets the standard in its market segment. The design shows that it is geared towards the harsh conditions of the industry. Thanks to its compact design with integrated cable routing, the measuring system is durable, fail-safe, low-maintenance, and exhibits long-term stability. The FLOWSIC600 has extensive diagnostic options that allow faults to be detected before the measurement is affected and offers process monitoring based on the speed of sound.

Benefits

Long-term stability, reliable measurement
Low maintenance due to intelligent self-diagnostics
Virtually immune to pressure regulator noise
Ultrasonic transducers can be exchanged under operating pressure
Wide application range

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	ACCESS. FOR DESIGN CERTIFIC.	further parts		2031000
2	HOUSING MOUNT EX ATEX M20 FB RAL7012-AL	further parts		2031300
3	CAP REAR EX-D MOUNT AL RAL9002	further parts		2031302
4	HOUSING MOUNT EX ATEX NPT FB RAL7012-AL	further parts		2031304
5	ANALOG BLOCK 4-PATH IIA/D 2L7 SP	further parts		2031456
6	ANALOG BLOCK 4-PATH IIC/BCD 2L7 SP	further parts		2031485
7	EXTENSION HT L650 GG	further parts		2031633
8	EXTENSION HT L850 GG	further parts		2031634
9	PROBE D12F135MB250P18M27-W-X-T-V-X-X-28P	further parts		2032538
10	EXTENSION HT L450 GG	further parts		2032578
11	EXTENSION 2XMU 4Z OFFS SS RAL9002	further parts		2032579
12	EXTENSION HT L550 GG	further parts		2032600
13	EXTENSION HT L350 GG	further parts		2032601
14	OPERAT. SET LCD	further parts		2032787
15	HOUSING MOUNT EX ATEX M20 FB RAL7012-SS	further parts		2033309
16	MEPA INTERFACE-SET INTRINSIC SAFE EX	further parts		2033410
17	PRODUCT-CD FLOWSIC600	further parts		2033761
18	PROBE D12F135MB100P18M27-W-X-T-V-X-X-S8P	further parts		2034125
19	HT CRANK DI40 SS	further parts		2034376
20	EXTENSION HT L1150 GG	further parts		2034378
21	HT CRANK DI40 SS RAL9002	further parts		2034940
22	EXTENSION HT L1350 GG RG180	further parts		2035069
23	EXTENSION HT L950 GG	further parts		2035115
24	PROBE D08F200MB250P10M16-X-X-T-V-X-X-26P	further parts		2039441
25	PLUG 1/8″ NPT IN BAG	further parts		2039447
26	SCREW SET FOR CAP(10P COUNTER SUNK)	further parts		2039452
27	PROBE D08F200MB250P18M27-W-X-T-V-X-X-22P	further parts		2039997
28	CONNECT. BLOCK V2 ATEX/CSA SP	further parts		2040275
29	ELEKTRONIC BLOCK BASIC SP	further parts		2040343
30	ELEKTRONIC BLOCK H BASIC SP	further parts		2040344
31	NECK-D04-2P1-EX-A283-I400-GG PREFAB.	further parts		2040353
32	ELECTRONIC BLOCK IIA/D 2L7 SP	further parts		2040382
33	ELECTRONIC BLOCK IIC/BCD 2L7 SP	further parts		2040383
34	ELECTRONIC BLOCK IIA/D H 2L7 SP	further parts		2040384
35	ELECTRONIC BLOCK IIC/BCD H 2L7 SP	further parts		2040385
36	ELECTRONIC BLOCK IIA/D 1L6 SP	further parts		2040386
37	ELECTRONIC BLOCK IIC/BCD 1L6 SP	further parts		2040387
38	ELECTRONIC BLOCK IIA/D H 1L6 SP	further parts		2040388
39	ELECTRONIC BLOCK IIC/BCD H 1L6 SP	further parts		2040389
40	PROBE D08F200MB450P14M22-X-X-T-V-X-X-46P	further parts		2040391
41	PROBE D12F135MB016P18M27-W-H-T-V-X-X-S7P	further parts		2040392
42	PROBE D12F135MB100P14M22-X-X-S-V-X-X-N4P	further parts		2040393
43	VERLAENGERUNG HT L1650 GG RG180	further parts		2040674
44	EXTENSION HT L1950 GG RG180	further parts		2040678
45	USB-SERVICEADAPTER	further parts		2040718
46	CONNECT. BLOCK V2 VCI ATEX/CSA SP	further parts		2041154
47	ELECTR.MODIF.KIT REV2 ATEX IIA SP	further parts		2041425
48	ELECTR.MODIF.KIT REV2 ATEX IIC SP	further parts		2041428
49	ELECTR.MODIF.KIT REV2 CSA D SP	further parts		2041429
50	ELECTR.MODIF.KIT REV2 CSA BCD SP	further parts		2041430
51	ELECTR.MODIF.KIT REV2 H ATEX IIA SP	further parts		2041431
52	ELECTR.MODIF.KIT REV2 H ATEX IIC SP	further parts		2041432
53	ELECTR.MODIF.KIT REV2 H CSA D SP	further parts		2041433
54	ELECTR.MODIF.KIT REV2 H CSA BCD SP	further parts		2041434
55	FUSE BOARD W. MOUNT. ACCESS. M3 AU SP	further parts		2041502
56	NECK-4P1	further parts		2042057
57	NECK-2P1	further parts		2042058
58	CAP 16Z AL RAL7012 MOUN.	further parts		2042118
59	CAP 2Z5D AL RAL7012 MOUN.	further parts		2042167
60	CAP 3Z AL RAL7012 MOUN.	further parts		2042169
61	CAP 3Z SS MOUN.	further parts		2042170
62	CAP 4Z AL RAL7012 MOUN.	further parts		2042175
63	CAP 4Z SS MOUN.	further parts		2042176
64	CAP 6Z AL RAL7012 MOUN.	further parts		2042187
65	CAP 6Z SS MOUN.	further parts		2042189
66	CAP 8Z AL RAL7012 MOUN.	further parts		2042191
67	CAP 8Z SS MOUN.	further parts		2042192
68	CAP 10Z AL RAL7012 MOUN.	further parts		2042196
69	CAP 10Z SS MOUN.	further parts		2042198
70	CAP 12Z AL RAL7012 MOUN.	further parts		2042200
71	CAP 14Z AL RAL7012 MOUN.	further parts		2042205
72	CAP 14Z SS MOUN.	further parts		2042206
73	CAP 16Z SS MOUN.	further parts		2042208
74	CAP 20Z AL RAL7012 MOUN.	further parts		2042210
75	CAP 20Z SS MOUN.	further parts		2042211
76	CAP 24Z AL RAL7012 MOUN.	further parts		2042213
77	CAP 24Z SS MOUN.	further parts		2042215
78	EXTENSION HT L2350 GG RG180	further parts		2042348
79	CAP SPECIAL D83 AL S-SURFA MOUN	further parts		2042419
80	EXTENSION HT L750 GG	further parts		2042434
81	EXTENSION HT L1450 GG RG180	further parts		2042486
82	EXTENSION HT L1250 GG RG180	further parts		2042488
83	EXTENSION HT L2150 GG RG180	further parts		2042490
84	NECK-D04-4P1-EX-A283-I400-GW	further parts		2042494
85	CAP 18Z AL RAL7012 MOUN.	further parts		2042586
86	EXTENSION HT L1750 GG RG180	further parts		2042674
87	CABLE FLOW 10-P W.PROTECT. IN BAG	further parts		2042889
88	EXTENSION HT L450 GW	further parts		2044396
89	ELECTR.MOD.SET REV2 H ATEX IIA EVC SP	further parts		2044796
90	CAP 12Z SS MOUN.	further parts		2044966
91	HOUSING MOUNT EX ATEX NPT FB RAL7012-SS	further parts		2045198
92	EXTENSION HT L550 WG	further parts		2045940
93	PROBE D12F135MB016P18M27-W-H-T-V-X-X-B7P	further parts		2046009
94	ELECTRONIC BLOCK IIC/BCD A 1L6 SP	further parts		2046353
95	ELECTRONIC BLOCK IIA/D A 1L6 SP	further parts		2046354
96	ELECTRONIC BLOCK IIC/BCD A 2L7 SP	further parts		2046413
97	ELECTRONIC BLOCK IIA/D A 2L7 SP	further parts		2046414
98	CAP 18Z SS MOUN	further parts		2046504
99	EXTENSION 2XMU 4Z OFFS SS	further parts		2048113
100	PROBE D12F135MB100P18M27-W-X-S-X-X-X-N8P	further parts		2048186
101	PCBA-SPU REV2 W.BATTERY ET	further parts		2049790
102	PCBA-I/O REV2 ET	further parts		2049791
103	PCBA-I/O H REV2 ET	further parts		2049792
104	PCBA-POWER SUPPLY BAT. ET	further parts		2049793
105	ELECTRONIC BLOCK EVC BASIC SP	further parts		2050959
106	PCBA-I/O EVC ET	further parts		2051906
107	PCBA-I/O AO REV2 ET	further parts		2052012
108	ANALOG BLOCK 4-PATH IIA/D 2L7/HS SP	further parts		2052513
109	ANALOG BLOCK 4-PATH IIC/BCD 2L7/HS SP	further parts		2052514
110	PROBE D08F200MB100P14M22-X-X-T-V-X-X-16P	further parts		2055670
111	CAP SPECIAL D83 SS MOUNT	further parts		2056677
112	CONNECT. BLOCK V2 VCI6 ATEX/CSA/IEC SP	further parts		2056878
113	ANALOG BLOCK 4-PATH IIC/BCD 1L6 SP	further parts		2058288
114	PROBE D12F135MB100P14M22-X-X-S-V-X-X-K4P	further parts		2062720
115	CONNECT. BLOCK V2 IEC SP	further parts		2062870
116	ELEKTRONIC BLOCK IIA/D E 2L7 SP	further parts		2063707
117	ELEKTRONIC BLOCK IIC/BCD H 6L5 HS SP	further parts		2064046
118	CONNECT.CABLE ANALOG, TNC-TNC 15M EXI SP	further parts		2072946
119	GROUNDING TERMINAL M6 A4 SP	further parts		2073596
120	NECK-D04-2P1-EX-A283-I400-WW SP	further parts		2079976
121	ELEKTRONICS BLOCK IIC/BCD E 2L7 SP	further parts		2083165
122	BATTERY,BUTTON BR2032 SP	further parts		2085319
123	CAP FRONT EX-D MOUNT SS RAL9002 SP	further parts		2099112
124	CAP REAR EX-D MOUNT SS RAL9002 SP	further parts		2099113
125	PCBA-SPU BOARD REV2 W.BATTERY DRU SP	further parts		2122400
126	ELECTRONIC BLOCK IIA/D A 1L6 DRU SP	further parts		2134361
127	CAP FRONT EX-D MOUNT AL RAL9002 SP	further parts		2138676
128	RETAINING SCREW M161,5 2.2	further parts		4039880
129	RETAINING SCREW M221,5 2.2	further parts		4040076
130	MASS BRIDGE	further parts		4041791
131	OWN HOLDER	further parts		4043108
132	COAX-SLIP TOOL NL200	further parts		4047938
133	O-RING 11.5 1.5 VITON NAT.GAS RESIST.	further parts		5313739
134	SEAL.CORD 4,0-EPDM 60+-10 SHORE BK	further parts		5314109
135	O-RING 11.5 1.5 VITON V747-75	further parts		5314241
136	O-RING 13.89 1.3 FFKM75 SH.A BK	further parts		5314474
137	O-RING 11.5 1.5 FFKM90/PERLAST G90LT	further parts		5314490
138	O-RING 4.5 1.5 FPM 80	further parts		5314638
139	O-RING 15.0 2.0 FFKM90/PERLAST G90LT	further parts		5315517
140	O-RING 11.5 1.5 VITON LT170-TT	further parts		5318606
141	CLOSURE PLUG NPT1/2″ 1.4571 2.2	further parts		5320603
142	O-RING 4.5 1.5 VITON LT170-TT	further parts		5321113
143	SPRINGWASH B 8 -A2	further parts		5321752
144	O-RING 15.0 2.0 VITON V747-75	further parts		5321974
145	O-RING 15.0 2.0 FR25/90 (FKM 428)	further parts		5322560
146	O-RING 7.5 1.5 FR25/90 (FKM 428)	further parts		5322561
147	O-RING 37.47 5.33 FR25/90 (FKM 428)	further parts		5324617
148	O-RING 15.0 2.0 PERLAST G75B	further parts		5325149
149	O-RING 245.8 2.0 PERLAST G75B	further parts		5325150
150	O-RING 43.0 2.0 PERLAST G75B	further parts		5325151
151	O-RING 15.0 2.0 FR25/90 N.LSP	further parts		5325277
152	O-RING 11.5 1.5 FR25/90 (FKM 428)	further parts		5325664
153	ROUND CORD 2,0-EPDM 70 SHORE A BK	further parts		5337565
154	RETAINING SCREW M272 (OHNE WW) 2.2	further parts		7041294
155	DICHTUNG K61 (GERAETEHALS) – EPDM	further parts		7041495
156	FRONTPLATTE LED SICK ET	further parts		7041659
157	FRONTPLATTE LCD SICK ET	further parts		7041660
158	CLAMP ,NC.CL.CL 10P Q2,5 264-… GY	further parts		7041670
159	NETZABDECKUNG MONT	further parts		7041671
160	TRANSDUCER EXTRACTOR	further parts		7041772
161	PROBE D16F200MB100P18M27-W-X-T-V-X-X-S2P	further parts		7041787
162	ANALOG BLOCK 4-PATH IIA/D 1L6 SP	further parts		7041795
163	SONDE D12F135MB100P14M22-X-X-T-V-X-X-S4P	further parts		7042605
164	PROBE D08F200MB100P10M16-X-X-T-V-X-X-S6P	further parts		7042607
165	O-RING 15,0 2,0 VITON ERDGASBEST.	further parts		7045173
166	CLOSURE PLUG NPT1/4″ 1.4571 2.2	further parts		7045206
167	O-RING 37,82 1,78 VITON 70 SHORE	further parts		7045209
168	O-RING 29,822,62 – VITON 80 SHORE	further parts		7045210
169	SPRING,DISC – 20 /10,21,1 NIRO	further parts		7045916
170	SCHEIBE FEDER B12 – A2	further parts		7045991
171	BATTERY, BUTTON 3V 0AH19 LI. BR2032	further parts		7048533
172	PR-SEAL SET NATURAL GAS D15 SP	further parts		2085270
173	PR-SEAL SET NATURAL GAS D 7.5 SP	further parts		2085274
