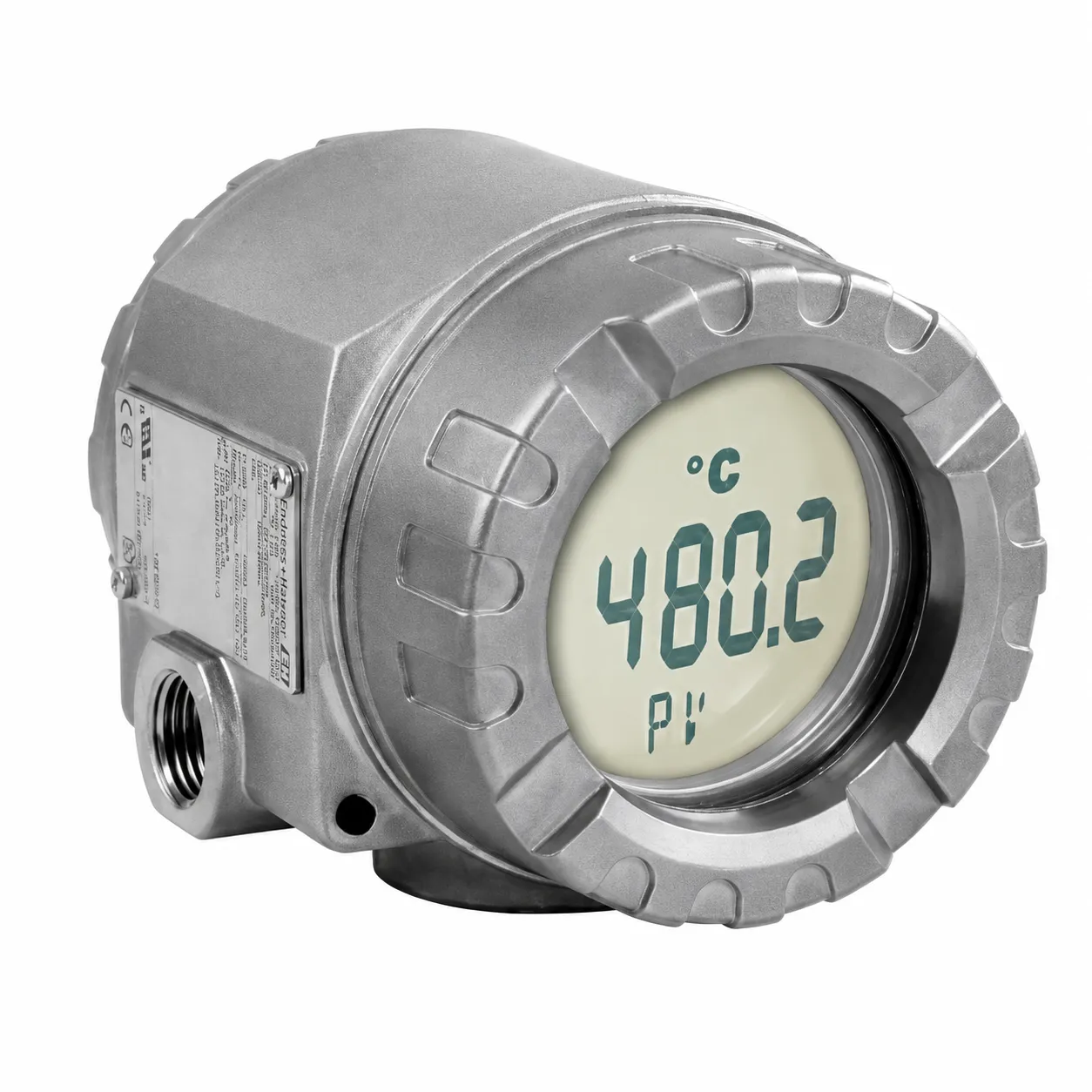

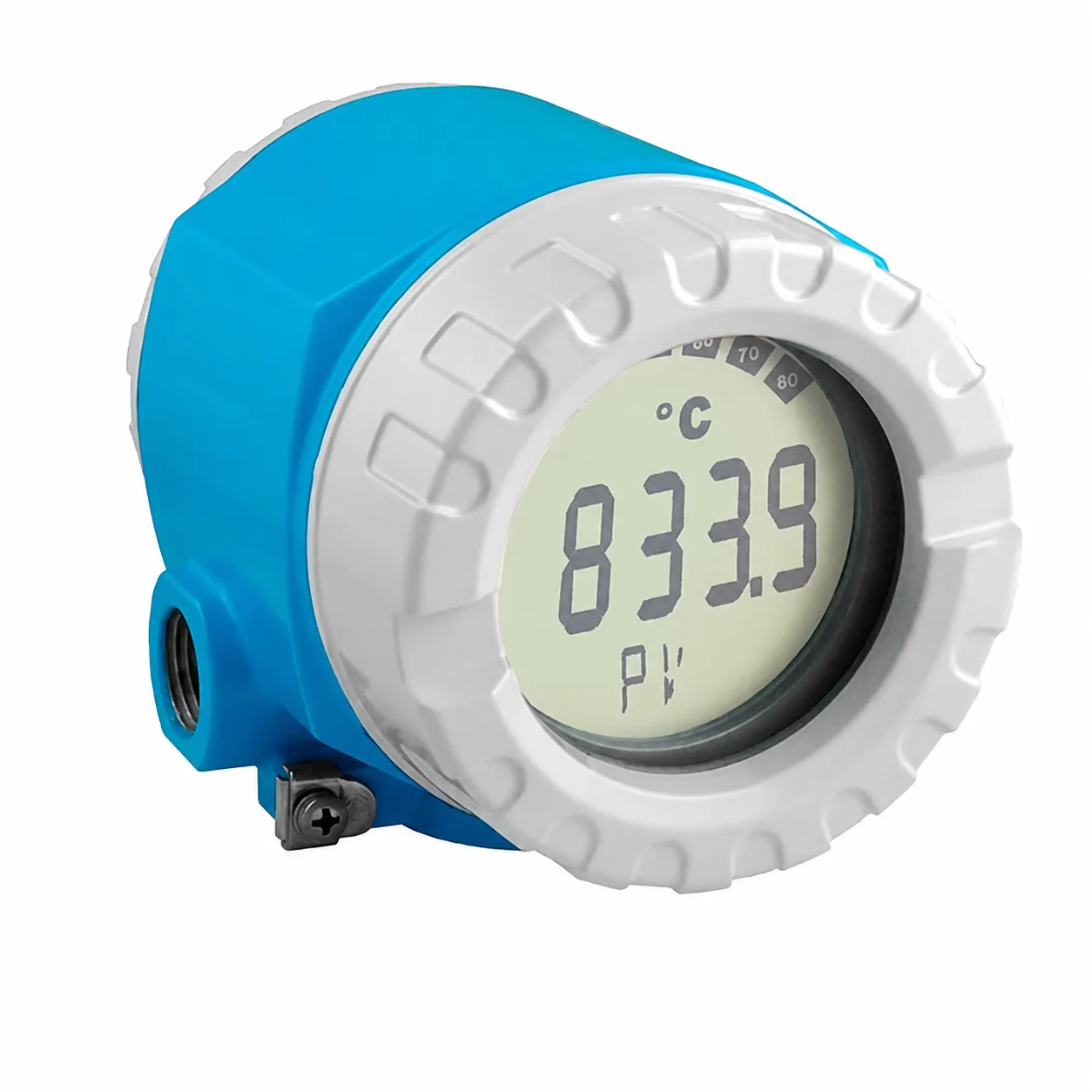

iTEMP TMT162 temperature transmitter | Endress Hauser E+H

HART®, FOUNDATION Fieldbus™ or PROFIBUS® temperature field transmitter with two universal sensor inputs suitable for use in hazardous areas and SIL 2

Specs at a glance

Accuracy (Pt100) <= 0,1 K (HART, FF, PA) (Pt100) <= 0,18 °F(HART, FF, PA)

Field of application

Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART , FOUNDATION Fieldbus™-, PROFIBUS PA communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.

Benefits

  • High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics
  • Backlit display with large measured value, bar graph and status condition indication
  • Diagnostics information according to NAMUR NE107
  • International approvals such as FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof); marine approval
  • SIL certification as per IEC 61508:2010
  • Galvanic isolation 2 kV (sensor input / current output)

Spare parts & accessories

DescriptionCategoryOrder Code
1Spare Parts TMT162further partsTMT162X-
2Spare Parts TMT162DisplayTMT162X-
3Housing TMT162Housing/housing accessoriesTMT162G-
4Spare Parts TMT162FixingTMT162X-
5Cover latch spares kit field housingHousing/housing accessories51004948
6O-Ring 88×3 HNBR 70o Shore PTFEHousing/housing accessories71502617
7O-Ring 88×3 EPDM 70 PTFE-coatedHousing/housing accessories71158816
8Spare Parts TMT162DisplayTMT162X-
9Electronic TMT162further partsTMT162E-
10Electronic TMT162further partsTMT162E-
11Housing TMT162Housing/housing accessoriesTMT162G-
12Spare Parts TMT162FixingTMT162X-
13Spare Parts TMT162FixingTMT162X-
14Spare Parts TMT162FixingTMT162X-
15Spare Parts TMT162FixingTMT162X-
16Commubox FXA195further partsFXA195-
17Spare RFID TAGfurther partsXPRFID-
18Plug for Thermometer + TransmitterXPT0002-
19Cable gland NPT1/2, D4.5-8.5 IP6851006845
20Cable gland M20x1.5 ATEX/IECEx71638066
21Adapter M20x1.5 exter./M24x1.5 intern.VA51004915
22O-Ring 18.77×1.78 HNBR 70o Shore PTFE71502941
23Blanks (blind) NPT1/2 V4A51006888
24Blanks (blind) NPT1/2, AlMgSiBi51004490
25Blind plug M20x1.5 EEx-d+O-ring Alu71525620
26Blind plug M20x1.5 Ex-d+O-ring V4A71525622
27Blind plug G1/2″ Ex-d+O-ring Alu71525621
28Blind plug G1/2″ Ex-d+O-ring V4A71525623
29Mounting bracket st. steel wall/2″ tube51004823
30Mounting bracket 2″tube stainless steel51006412
