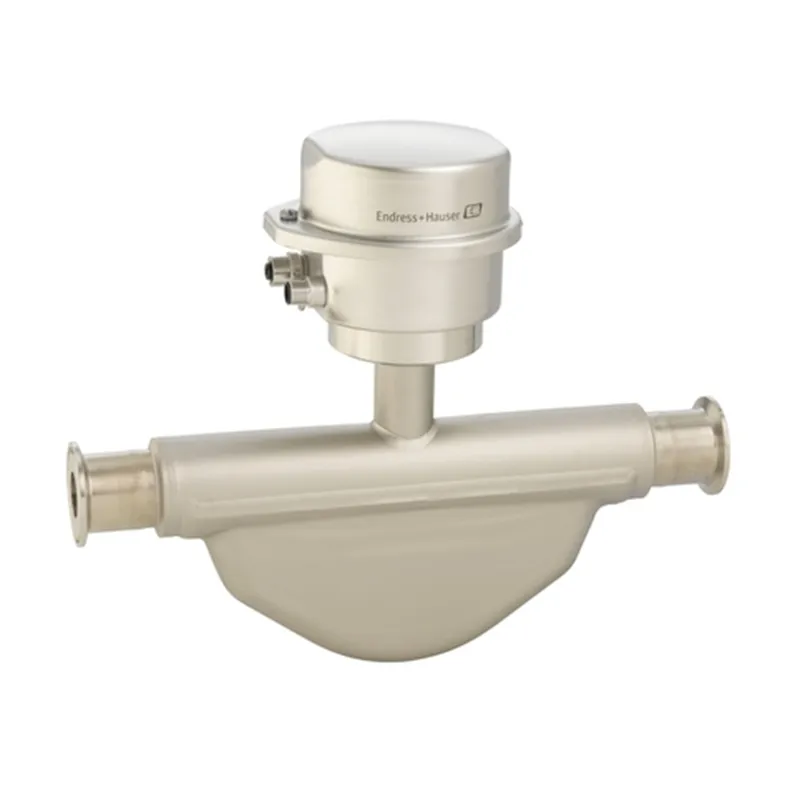

Proline Promass E 100 Coriolis flowmeter | Endress Hauser E+H

Mid-range Coriolis flowmeter with an ultra compact transmitter

Request a Quote

Flow measurement

Измерительные приборы уровня

Анализаторы жидкостей

Измерительные приборы температуры

Измерительные приборы давления

System products

Комплектующие для автоматизации

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option) Volume flow (liquid): ±0.15 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 180 000 kg/h (0 to 6600 lb/min)
Medium temperature range –40 to +150 °C (–40 to +302°F)
Max. process pressure PN 100, Class 600, 63K
Wetted materials Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L)

Field of application

The robust Promass E has a long-standing reputation as reliable solution accurately measuring liquids and gases in a wide range of standard applications. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promass E 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables measurement reliability and compliant verification.

Benefits

Cost-effective – multipurpose device; an alternative to conventional volumetric flowmeters

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in-/outlet run needs
Space-saving transmitter – full functionality on the smallest footprint
Time-saving local operation without additional software and hardware – integrated web server

Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronic Promass/Cubemass 100	Electronic	30	XPD0005-
2	Display module, 4-wire, 100	Display	50	XPD0023-
3	Kit Ex-i barrier	Electronic (periphery)	47	71185785
4	Kit connection terminal for Ex-i barrier	Terminals	45	71185787
5	Kit T-DAT, 100/300/400/500	Memory	39	71185788
6	Kit cover, compact, Alu	Cover	21	71185789
7	Kit cover, compact, stainless 1.4301	Cover	21	71185790
8	Kit cover,ultra compact,stainless 1.4301	Cover	21	71185793
9	Kit cover, sight glass, compact, Alu	Cover	20	71266334
10	Kit cover, sight glass, compact, 1.4301	Cover	20	71266335
11	Kit cover,sight glass,ultra comp.,1.4301	Cover	20	71266337
12	Kit housing gaskets, compact, Alu	Sealing	70	71185795
13	Kit housing gaskets, compact, stainless	Sealing	70	71185797
14	Kit hous.gaskets,ultra compact,stainless	Sealing	70	71185799
15	Kit 10 cable glands M20x1.5 Ex	Adapter housing/cable entry	15	50098036
16	Kit 2 cable glands M20x1.5 INOX Ex	Adapter housing/cable entry	15	71069285
17	Kit 10 ext. M20x1.5/G 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098041
18	Kit 2 cable glands G1/2″ INOX Ex	Adapter housing/cable entry	15	71185802
19	Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098042
20	Kit 2 cable glands NPT1/2″ INOX Ex	Adapter housing/cable entry	15	71185800
21	Kit securing clamp, screw	Housing/housing accessories	12	71276494
22	Spare RFID TAG	further parts		XPRFID-
23	Spare IEC TAG	further parts		XPSPEC-
24	Promass sensor, heating jacket, DK8003			DK8003-
