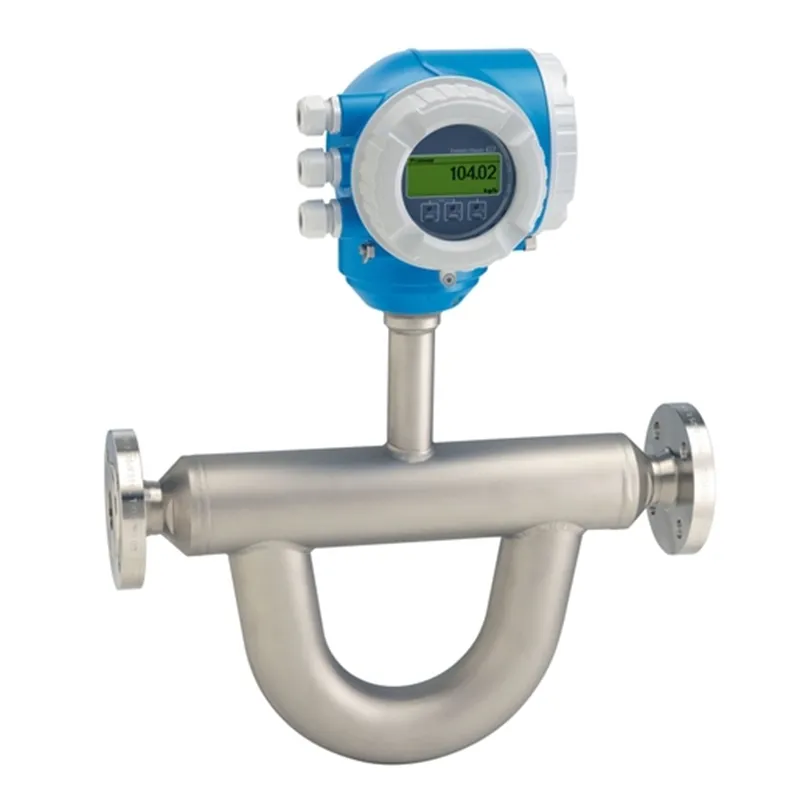

Proline Promass Q 300 Coriolis flowmeter | Endress Hauser E+H

Innovative specialist for challenging applications with a compact, easily accessible transmitter

Request a Quote

Flow measurement

Измерительные приборы уровня

Анализаторы жидкостей

Измерительные приборы температуры

Измерительные приборы давления

System products

Комплектующие для автоматизации

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.10 % (standard), 0.05 % (option) Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.25 % Density (liquid): +/-0.2 kg/m³ (standard), +/-0.1 kg/m³ (option)

Measuring range 0 to 2 400 000 kg/h (0 to 88183 lb/min)
Medium temperature range Standard: –50 to +205°C (–58 to +401 °F) Option: –196 to +150 °C (–321 to +302 °F)

Max. process pressure PN 100, Class 600, 63K
Wetted materials Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications Connection: 1.4404 (316/316L)

Field of application

Promass Q 300 provides the highest measurement accuracy for mass flow, volume flow and density. Being the preferred choice for custody transfer applications, it has also been optimized liquid applications where entrained gas is known to be present. The compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables safe processes.

Benefits

Secured measuring quality – unmatched accuracy of mass flow, volume flow and density

Optimized performance for liquids with entrained gas – MFT (Multi Frequency Technology)

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in-/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	ISEM electronic module, Promass 300/500	Electronic	33	XPD0028-
2	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
3	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
4	Display module, 300/500/DKX001	Display	50	XPD0031-
5	Kit power supply, AC 100…240V, Ex	Power supply	31	71323007
6	Kit power supply, DC 24V, Ex	Power supply	31	71323008
7	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
8	Kit T-DAT, 100/300/400/500	Memory	39	71185788
9	Kit module cartridge, 300/500, Ex	Electronic (periphery)	37	71323010
10	Kit module cartridge, 300/500, Non-haz	Electronic (periphery)	37	71323011
11	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71323005
12	Kit conn.terminal option A,300/500,N-haz	Terminal module	45	71323073
13	Kit conn.terminal option B, 300, Non-haz	Terminal module	45	71323074
14	Kit conn.terminal option C,300/500,N-haz	Terminal module	45	71327818
15	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
16	Kit conn.terminal option B, 300/500, Ex	Terminal module	45	71323076
17	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
18	Kit terminal, transm.,remote display,300	Terminals	49	71323079
19	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
20	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
21	Kit cover, blind, Alu, Non-haz/Exde	Cover	21	71323018
22	Kit cover, blind, Alu,-50oC,Non-haz/Exde	Cover	21	71323019
23	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
24	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
25	Kit cover, blind, Alu, Exd	Cover	21	71323022
26	Kit cover, blind, Alu, -50oC, Exd	Cover	21	71323023
27	Kit cover, sight glass, cast, Ex	Cover	20	71323024
28	Kit cover, sight glass, cast, -50oC, Ex	Cover	20	71323025
29	Kit cover, blind, cast, Ex	Cover	21	71327102
30	Kit cover, blind, cast, -50oC, Ex	Cover	21	71327103
31	Kit cover gasket, sight glass/blind	Sealing	70	71323026
32	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
33	Kit cover,sight glass,polycarbonate,hyg.	Cover	20	71587949
34	Kit cover,blind/electronic compart.,hyg.	Cover	21	71587950
35	Kit cover gasket, hygienic	Sealing	70	71587951
36	Kit cover, electr.compart., Alu, Non-haz	Cover	22	71323028
37	Kit cover,electronic, Alu,- 50oC,Non-haz	Cover	22	71323029
38	Kit cover gasket,electr.compart.,Non-haz	Sealing	74	71323030
39	Kit cover gasket,electr., -50oC, Non-haz	Sealing	74	71323031
40	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
41	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
42	Kit cover, electronic compart., cast, Ex	Cover	22	71323034
43	Kit cover, electr.compart.,cast,-50oC,Ex	Cover	22	71323035
44	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
45	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
46	Kit cover, remote display, Alu	Cover	28	71323044
47	Kit cover, remote display, Alu, -50oC	Cover	28	71323045
48	Kit cover, remote display, cast	Cover	28	71323046
49	Kit cover, remote display, cast, -50oC	Cover	28	71323047
50	Kit cover gasket, remote display	Sealing	76	71323048
51	Kit cover gasket, remote display, -50oC	Sealing	76	71323049
52	Kit interface gaskets, 300/500	Sealing	71	71323071
53	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
54	Kit interface gaskets, Promass 300, hyg.	Sealing	71	71368491
55	Kit interf.gaskets,Promass300,hyg.,-50oC	Sealing	71	71368492
56	Kit protect.cover option A,300/500,N-haz	Miscellaneous	11	71368488
57	Kit protective cover optionB,300,Non-haz	Miscellaneous	11	71368489
58	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
59	Kit protective cover option B,300/500,Ex	Miscellaneous	11	71323082
60	Kit plug M12, RJ45, L= 80mm	further parts		71450719
61	Kit plug M12, RJ45, L= 175mm	further parts		71450720
62	Spare RFID TAG	further parts		XPRFID-
63	Spare IEC TAG	further parts		XPSPEC-
64	Kit weather protection cover, 300/500		87	71343505
65	Kit wireless antenna extended range			71351317
66	Transmitter Promass 300, 8X3BXX			8X3BXX-
67	Remote Display DKX001			DKX001-
68	Connection Cable for Remote Display			DKX002-
69	Promass sensor, heating jacket, DK8003			DK8003-
