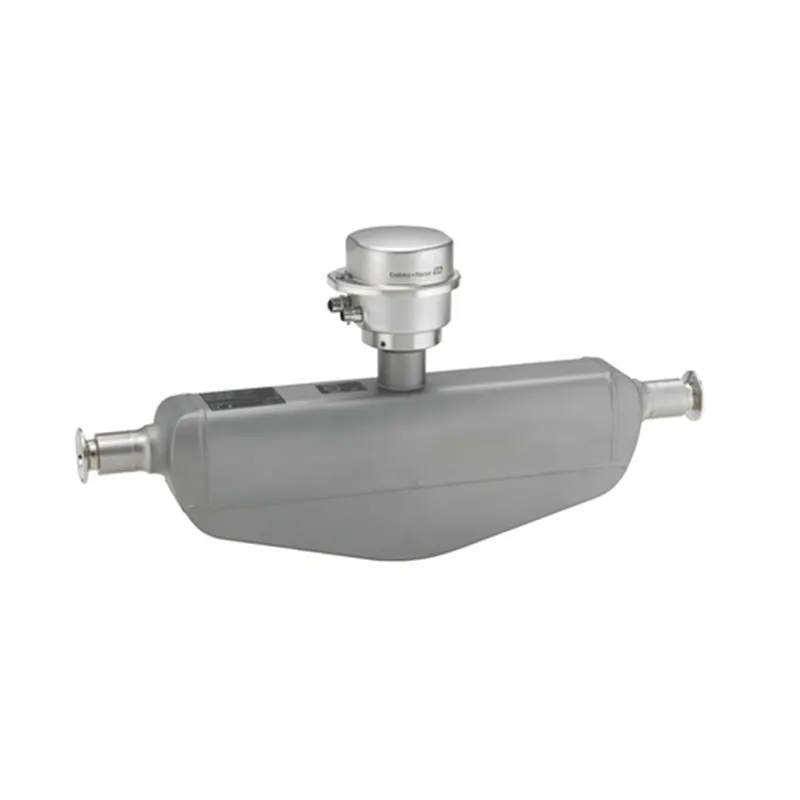

Proline Promass S 100 Coriolis flowmeter | Endress Hauser E+H

Easy-to-clean flowmeter with self-drainable single-tube system and an ultra-compact transmitter

Request a Quote

Flow measurement

Измерительные приборы уровня

Анализаторы жидкостей

Измерительные приборы температуры

Измерительные приборы давления

System products

Комплектующие для автоматизации

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min)
Medium temperature range –50 to +150 °C (–58 to +302 °F)
Max. process pressure PN 40, Class 150, 20K
Wetted materials Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)

Field of application

Promass S is at the forefront in hygienic design – Endress+Hauser’s industry-optimized measurement solution meets all the hygienic requirements for installation in the Food and Beverage industry. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications where space is a premium, Promass S 100 will be the preferred choice for system integrators, skid builders and equipment manufacturer.

Benefits

Reduced installation costs – fully self-drainable tube design enables compact horizontal mounting

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on smallest footprint
Time-saving local operation without additional software and hardware – integrated web server

Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronic Promass/Cubemass 100	Electronic	30	XPD0005-
2	Display module, 4-wire, 100	Display	50	XPD0023-
3	Kit Ex-i barrier	Electronic (periphery)	47	71185785
4	Kit connection terminal for Ex-i barrier	Terminals	45	71185787
5	Kit T-DAT, 100/300/400/500	Memory	39	71185788
6	Kit cover, compact, Alu	Cover	21	71185789
7	Kit cover, compact, stainless 1.4301	Cover	21	71185790
8	Kit cover,ultra compact,stainless 1.4301	Cover	21	71185793
9	Kit cover, sight glass, compact, Alu	Cover	20	71266334
10	Kit cover, sight glass, compact, 1.4301	Cover	20	71266335
11	Kit cover,sight glass,ultra comp.,1.4301	Cover	20	71266337
12	Kit housing gaskets, compact, Alu	Sealing	70	71185795
13	Kit housing gaskets, compact, stainless	Sealing	70	71185797
14	Kit hous.gaskets,ultra compact,stainless	Sealing	70	71185799
15	Kit 10 cable glands M20x1.5 Ex	Adapter housing/cable entry	15	50098036
16	Kit 2 cable glands M20x1.5 INOX Ex	Adapter housing/cable entry	15	71069285
17	Kit 10 ext. M20x1.5/G 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098041
18	Kit 2 cable glands G1/2″ INOX Ex	Adapter housing/cable entry	15	71185802
19	Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098042
20	Kit 2 cable glands NPT1/2″ INOX Ex	Adapter housing/cable entry	15	71185800
21	Kit securing clamp, screw	Housing/housing accessories	12	71276494
22	Spare RFID TAG	further parts		XPRFID-
23	Spare IEC TAG	further parts		XPSPEC-
24	Promass sensor, heating jacket, DK8003			DK8003-
