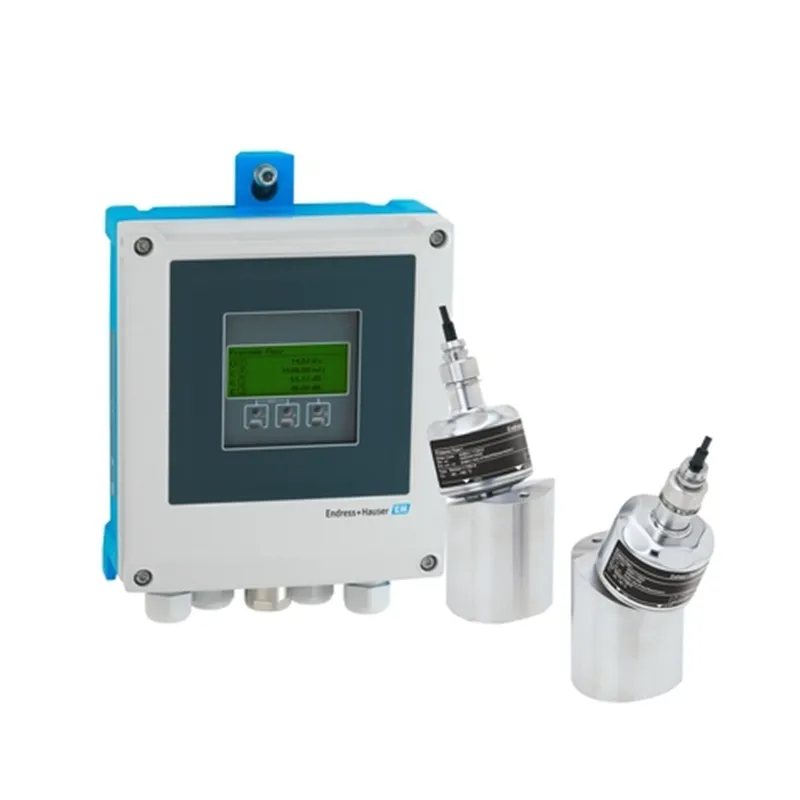

Proline Prosonic Flow I 400 ultrasonic flowmeter | Endress Hauser E+H

Insertion flowmeter with Heartbeat Technology and web server for the water and wastewater industry

Request a Quote

Flow measurement

Измерительные приборы уровня

Анализаторы жидкостей

Измерительные приборы температуры

Измерительные приборы давления

System products

Комплектующие для автоматизации

Specs at a glance

Max. measurement error Volume flow: ±2% o.r. above DN200
Measuring range 0 to 15 m/s (0 to 50 ft/s)
Medium temperature range –40 to +80 °C (–40 to +176 °F)
Max. process pressure N/A
Wetted materials Insertion system: Sensor holder 1.4301 (304), 1.4404 (316L) Sensor housing 1.4301 (304), 1.4404 (316L)

Field of application

Prosonic Flow I 400 combines insertion sensor technology with the benefits of our Proline 400 transmitters, such as Heartbeat Technology for safe process monitoring and web server access for easy installation and operation. Welded directly into the pipe wall, Prosonic Flow I 400 is especially suitable for large pipelines such as water distribution lines and projects where a fixed device installation is necessary.

Benefits

Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 4000/160″)

Long-term stable signal – maintenance-free direct installation of the sensor into the medium

Process transparency – diagnostic capability
Safe operation – no need to open the device due to display with touch control, background lighting

Full remote access – web server
Integrated diagnostics, verification and monitoring – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronics Prosonic Flow 400	Electronic	30	XPD0092-
2	Electronics Prosonic Flow 400	Electronic	30	XPD0092-
3	Display module, 4-wire, 400	Display	50	XPD0017-
4	Kit connection terminals, 400	Terminal module	45	71228789
5	Set Anschlusspr.+S-DAT,Prosonic 400, A1	Memory	40	71540053
6	Kit connec.board+S-DAT,Prosonic 400, A2	Memory	40	71634893
7	Kit T-DAT, 100/300/400/500	Memory	39	71185788
8	Kit cover, polycarbonate	Cover	20	71408508
9	Kit cover, alu, 400, 500 digital	Cover	20	71384170
10	Kit 10 cover seals, polycarbonate	Sealing	25	71278077
11	Kit 10 cover seals, alu, 400,500 digital	Sealing	25	71278078
12	Installation set, Prosonic Flow I 400	further parts		DK9016-
13	Spare RFID TAG	further parts		XPRFID-
14	Spare IEC TAG	further parts		XPSPEC-
15	Kit display protection, 400, 500 digital		82	71228792
16	Kit weather prot.cover, 400/800/500 dig.			71343504
17	Pipe mounting kit, 400/800/500 digital			71346427
18	Kit wireless antenna extended range			71351317
19	Transmitter Prosonic Flow 400, 9X4BXX			9X4BXX-
20	Sensor set, Prosonic Flow 400/800			DK9018-
21	Sensor holder set, Prosonic Flow			DK9014-
22	Sensor cable set, Prosonic Flow 400/800			DK9017-
23	Conduit adapter set, Prosonic Flow			DK9003-
