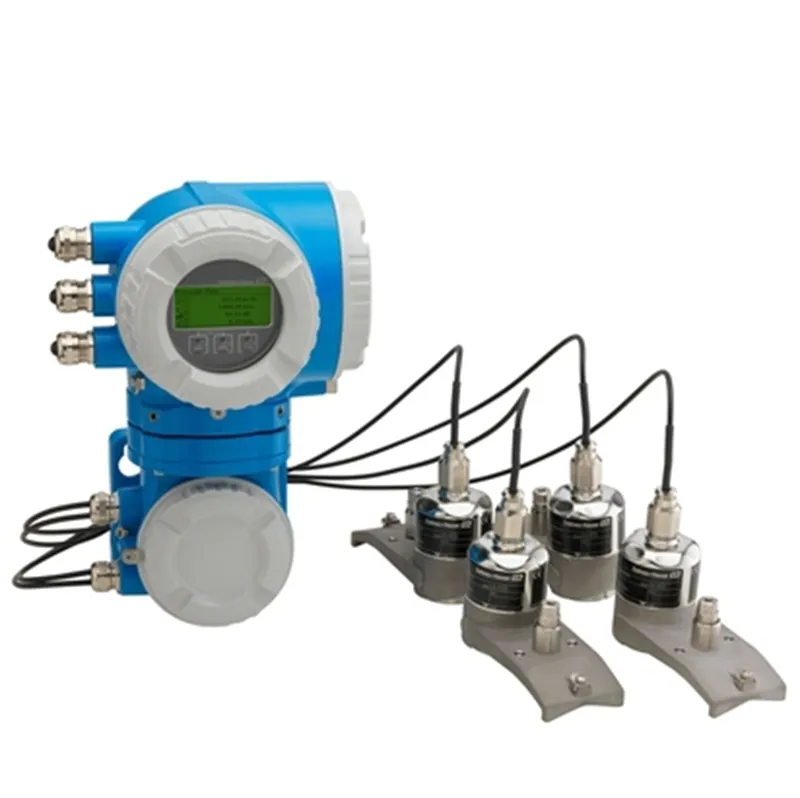

Proline Prosonic Flow P 500 ultrasonic clamp-on flowmeter | Endress Hauser E+H

Reliable, flexible, zero maintenance – noninvasive flow measurement, consistently accurate, even under challenging conditions

Request a Quote

Flow measurement

Измерительные приборы уровня

Анализаторы жидкостей

Измерительные приборы температуры

Измерительные приборы давления

System products

Комплектующие для автоматизации

Specs at a glance

Max. measurement error Volume flow: ±3% o.r. for DN 15 ±2% o.r. for DN 25 to DN 200 ±2% o.r. above DN 200

Measuring range 0 to 15 m/s (0 to 50 ft/s)
Medium temperature range DN 15 to 65 (½to 2½”): –40 to +150°C (–40 +302 °F) DN 50 to 4000 (2 to 160″): –40 to +170°C (–40 to +338 °F) DN 50 to 600 (2″ to 24″): 150°C to 550°C (+302 to +1022 °F)

Max. process pressure N/A

Field of application

Prosonic Flow P 500 is the ultrasonic clamp-on flowmeter of choice for safe and maintenance-free measurement of conductive and non-conductive liquids, even in challenging applications. It measures flow noninvasively and bidirectionally, independent of pressure, density and conductivity, and without process interruption. FlowDC makes mounting as flexible as never before. The specified accuracy is maintained at an inlet run of only 2 x DN, even in the case of disturbed flow profiles.

Benefits

Flexible mounting – FlowDC reduces inlet runs to a minimum
High safety standards – Prosonic Flow P 500 is developed according to IEC 61508 functional safety requirements and holds international approvals for hazardous area, Zone 1 and Class I, Division 1

Reliable measurement performance – proven sensors in combination with maintenance-free mounting system deliver long-term stable signals, also in high-temperature applications (≤550 °C/1022 °F)

User-friendly operation – the web server offers full remote access, while the device’s touch display offers convenient on-site interaction

Transparent process insights – Heartbeat Technology with its integrated diagnostics, verification and monitoring functions enable compliance and process safety at all times

Low capital investment – cost-effectiveness increases with the pipe diameter (up to DN 4000/160″)

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	ISEM, Prosonic Flow P 500, nEx	Electronic	33	XPD0090-
2	ISEM, Prosonic Flow P 500, Ex, Z2	Electronic	33	XPD0091-
3	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
4	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
5	Display module, 300/500/DKX001	Display	50	XPD0031-
6	Kit power supply, AC 100…240V, Ex	Power supply	31	71510202
7	Kit power supply, DC 24V, Ex	Power supply	31	71510204
8	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71510205
9	Kit T-DAT, 100/300/400/500	Memory	39	71185788
10	Kit module cartridge, 300/500, Ex	Electronic	37	71323010
11	Kit module cartridge, 300/500, Non-haz	Electronic	37	71323011
12	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71459751
13	Kit conn.terminal option A,300/500,N-haz	Terminal module	45	71323073
14	Kit conn.terminal option C,300/500,N-haz	Terminal module	45	71327818
15	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
16	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
17	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
18	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
19	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
20	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
21	Kit cover, sight glass, cast, Ex	Cover	20	71323024
22	Kit cover, sight glass, cast, -50oC, Ex	Cover	20	71323025
23	Kit cover gasket, sight glass/blind	Sealing	70	71323026
24	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
25	Kit cover, electr.compart., Alu, Non-haz	Cover	22	71323028
26	Kit cover,electronic, Alu,- 50oC,Non-haz	Cover	22	71323029
27	Kit cover gasket,electr.compart.,Non-haz	Sealing	74	71323030
28	Kit cover gasket,electr., -50oC, Non-haz	Sealing	74	71323031
29	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
30	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
31	Kit cover, electronic compart., cast, Ex	Cover	22	71323034
32	Kit cover, electr.compart.,cast,-50oC,Ex	Cover	22	71323035
33	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
34	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
35	Kit cover, wall mount, Alu, Ex	Cover	23	71323038
36	Kit cover, wall mount, Alu, -50oC, Ex	Cover	23	71323039
37	Kit cover, wall mount, cast, Ex	Cover	23	71323040
38	Kit cover, wall mount, cast, -50oC, Ex	Cover	23	71323041
39	Kit cover gasket, wall mount, Ex	Sealing	75	71323042
40	Kit cover gasket, wall mount, -50oC, Ex	Sealing	75	71323043
41	Kit interface gaskets, 300/500	Sealing	71	71323071
42	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
43	Kit protect.cover option A,300/500,N-haz	Miscellaneous	11	71368488
44	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
45	Installation set, Prosonic Flow	further parts		DK9015-
46	Coupling medium, Prosonic Flow	further parts		DK9CM-
47	Spare RFID TAG	further parts		XPRFID-
48	Spare IEC TAG	further parts		XPSPEC-
49	Kit weather protection cover, 300/500		87	71343505
50	Pipe Mounting kit,Transmitter 10/500			71346428
51	Kit wireless antenna extended range			71351317
52	Transmitter Prosonic Flow 500, 9X5BXX			9X5BXX-
53	Sensor set, Prosonic Flow 500			DK9013-
54	Sensor holder set, Prosonic Flow			DK9014-
55	Sensor cable set, Prosonic Flow 500			DK9012-
56	Conduit adapter set, Prosonic Flow			DK9003-
