单/双通道变送器 Liquiline CM442R | Endress Hauser E+H

Compact multiparameter DIN-rail and cabinet device for all industries

一目了然的规格

Input 1 to 2x Memosens digital input 2x 0/4 to 20mA Input optional 2x Digital input optional
Input 1 to 2x Memosens digital input 2x 0/4 to 20mA Input optional 2x Digital input optional
Output / communication 2 to 8x 0/4 to 20 mA current outputs Alarmrelay, 2x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Ingress protection Transmitter: IP20 Optional Display: IP66

应用领域

Liquiline CM442R allows you to connect up to 2 Memosens sensors of your choice from over 12 measurement parameters. With its extremely compact design, it fits into any cabinet – and even offers inputs, outputs, controllers, and math modules, e.g. for cleaning control. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs

好处

Saves space, saves money: Extremely small footprint, saves space in cabinets – perfect for skids.

High-speed installation: No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.

Simple and safe commissioning: Saving configuration on SD card enables fast set-up on duplicate installations.

Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.

Process control from a distance: Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser – even via Smartphone.

Higher availability, lower costs: Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

Drive connectivity: Liquiline Edge Module CYY7 transfers process data to Netilion, independently of the fieldbus. This allows remote overview and the use of IIoT services. It’s available in new products or as upgrade to installed Liquiline platforms.

备件及配件

	Title	类别	订单代码
1	Kit: basic module BASE-L	其他零件	71100607

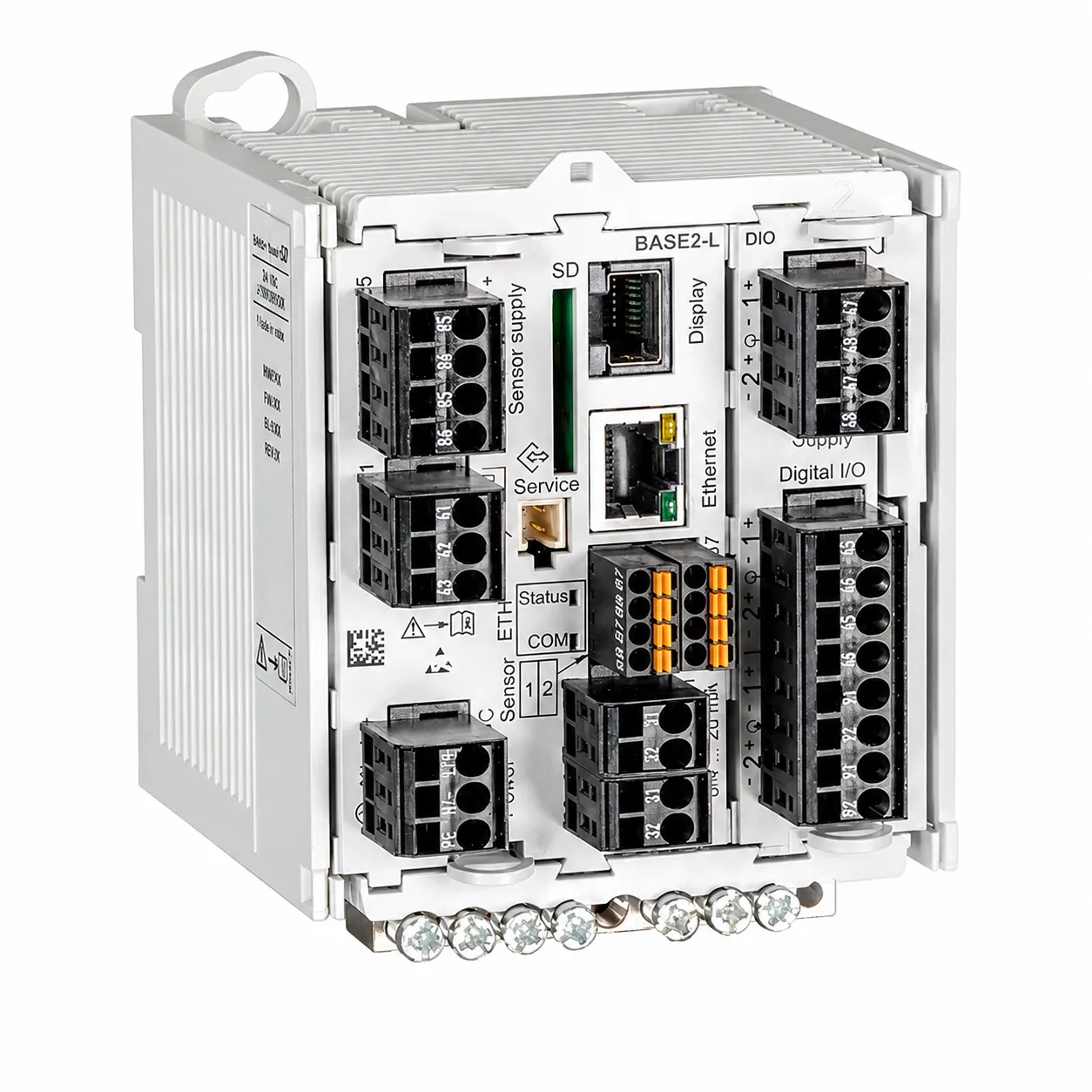

2	Kit: basic module BASE2-L	其他零件	71431300
3	Kit CM442: basic module BASE-H	其他零件	71100611
4	Kit CM442: base module BASE2-H	其他零件	71431301
5	Kit: 1x set of terminals basic module	其他零件	71107452
6	Kit: module ETH	其他零件	71272410
7	Kit : module AOR	其他零件	71111053
8	Kit: 1x set of terminals module AOR	其他零件	71107453
9	Kit: module 2R	其他零件	71125375
10	Kit: module 4R	其他零件	71125376
11	Kit: 1x set of terminals module 4R	其他零件	71155581
12	Kit: module 2AO	其他零件	71135632
13	Kit: 1x set of terminals module 4AO	其他零件	71155582
14	Kit: module 2AI	其他零件	71135639
15	Kit: 1x set of terminals module 2xAI,485	其他零件	71155583
16	Kit: module DIO	其他零件	71135638
17	Kit: 1x set of terminals module DIO	其他零件	71219784
18	Kit: module 485	其他零件	71135634
19	Kit Module 485DP	其他零件	71575177
20	Kit Module 485MB	其他零件	71575178
21	Kit CM442R Enclosure for cabinet mount	其他零件	71222273
22	Kit CM44xR Covers for touch protection	其他零件	71222282

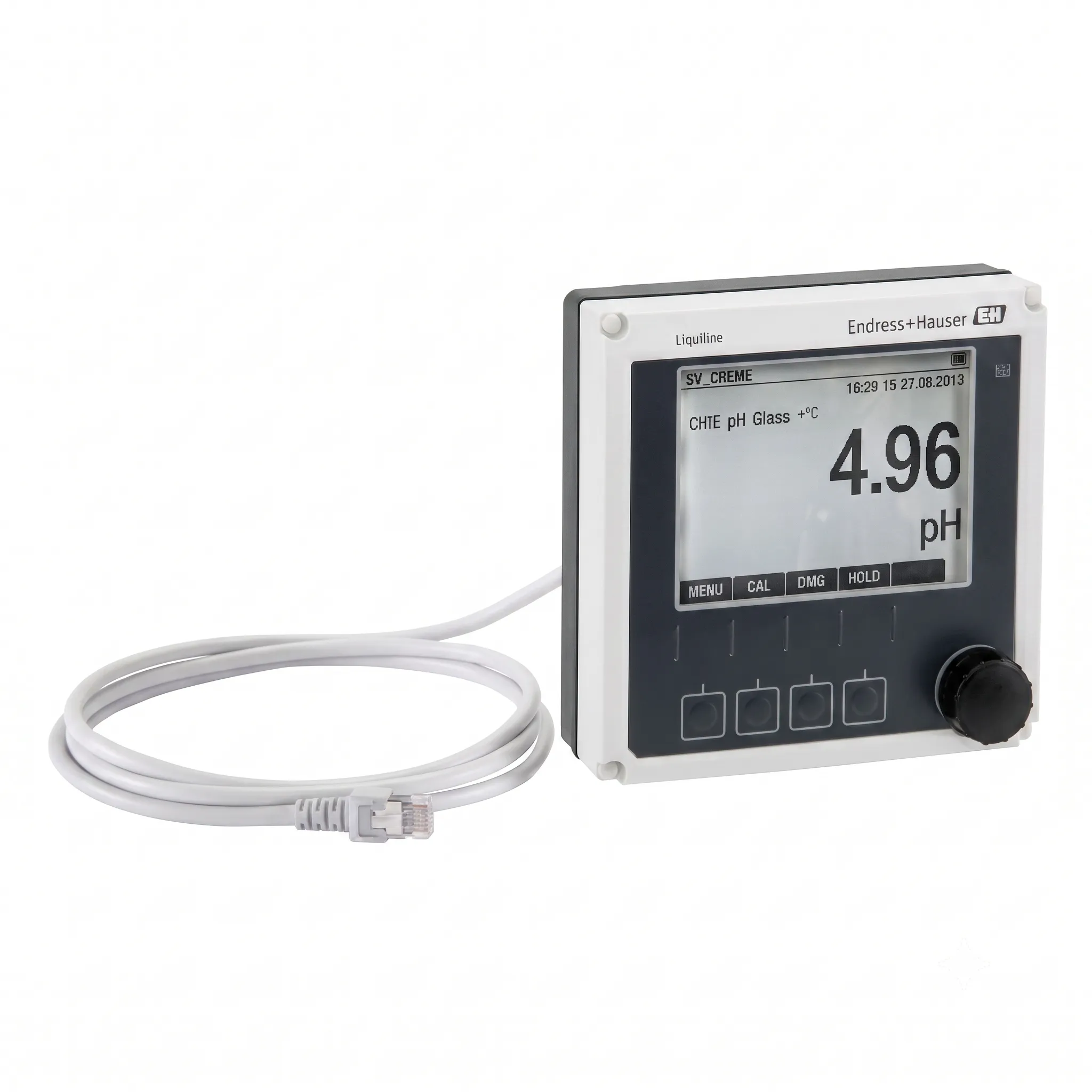

23	Kit: external graph.display, cabinet	其他零件	71185295
24	Kit: external graph. display, portable	其他零件	71185296
25	Kit CM44xR Servicedisplay: Cable+Grommet	其他零件	71240608
26	Kit module 2DS Ex-i	其他零件	71477718
27	Kit: set 5end and blind cover	其他零件	71107455
28	备用RFID标签	其他零件	XPRFID-
29	Spare IEC TAG	其他零件	XPSPEC-
30	Kit Liquiline Edge Module CYY7	其他零件	CYY7-
31	IEC61406 Stainl.steel TAG	其他零件	71520947
32	IEC61406 Stainl.steel+NFC TAG	其他零件	71520949
33	IEC61406 Stainl.steel, stainl.steel TAG	其他零件	71520950
34	IEC61406 Stainl.steel+NFC, stainl.steel	其他零件	71520951
35	Kit : module AOR	—	71111053
36	Kit: module 2R	—	71125375
37	Kit: module 4R	—	71125376
38	Kit: module 2AO	—	71135632
39	Kit: module 2AI	—	71135639
40	Kit: module DIO	—	71135638
41	Kit: module 485	—	71135634
42	Kit Module 485DP	—	71575177
43	Kit Module 485MB	—	71575178
44	Upgrade Kit: Modul 485 DP + Profibus DP	—	71140888
45	Upgrade Kit: Modul 485 MB + Modbus RS485	—	71140889
46	Upgrade Kit: Modul 485 + Modbus TCP	—	71140890
47	Upgrade Kit: Modul 485 + EtherNet/IP	—	71219868
48	Upgrade Kit: Modul ETH + Modbus TCP	—	71279809
49	Upgrade Kit: Modul ETH + EtherNet/IP	—	71279812
50	Upgrade code: HART	—	71128428
51	Upgradecode: 2 digital sensor inputs	—	71114663
52	Upgrade code: Profibus DP module 485	—	71135635
53	Upgrade code:Modbus RS 485 module 485	—	71135636
54	Upgrade code: Modbus TCP f.module 485	—	71135637
55	Upgrade code: Feedforward control	—	71211288
56	Upgrade code: Measuring Range Switch	—	71211289
57	Upgrade code:EtherNet/IP f.module 485	—	71219871
58	Upgrade code Modbus TCP f.module ETH	—	71279813
59	Upgrade code EtherNet/IP f module ETH	—	71279830
60	Upgrade code: Chemoclean Plus	—	71239104
61	Upgradecode Heartbeat Verifi.+Monitoring	—	71367524
62	Upgradecode Mathematic	—	71367541
63	Upgr.code:EtherNet/IP+Webserver BASE2	—	71449914
64	Upgr.code Modbus TCP+Webserver BASE2	—	71449915
65	Upgrade code: Webserver for BASE2	—	71449918
66	Upgr.code: PROFIN.+Webserver f. BASE2	—	71449901
67	SD-Card, 1GB, Industrial Flash Drive	—	71110815
68	SD-Card with Firmware, 1GB	—	71127100
69	Field Data Manager, Software,Analysis	—	71129799
70	Kit Liquiline Edge Module CYY7	—	CYY7-
71	Activation code EtherNet/IP + Webserver	—	XPC0018-
72	Activation code Modbus TCP + Webserver	—	XPC0020-
73	Activation code Webserver for BASE2	—	XPC0021-
74	Activation code PROFINET+Webserver BASE2	—	XPC0022-
75	Activation code HART	—	XPC0023-
76	Activation code PROFIBUS DP 485 modules	—	XPC0024-
77	Activation code ModbusRS485 485 modules	—	XPC0025-
78	Activation code Liquiline inputs/outputs	—	XPC0026-
79	Activation codes additional functions	—	XPC0027-
