Flow assembly CYA680 | Endress Hauser E+H

Assembly for the Life Sciences and Chemical industries

一目了然的规格

Process temperature max.130°C 266°F
Process pressure Stainless steel: max. 16 bar; PVDF: max 4 bar

应用领域

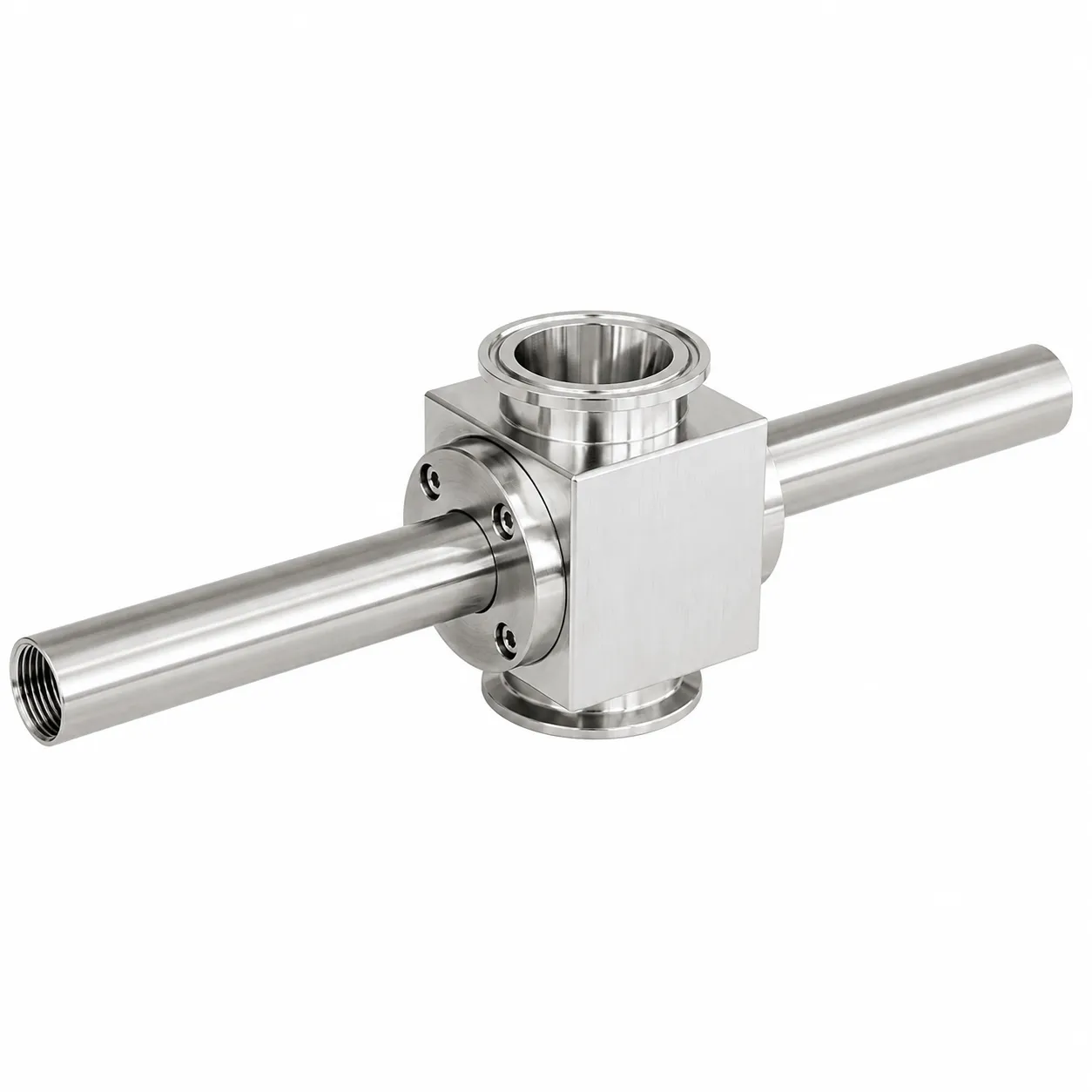

The CYA680 flow assembly is the simple solution for pH and conductivity measurement in pipelines of hygienic and sterile applications. It is designed for inline cleaning and sterilization and perfectly suited for small pipe diameters, offering maximum safety for your high-quality products. For perfect performance in aggressive and corrosive media, CYA680 is available as PVDF version.

好处

Optimized product yield thanks to fast measured values in low volume
High product safety: Assembly is suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Compliant with strict Life Sciences regulations: Certified biocompatibility according to USP class VI, FDA-listed seals and hygienic electropolished surface Ra=0.38 µm (15 µinch)
Suitable even for aggressive and corrosive media with PVDF version

备件及配件

	描述	类别	订单代码
1	KIT CYA680 O-Rings set (KALREZ )	其他零件	71321494
2	KIT CYA680 O-Rings set (VITON )	其他零件	71321495
3	KIT CYA680 O-Rings set (EPDM )	其他零件	71321496
4	KIT CYA680 pH sensor adapter,120mm,316L	其他零件	71321499
5	KIT CYA680 pH sensor adapter,120mm, PVDF	其他零件	71323973
6	KIT CYA680 cd sensor adapter, 120mm,316L	其他零件	71361303
7	KIT CYA680 Dummy sensor 120 mm, 316L		71321497
8	KIT CYA680 Dummy sensor 120 mm, PVDF		71321498
