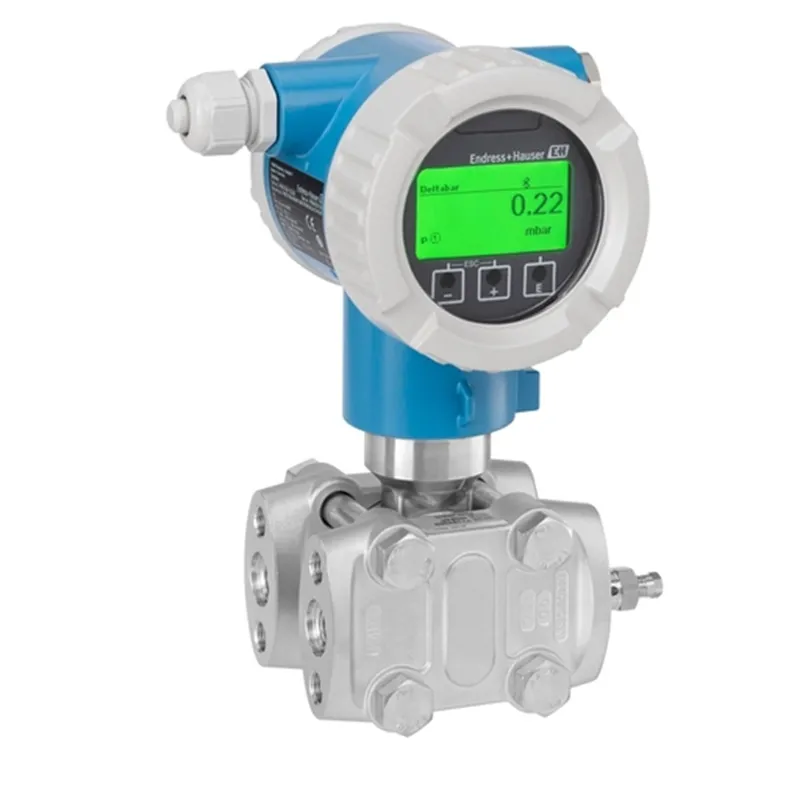

Deltabar PMD75B - differential pressure transmitter | Endress Hauser E+H

Deltabar PMD75B – differential pressure transmitter | Endress Hauser E+H

Smart pressure transmitter which detects process anomalies like plugged impulse lines

请求报价

一目了然的规格

  • Accuracy Standard: up to 0.05 % Platinum: up to 0.035 %
  • Max. measurement error Standard: up to 0.05 % Platinum: up to 0.035 %
  • Measuring range 10 mbar…250 bar (0.15 psi…3750 psi)
  • Process temperature -40°C…+110°C (-40°F…+230°F)
  • Pressure measuring range 10 mbar…250 bar (0.15 psi…3750 psi)

应用领域

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability. The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device. Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.

好处

  • With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability.
  • Simple indication of device status – display changes from green to red when diagnostic messages occur
  • Reduce systematic failures – error free SIL commissioning and instrument guided proof testing
  • Control the device wireless in hard to reach process areas with the SmartBlue App

备件及配件

描述类别Drawing No.订单代码
1Blind plug, M20, 316L, o-ring EPDMHousing/housing accessories1471487198
2Blind plug, M20, Alu, o-ring EPDMHousing/housing accessories1471487199
3Blind plug M20, 316L, Ex dHousing/housing accessories1471679712
4Blind plug M20, Alu, Ex dHousing/housing accessories1471679714
5Blind plug, NPT1/2, AluHousing/housing accessories1471487201
6Blind plug, NPT1/2, 316LHousing/housing accessories1471487203
7Blind plug NPT1/2, 316L, Ex dHousing/housing accessories1471679715
8Blind plug NPT1/2, Alu, Ex dHousing/housing accessories1471679718
9Cable gland M20, plasticHousing/housing accessories1571435135
10Cable gland blue M20, plasticHousing/housing accessories1571701449
11Cable gland M20, brass nickel platedHousing/housing accessories1571435136
12Cable gland M20, 316LHousing/housing accessories1571435137
13Adapter set M20x1.5-G1/2, AluHousing/housing accessories1571440660
14Adapter set M20x1.5-G1/2, 316LHousing/housing accessories1571440667
15M12 plug, 316L, HART, PA, housing sideHousing/housing accessories1571435138
16M12 plug, 316L, APL, housing sideHousing/housing accessories1571435139
17HAN7D plug, 90deg, housing sideHousing/housing accessories1571439098
18Ground terminal Housing L+PHousing/housing accessories1871474251
19Cover Alu, closedCover2071435116
20Cover Alu, closed, Ex dCover2071435118
21Cover 316L, closed, Ex dCover2071435122
22Cover red Alu, closed, Ex dCover2071439086
23Cover 316L, sight glass, Ex dCover2071435123
24Cover Alu, sight glassCover2071439089
25Cover Alu, sight glass, Ex dCover2071439090
26Cover red Alu, sight glass, Ex dCover2071439088
27Cover Alu, connection compartment, Ex dCover2571435121
28Cover 316L, connect. compartment, Ex dCover2571435128
29Cover Alu, connection compartmentCover2571439085
30Cover red Alu, connect. compartment,Ex dCover2571439087
31Cover sealing HNBR, -40oC, 5 piecesSealing2171435132
32Cover sealing FVMQ, -60oC, 5 piecesSealing2171435134
33Locking screw,cover connect. compartmentHousing/housing accessories2471671687
34Locking screw,cover electr. compartmentHousing/housing accessories2471671700
35Locking screw, cover sight glassHousing/housing accessories2471671706
36Electronics PMx6xB / PMx7xBElectronic30XPP0018-
37Terminal unit TU100B, Barrel, 1CHTerminal module3571435766
38Terminal unit TU101B, Barrel, 1CH, OVPTerminal module3571435767
39Terminal unit TU100A, L-form, 1CHTerminal module3571458631
40Terminal unit TU101A, L-form, 1CH, OVPTerminal module3571458633
41Terminal unit TU100C, Barrel, 1CH, FSTerminal module3571666147
42Terminal unit TU101C, Barrel, 1CH,FS,OVPTerminal module3571666148
43Segment display VU100ADisplay4071435772
44Segment display + Bluetooth VU101ADisplay4071435779
45Graphical display VU112Display4071435775
46Graphical display + Bluetooth VU113Display4071435781
47Sensor Deltabar PMD75BSensoric50XPP0010-
48Sealing ring,coplanar,316L,PTFE/BN,2pcs.Sealing5171498077
49O-Ring,coplanar,21,82×3,53,FKM90,2pcs.Sealing5171504262
50Flange PMD75 SD5 7/16 SS, 2 pcs.Connection (process)5552020668
51Flange PMD75 SD5 7/16 SS sv, 2 pcs.Connection (process)5552020672
52Flange PMDx5B/75 SD5 M10 NPT1/4 SS, 2pcsConnection (process)5552020675
53Flange PMDx5B/75 SD5 M12 NPT1/4 SS, 2pcsConnection (process)5552020676
54Flange PMD75 SD5 RC1/4 SS, 2 pcs.Connection (process)5552020680
55Flange PMD75 SD5 RC1/4 SS sv, 2 pcs.Connection (process)5552020682
56Mounting set flange PMD75/75B, PN420Fixing5652020693
57Mounting set flange PMD75/75B PN160, SSFixing5652020758
58O-ring 44.0×3.0 FKM 90, 4 piecesConnection (process)5752020732
59O-ring 44.0×3.0 FKM 70, 4 piecesConnection (process)5752020733
60O-ring 44.0×3.0 EPDM 70, 4 piecesConnection (process)5771343401
61Sealing ring, 43.1×49.4×2.7,VA/PTFE,2pcsConnection (process)5771498070
62O-Ring 44,0×3,0,FKM 80,O2,2 pcs.Connection (process)5771498074
63O-Ring , 44.2 x 3.0 FFKM 75, 2 pcs.Connection (process)5771498076
64Locking screw (2x), NPT1/4, AlloyPlug / blind plug6371485110
65Locking screw (2x), NPT1/4, 316LPlug / blind plug6371485122
66Vent valve 316L, 1/4 NPT, 2 pc.Plug / blind plug6371487312
67Vent valve 316L, R1/4 JIS, 2 pc.Plug / blind plug6371489164
68Air vent valve(1x)NPT 1/4-18, AlloyPlug / blind plug6371518090
69Protective clamp, maritime env., 4pcs.其他零件71596905
70Cable PE,80inch, sep. housing PMXXXBCable/cable accessories7071551044
71Cable PE,200inch, sep. housing PMXXXBCable/cable accessories7071551080
72Cable PE,400inch, sep. housing PMXXXBCable/cable accessories7071551083
73Cable FEP,200inch, sep. housing PMXXXBCable/cable accessories7071551084
74Cable PE, 600inch, sep. housing PMXXXBCable/cable accessories7071637914
75备用RFID标签其他零件XPRFID-
76Spare IEC TAG其他零件XPSPEC-
77Screw set UNF7/16×1-3/4″, VA, Viton其他零件71285305
78Screw set UNF7/16×1-3/4″, VA, PTFE其他零件71285307
79Screw set UNF7/16×1/2″,VA,4pcs.其他零件943153-0031
80Screw set M10x14,VA,4pcs.其他零件943153-0011
81Screw set M12x16,VA,4pcs.其他零件943153-0021
82M12-female plug connector, cable side52006263
83HAN7D socket, cable side71474958
84Manifold / Block&Bleed valve, DA63MDA63M-
85Cutting ring screw (Ermeto 12S)71773235
86Gasket 17.7×24.0x2.7, PTFE, 4 pieces52015813
87Gasket 20.0×2.65, S-FKM 90, 4 pieces52019117
88Mountingset for remote sensor71102216
89Mounting bracket standard, 7/16-20 UNF71381907
90Mounting bracket standard, M1071435883
91Mounting bracket standard, M1271435884
92Mount.bracket 3/5 valve, stainless steel71372499
93Weather protection cover, plastic, XW11171438291
94Weather protection cover, 316L, XW11271438303
95Calibration adapter 5/16″-24 UNF71557954
