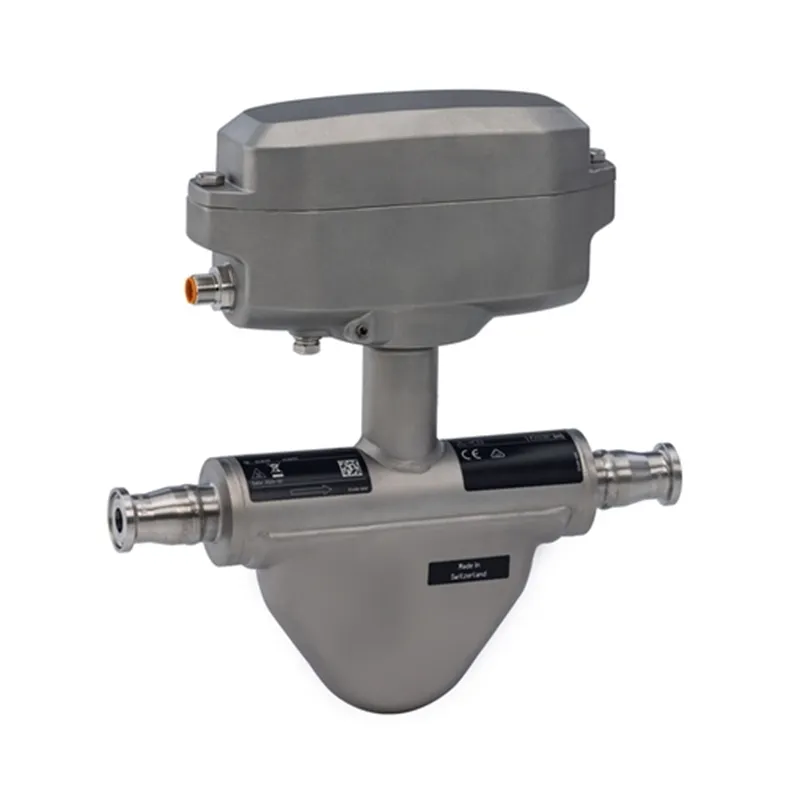

Dosimass Coriolis flowmeter | Endress Hauser E+H

Mass flowmeter with hygienic design, highest repeatability and a compact transmitter

一目了然的规格

Max. measurement error Mass flow (liquid): ±0.15 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 45 000 kg/h (0 to 1654 lb/min)
Medium temperature range –40 to +130 °C (–40 to +266 °F) 150 °C allowed for 1 h

Max. process pressure PN 40
Wetted materials Measuring tube: 1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈”) 1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½”) Process connection 1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈”) 1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½”)

应用领域

Dosimass is designed for filling and bottling applications in Food & Beverage and Life Sciences. In applications with limited space, Dosimass is the preferred choice for system integrators, skid builders and equipment manufacturers. Dosimass measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability, independent of physical fluid properties such as viscosity or density. This enables the measurement of liquids with the most diverse properties.

好处

High and stable filling performance – high measuring accuracy and repeatability in shortest filling times

IO-Link allows real-time digital communication for easier commissioning and continuous data availability

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Compact design for optimized machine footprint
Integrated batching functionality – filling process management solved by the flowmeter

Global compliance with industry standards – EHEDG, 3-A, FCM, cGMP
SIP and CIP cleanable

备件及配件

	描述	类别	Drawing No.	订单代码
1	Kit 10 cover gaskets, Dosimass	其他零件	2	71635598
2	Commubox FXA291 (Hardware)	其他零件	3	51516983
3	Adapter FXA291 Dosimag/Dosimass packed	其他零件	4	71035809
4	Connection cable RKWTN8-56/5 P92, 5m	其他零件	7	50107895
5	Set adapter M12x1, 8->4pin 4 wire 0.2m			71703755
6	Kit Sensor holder			71392563
7	Dosimass, D8AB		1	D8AB-
