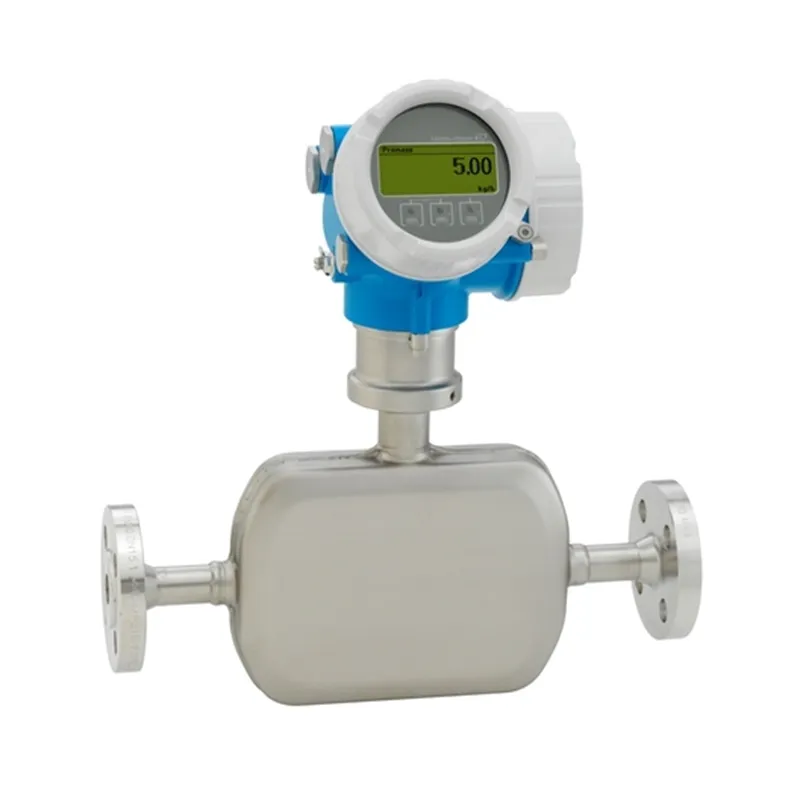

Genuine loop-powered flowmeter for accurate measurement of lowest flow rates
The compact Promass A is ideal for continuous process control in demanding applications. Its unique self-drainable single-tube system enables accurate measurement of liquids and gases at lowest flow rates and high pressure. With its cost-effective genuine loop powered technology and intrinsically safe design (Ex ia), Promass A 200 offers highest operational safety in hazardous areas. Heartbeat Technology enables safe processes.
| 描述 | 类别 | Drawing No. | 订单代码 | |
| 1 | Electronic Promass 200 / TB2 | Electronic | 30 | XPD0001- |
| 2 | I/O module Flow, 2-wr. 2×4-20mA,HART, Ex | I/O module | 34 | 71108602 |
| 3 | I/O module, 2-wire, 4-20mA, HART, Ex | I/O module | 34 | XPD0015- |
| 4 | I/O module, 2-wire, 4-20mA,HART, PFS, Ex | I/O module | 34 | XPD0016- |
| 5 | I/O module, 2-wire, PA/FF, PFS, Ex, V2 | I/O module | 34 | 71164940 |
| 6 | Overvoltage protection (OVP10),1-Channel | 其他零件 | 71128617 | |
| 7 | Overvoltage protection (OVP20),2-Channel | 其他零件 | 71128619 | |
| 8 | Display module, SD02, push buttons | Display | 40 | XPD0024- |
| 9 | Display module, SD03, Touch Control | Display | 40 | XPD0025- |
| 10 | Transmitter electronics FHX50 | 其他零件 | 71197334 | |
| 11 | M12-female plug connector, VA | 其他零件 | 71296840 | |
| 12 | Cable FHX50, FHX50B, 5m | 其他零件 | 71206552 | |
| 13 | Cable FHX50, FHX50B, 10m | 其他零件 | 71206554 | |
| 14 | Cable FHX50, FHX50B, 20m | 其他零件 | 71206555 | |
| 15 | Cable FHX50, FHX50B, 30m | 其他零件 | 71206556 | |
| 16 | Terminal set 2-wire, I/O module | Terminals | 37 | 71110280 |
| 17 | Cover GT18 316L, HNBR | Cover | 20 | 71110281 |
| 18 | Cover GT18 316L, sight glass, HNBR | Cover | 20 | 71110282 |
| 19 | Cover GT18 316L, terminal Ex, HNBR | Cover | 25 | 71110291 |
| 20 | Cover GT18 316L, terminal Ex d, HNBR | Cover | 25 | 71110284 |
| 21 | Cover GT18 316L, Terminal, OVP, HNBR | Cover | 25 | 71185516 |
| 22 | Cover GT20 Alu, HNBR | Cover | 20 | 71110299 |
| 23 | Cover GT20 Alu, sight glass, HNBR | Cover | 20 | 71110297 |
| 24 | Cover GT20 Alu, Terminal Ex, HNBR | Cover | 25 | 71110301 |
| 25 | Cover GT20 Alu, Terminal Ex d, HNBR | Cover | 25 | 71110302 |
| 26 | Cover GT20 Alu, Terminal, OVP, HNBR | Cover | 25 | 71185517 |
| 27 | Kit 10 cable glands M20x1,5 grey | Connection (electrical) | 15 | 50103658 |
| 28 | Kit 10 cable glands M20x1.5 Ex | Connection (electrical) | 15 | 50098036 |
| 29 | Kit 2 cable glands M20x1.5 INOX Ex | Connection (electrical) | 15 | 71069285 |
| 30 | Kit 10 ext. M20x1.5/G 1/2″ (plug PVC) | Connection (electrical) | 15 | 50098041 |
| 31 | Kit 10 ext. M20x1,5/G 1/2″ (plug brass) | Connection (electrical) | 15 | 71115505 |
| 32 | Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC) | Connection (electrical) | 15 | 50098042 |
| 33 | Kit 10 ext. M20x1,5/NPT1/2″(plug brass) | Connection (electrical) | 15 | 71115509 |
| 34 | Kit Cable gland Profibus PA | Connection (electrical) | 15 | 50098037 |
| 35 | Kit Cable gland Found. Fieldbus | Connection (electrical) | 15 | 50094984 |
| 36 | Sealing set GT18/GT19/GT20, EPDM, HNBR | Sealing | 65 | 71110303 |
| 37 | Housing filter 316L, GT18, 1 set | Filter | 19 | 71115174 |
| 38 | Housing filter Brass/Ni GT19/20, 1 set | Filter | 19 | 71115175 |
| 39 | Set housing securing clamps | Housing/housing accessories | 17 | 71115176 |
| 40 | 备用RFID标签 | 其他零件 | XPRFID- | |
| 41 | Spare IEC TAG | 其他零件 | XPSPEC- | |
| 42 | Weather prot. cover GT18/GT19/GT20, 316L | 71162242 | ||
| 43 | Kit Sensor holder | 71392563 | ||
| 44 | Transmitter Promass 200, 8X2CXX | 8X2CXX- | ||
| 45 | Promass sensor, heating jacket, DK8003 | DK8003- |
