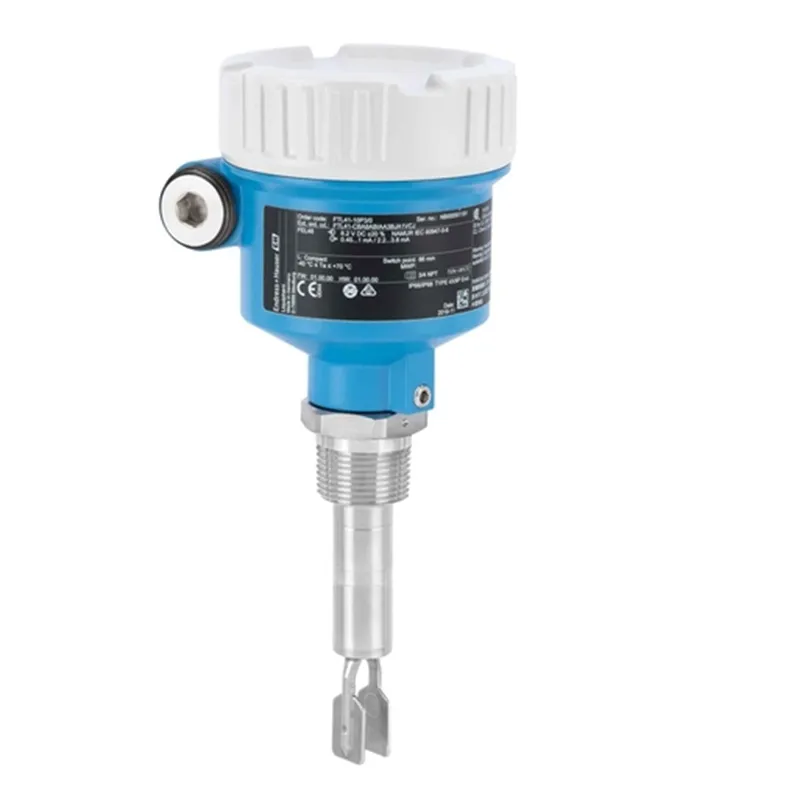

The vibronic level switch in basic applications reduces complexities in your plant
Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly. In addition there is no need of adjustment to different media.
| 描述 | 类别 | Drawing No. | 订单代码 | |
| 1 | Housing 2-wire platform Liquiphant | 其他零件 | 10 | XPF0040- |
| 2 | Electronics FEL42, PNP10-55VDC | Electronic | 30 | 71432590 |
| 3 | Electronics FEL44, relay DPDT | Electronic | 30 | 71432594 |
| 4 | Electronics FEL48 NAMUR | Electronic | 30 | 71432595 |
| 5 | Cover Alu, closed | Cover | 20 | 71435116 |
| 6 | Cover Alu, closed, Ex d | Cover | 20 | 71435118 |
| 7 | Cover plastic, closed | Cover | 20 | 71435126 |
| 8 | Cover Alu, sight glass | Cover | 20 | 71439089 |
| 9 | Cover plastic, sight glass | Cover | 20 | 71550061 |
| 10 | Cable gland M20, plastic | Screw connection | 15 | 71435135 |
| 11 | Cable gland M20, brass nickel plated | Screw connection | 15 | 71435136 |
| 12 | Adapter set M20x1.5-G1/2, Alu | Screw connection | 15 | 71440660 |
| 13 | Adapter set M20x1.5-G1/2, plastic | Screw connection | 15 | 71462833 |
| 14 | Adapter set M20x1.5-1/2″NPT, plastic | Screw connection | 15 | 71462835 |
| 15 | Ground terminal Liquiphant | 其他零件 | 18 | 71589844 |
| 16 | Ground term. plastic housing Liquiph. ES | 其他零件 | 18 | 71647970 |
| 17 | Ground term. hygiene housing Liquiph. ES | 其他零件 | 18 | 71647972 |
| 18 | Cover sealing EPDM, 5 pieces | Sealing | 21 | 71435131 |
| 19 | Cover sealing HNBR, -40oC, 5 pieces | Sealing | 21 | 71435132 |
| 20 | Locking screw,cover electr. compartment | 其他零件 | 24 | 71671700 |
| 21 | Gasket, graphite 4kt-21.5×31.5×6, 2pcs. | 其他零件 | 71078875 | |
| 22 | 备用RFID标签 | 其他零件 | XPRFID- | |
| 23 | Spare IEC TAG | 其他零件 | XPSPEC- | |
| 24 | Sliding sleeve 100bar G1, 316L | 52003663 | ||
| 25 | Sliding sleeve 100bar G1, 316L, 3.1 | 52011880 | ||
| 26 | Sliding sleeve 100bar G1-1/2, 316L | 52003665 | ||
| 27 | Sliding sleeve 100bar G1-1/2, 316L, 3.1 | 52011882 | ||
| 28 | Sliding sleeve 100bar NPT1, 316L | 52003667 | ||
| 29 | Sliding sleeve 100bar NPT1, 316L, 3.1 | 52011881 | ||
| 30 | Sliding sleeve 100bar NPT1-1/2, 316L | 52003669 | ||
| 31 | Sliding sleeve 100bar NPT1-1/2, 316L,3.1 | 52011883 | ||
| 32 | Sliding sleeve G1, 316L | 52003978 | ||
| 33 | Sliding sleeve G1, 316L, 3.1 | 52011888 | ||
| 34 | Sliding sleeve G1-1/2, 316L | 52003980 | ||
| 35 | Sliding sleeve G1-1/2, 316L, 3.1 | 52011890 | ||
| 36 | Sliding sleeve NPT1, 316L | 52003979 | ||
| 37 | Sliding sleeve NPT1, 316L, 3.1 | 52011889 | ||
| 38 | Sliding sleeve NPT1-1/2, 316L, 3.1 | 52011891 | ||
| 39 | Sliding sleeve NPT1-1/2, 316L | 52003981 | ||
| 40 | M12-female plug connec., 100deg,5m cable | 52010285 | ||
| 41 | M12-female plug connec., 90deg, 5m cable | 52024216 | ||
| 42 | Weld-in adapter G3/4, d=55, 316L | 52001052 | ||
| 43 | Weld-in adapter G3/4, d=55, 316L, 3.1 | 52011897 | ||
| 44 | Weld-in adapter G1, d=53, 316L, 3.1 | 71093129 | ||
| 45 | Weld-in adapter G1, d=53, 316L | 71258358 | ||
| 46 | Weld-in adapter G1, d=60, 316L | 52001051 | ||
| 47 | Weld-in adapter G1, d=60, 316L, 3.1 | 52011896 | ||
| 48 | Weld-in adapter G1, adjustable, 316L | 52001221 | ||
| 49 | Weld-in adapter G1, adjustable,316L, 3.1 | 52011898 | ||
| 50 | Welding dummy for weld-in adap. G1,brass | 71675410 | ||
| 51 | Welding dummy for weld-in ad. RD52,brass | 71675411 | ||
| 52 | Blind plug for weld-in adap.G1, 316L.3.1 | 71675413 | ||
| 53 | Blind plug for weld-in ad. RD52,316L,3.1 | 71675414 | ||
| 54 | O-Ring 28,17×3,53 FKM, 5 pcs | 71675402 | ||
| 55 | Profile gasket 29x36x3,7 FKM, 5 pcs | 71675408 | ||
| 56 | Weather protection cover, plastic, XW111 | 71438291 |
