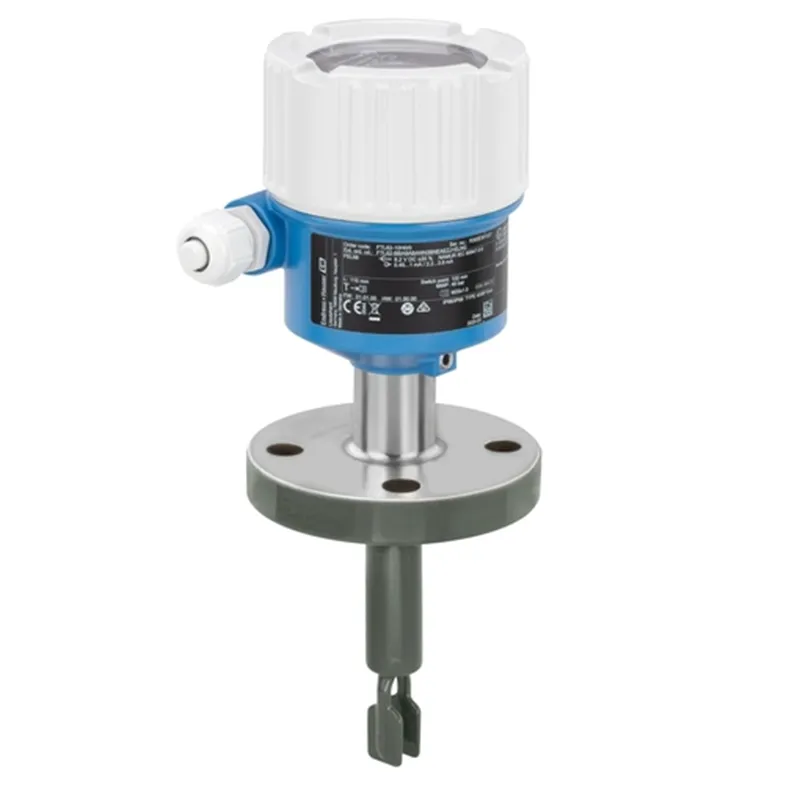

Liquiphant FTL62 – the specialist for aggressive media | Endress Hauser E+H

A level switch for aggressive and pumpable liquids

一目了然的规格

Process temperature -50 °C…+150 °C (-58 °F…+302 °F)
Process pressure / max. overpressure limit Vacuum…40 bar Vacuum…580 psi

Min. density of medium 0.5 g/cm³ (0.4 g/cm³ optional)

应用领域

Liquiphant FTL62 has a strong focus on specific applications with aggressive liquids and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in aggressive liquids and want a reliable and proven point level detection for tank overfill protection and pump dry run protection. The FTL62 is easy to use, has a digital connection and gives a real-time data at hand.

好处

Universal measuring principle for limit detection – proven vibronic technology

Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved)

Periodic proof testing is quickly and simple organized with guided wizards via the SmartBlue-App or via a test button or magnetic pin from outside. Via digital communication you can initiate the device for a fast and easy testing of the safety loop.

Heartbeat Technology allows safe, continuous diagnostics and a simple verification, without process interruption

Centralized asset management with easy online access to all device information thanks to digital communication

Second line of defense to protect the environment

备件及配件

	描述	类别	Drawing No.	订单代码
1	Housing 2-wire platform Liquiphant	Housing/housing accessories	10	XPF0040-
2	Blind plug, M20, Alu, o-ring EPDM	Plug / blind plug	14	71487199
3	Blind plug, M20, 316L, o-ring EPDM	Plug / blind plug	14	71487198
4	Blind plug, NPT1/2, Alu	Plug / blind plug	14	71487201
5	Blind plug, NPT1/2, 316L	Plug / blind plug	14	71487203
6	Cable gland M20, plastic	Screw connection	15	71435135
7	Cable gland blue M20, plastic	Screw connection	15	71701449
8	Cable gland M20, brass nickel plated	Screw connection	15	71435136
9	Cable gland M20, 316L	Screw connection	15	71435137
10	Adapter set M20x1.5-G1/2, Alu	Screw connection	15	71440660
11	Adapter set M20x1.5-G1/2, 316L	Screw connection	15	71440667
12	Adapter set M20x1.5-G1/2, plastic	Screw connection	15	71462833
13	Adapter set M20x1.5-1/2″NPT, plastic	Screw connection	15	71462835
14	M12 plug, 316L, HART, PA, housing side	Screw connection	15	71435138
15	M12 plug, 316L, APL, housing side	Screw connection	15	71435139
16	Ground terminal Housing L+P	Terminals	18	71474251
17	Ground terminal Liquiphant	Terminals	18	71589844
18	Ground terminal plastic housing L+P	Terminals	18	71589861
19	Ground term. plastic housing Liquiph. ES	Terminals	18	71647970
20	Ground term. hygiene housing Liquiph. ES	Terminals	18	71647972
21	Ground terminal hygiene housing L+P	Terminals	18	71647974
22	Cover Alu, closed	Cover	20	71435116
23	Cover Alu, closed, Ex d	Cover	20	71435118
24	Cover 316L, closed, Ex d	Cover	20	71435122
25	Cover plastic, closed	Cover	20	71435126
26	Cover plastic, BT/LED module	Cover	20	71435127
27	Cover plastic, sight glass	Cover	20	71550061
28	Cover Alu, sight glass, BT/LED module	Cover	20	71435129
29	Cover Alu, sight glass, Ex d, BT/LED	Cover	20	71435130
30	Cover Alu, sight glass	Cover	20	71439089
31	Cover 316L, sight glass, Ex d	Cover	20	71435123
32	Cover sealing EPDM, 5 pieces	Sealing	21	71435131
33	Cover sealing HNBR, -40oC, 5 pieces	Sealing	21	71435132
34	Cover sealing FVMQ, -60oC, 5 pieces	Sealing	21	71435134
35	Locking screw,cover electr. compartment	Housing/housing accessories	24	71671700
36	Locking screw, cover sight glass	Housing/housing accessories	24	71671706
37	Locking screw, cover sight glass BT/LED	Housing/housing accessories	24	71671712
38	Electronics FEL60D,density/concentration	Electronic	30	71432577
39	Electronics DigiCom FTL51B, FTL6x	Electronic	30	XPF0055-
40	Electronics FEL61, 19-253VAC	Electronic	30	71432518
41	Electronics FEL62, PNP10-55VDC	Electronic	30	71432519
42	Elektronik FEL62, PNP10-55VDC, Low Temp	Electronic	30	71432547
43	Electronics FEL64 DC, relay DPDT	Electronic	30	71432549
44	Electronics FEL64 DC,relay DPDT,Low Temp	Electronic	30	71432553
45	Electronics FEL64, relay DPDT	Electronic	30	71432570
46	Electronics FEL64, relay DPDT, Low Temp	Electronic	30	71432572
47	Electronics FEL67 PFM	Electronic	30	71432573
48	Electronics FEL67 PFM, Low Temp	Electronic	30	71432574
49	Electronics FEL68 NAMUR	Electronic	30	71432575
50	Electronics FEL68 NAMUR, Low Temp	Electronic	30	71432576
51	Terminal unit TU100A, L-form, 1CH	Terminal module	35	71458631
52	Terminal unit TU101A, L-form, 1CH, OVP	Terminal module	35	71458633
53	LED module VU120	Display	40	71437382
54	Graphical display VU112	Display	40	71435775
55	Graphical display + Bluetooth VU113	Display	40	71435781
56	备用RFID标签	其他零件		XPRFID-
57	Spare IEC TAG	其他零件		XPSPEC-
58	Bluetooth module VU121 with battery		40	71437381
59	Bluetooth module VU121 w/o battery		40	71437383
60	Test magnet Liquiphant			71437508
61	M12-female plug connec., 100deg,5m cable			52010285
62	M12-female plug connec., 90deg, 5m cable			52024216
63	Mountingset for remote sensor			71102216
64	Weather protection cover, plastic, XW111			71438291
65	Weather protection cover, 316L, XW112			71438303
