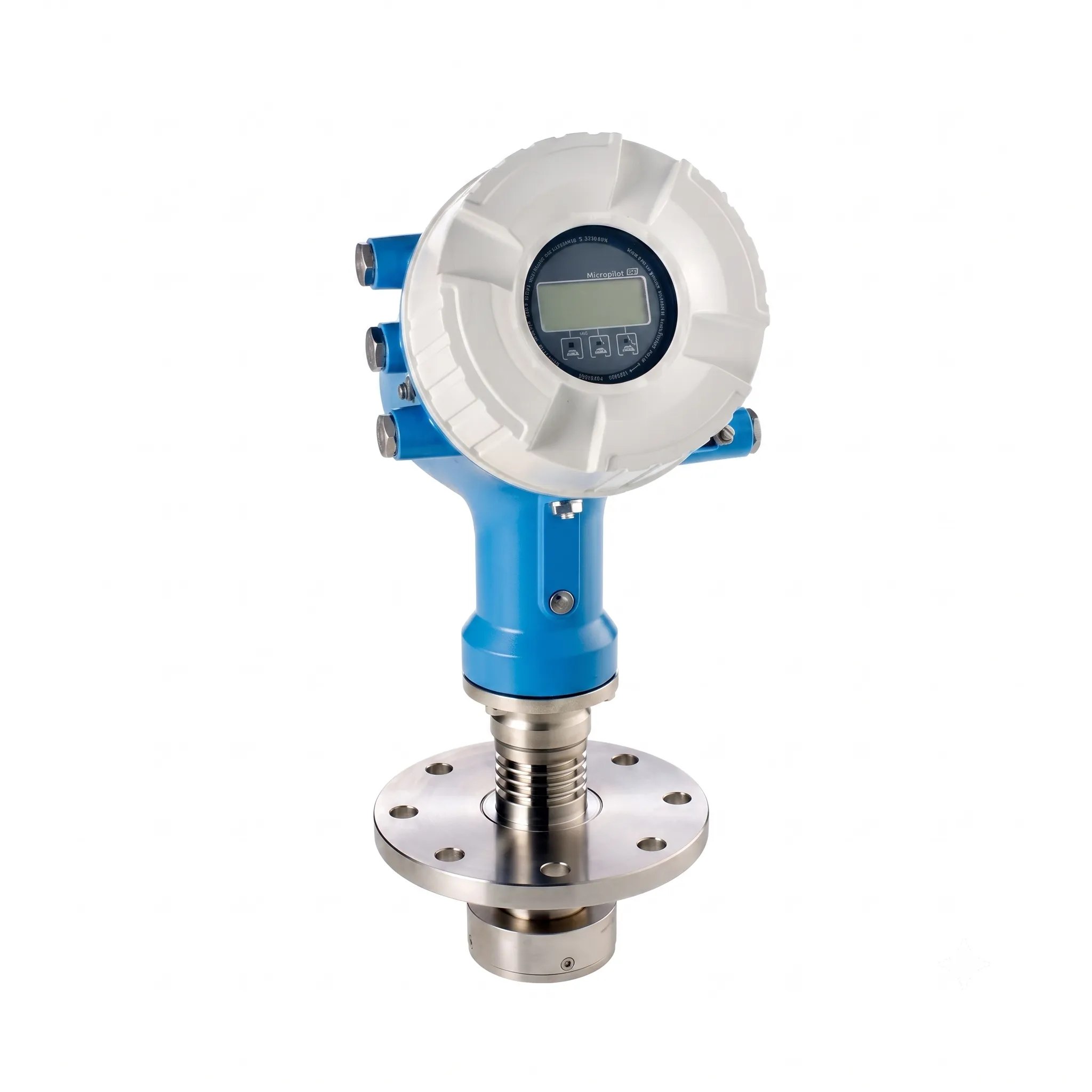

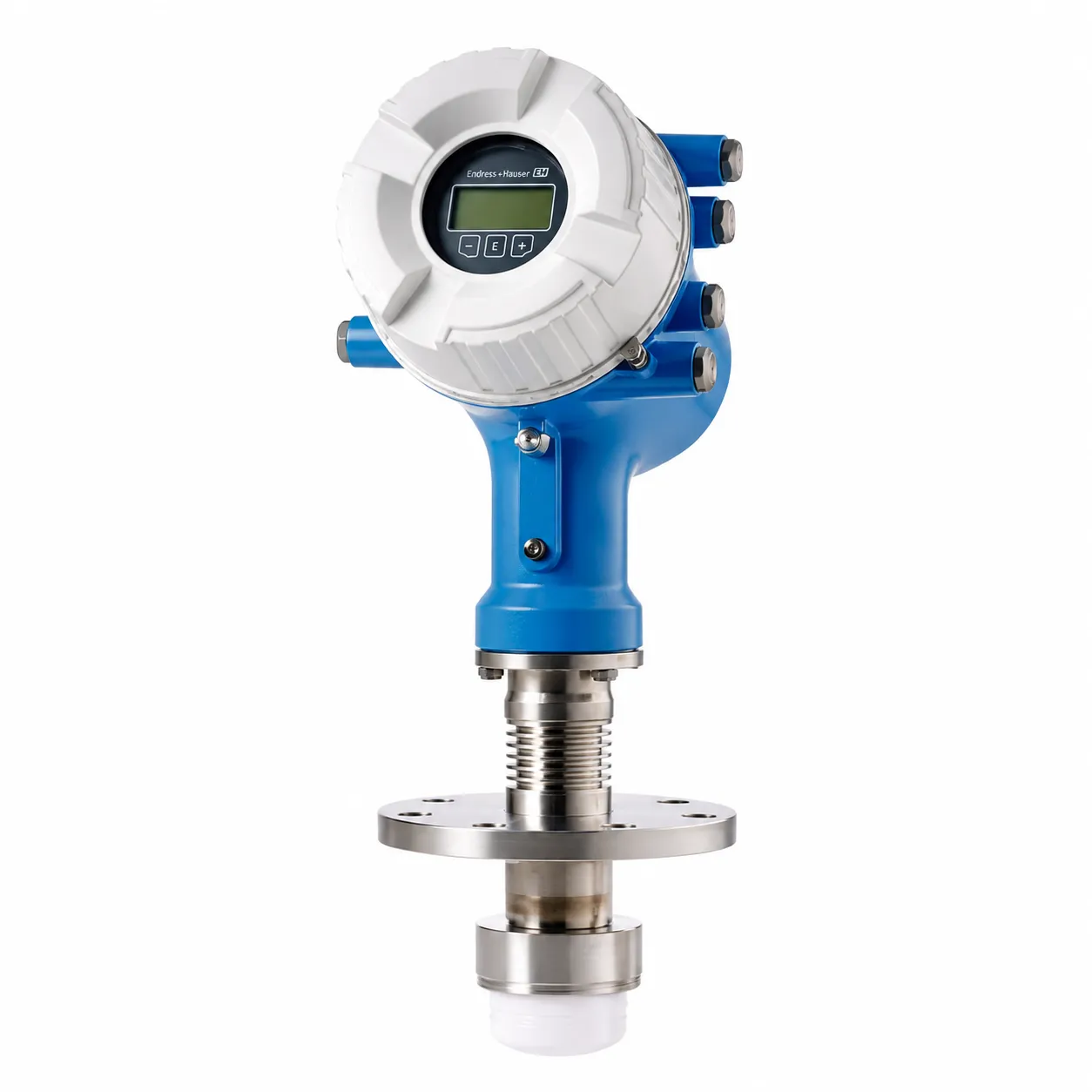

For high accurate non-contact level measurement in stilling well applications in custody transfer

一目了然的规格

Accuracy up to 0.5 mm
Process temperature -40°C…150°C (-40°F…302°F)
Process pressure / max. overpressure limit Vacuum … 25 bar abs
Max. measurement distance 50 m (164 ft) For calibration to regulatory standards: 50 m (164 ft)
Main wetted parts 316L, PTFE

应用领域

Micropilot NMR84 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The NMR84 free space radar with drip-off planar antenna is specifically suited for

好处

Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy) for high level of safety

Maximum reliability through accuracy up to ±0.5mm (±0.02″)

Developed according to international metrology recommendations such as OIML R85 and API MPMS

Local and country-specific certifications like NMi or PTB for custody transfer applications

Simplified installation and trouble-free operations due to easy connection to major DCS systems via open protocols

Unique drip-off antenna design eliminates measurement error due to condensation build-up

备件及配件

	15 spare parts & accessories	订单代码
1	O-ring, housing, 177.39×3.53, TG Sealing	71312582
2	Housing filter, PTFE, NMR8x, 2 pcs.,TG Filter	71312589
3	Blind plug, M20, 316L, O-ring EPDM, TG Adapter housing/cable entry	71312592
4	O-ring, blind plug, M20, EPDM, 5pcs., TG Sealing	71312594
5	Front cover 316L, sight glas, gasket Cover	71312607
6	Front cover Alu, sight glas, gasket Cover	71312596
7	Cover clamp, 2 pcs., TG Housing/housing accessories	71312627
8	Terminal set, I/O module, Push-in, TG Terminals	71324756
9	Terminal set, I/O module, screw type, TG Terminals	71324757
10	Display set, RS485, holder, TG Display	71312638
11	Display holder, fixing ring, TG Display	71312640
12	Electronics, mainboard Electronic	XPN0036-
13	I/O Module NMR81/84, NRF81, NMS80/81/83 I/O module	XPN0031-
14	Spare RFID TAG Miscellaneous	XPRFID-
15	Weather protection cover NMR8x, NRF8x	71292751
