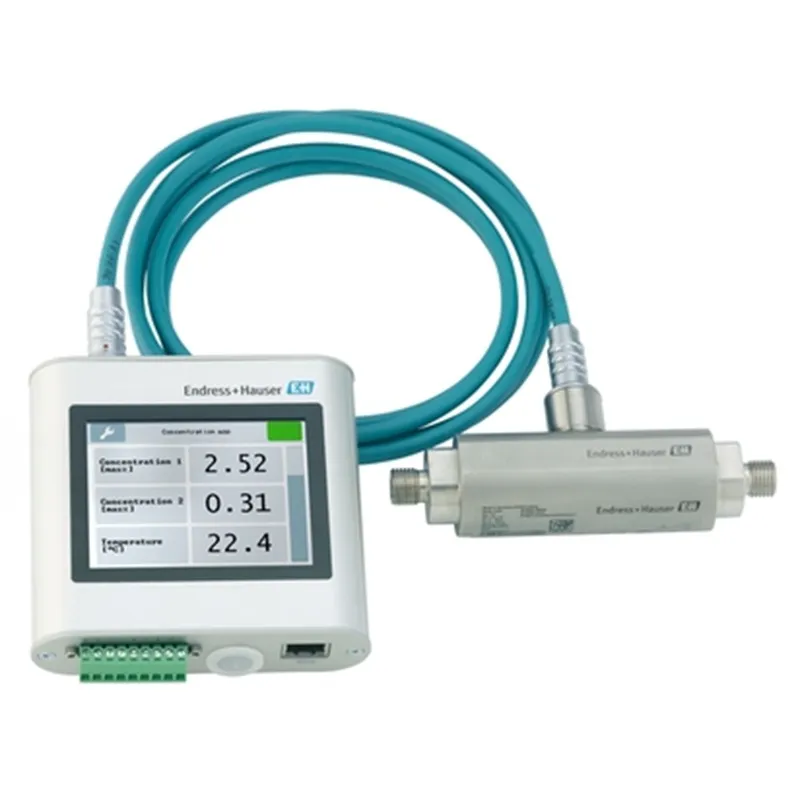

Teqwave F – Ultrasonic concentration meter | Endress Hauser E+H

Smart, flexible inline measuring device – individually for your process

一目了然的规格

Max. measurement error Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: +-2m/s

Measuring range Concentration According to concentration app data sheet, maximum 0 to 100 % Sound velocity 600 to 2000 m/ s Temperature maximum 0 to +100 °C (32 to +212 °F) Acoustic Density 0.7 to 1.5 g/cm³

Measuring range Concentration According to concentration app data sheet, maximum 0 to 100 % Sound velocity 600 to 2000 m/ s Temperature maximum 0 to +100 °C (32 to +212 °F) Acoustic Density 0.7 to 1.5 g/cm³

Medium temperature range 0 to 100 °C (32 to 212 °F)
Process temperature 0 to 100 °C (32 to 212 °F)

应用领域

Teqwave F is ideal for real-time liquid analysis in pipes, particularly in skids. Equipment manufacturers and end customers value the inline device for its accurate in situ concentration measurement. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs: You can flexibly define and extend your application range.

好处

Easy and efficient – real-time in situ liquid analysis
Full transparency – constant monitoring of product quality without sampling

Highest process safety – reliable metering due to robust, maintenance free sensor

Cost-saving – fewer measuring points due to multivariable measurement

Customized usage – innovative application concept, expendable for changing measuring tasks

Simplified process control – user-friendly operation and clear status visualization

Local data backup – integrated data storage for measured values up to 7,5 years

备件及配件

	描述	类别	Drawing No.	订单代码
1	Cable remote version, Teqwave	Cable/cable accessories	61	XPD0047-
2	Teqwave F, D9FB, Inline	Sensoric	60	D9FB-
3	Teqwave Transmitter, DK9BXX		89	DK9BXX-
4	Teqwave Concentration Apps			DK9500-
