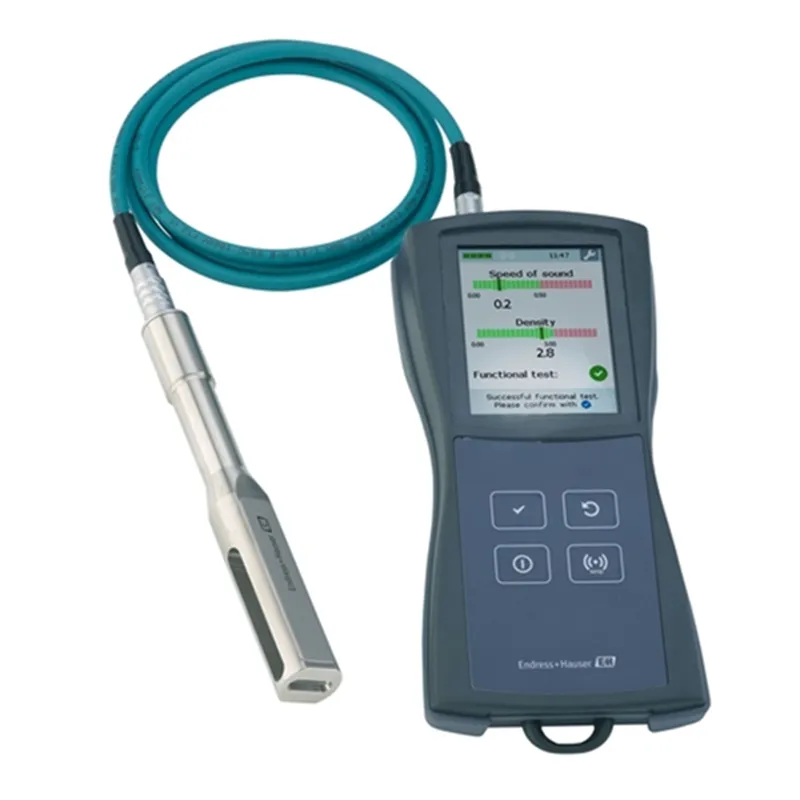

Teqwave T – Ultrasonic concentration meter | Endress Hauser E+H

Smart, mobile measuring device – individually for your process

一目了然的规格

Max. measurement error Acoustic density: ±0.01g/cm³ (interal measuring variable) Temperature: ±0.5K Sound velocity: +-2m/s (interal measuring variable)

Measuring range Concentration According to concentration app data sheet, maximum 0 to 100 % Sound velocity 600 to 2000 m/ s Temperature maximum 0 to +100 °C (32 to +212 °F) Acoustic Density 0.7 to 1.5 g/cm³

Measuring range Concentration According to concentration app data sheet, maximum 0 to 100 % Sound velocity 600 to 2000 m/ s (interal measuring variable) Temperature maximum 0 to +100 °C (32 to +212 °F) Acoustic Density 0.7 to 1.5 g/cm³ (interal measuring variable)

Medium temperature range 0 to 100 °C (32 to 212 °F)
Process temperature 0 to 100 °C (32 to 212 °F)

应用领域

The portable Teqwave T offers the most flexible application possibilities for temporary in situ liquid analysis in your plant or laboratory. With just one device, you can monitor concentration values at various measuring points and thus maximize your product quality at minimum operational expenditure. The mobile transmitter with its pre configured measuring points allows you to use Teqwave T perfectly matched to your production needs.

好处

Easy, fast and efficient – real-time in situ liquid analysis
Versatile applications – one device for changing tasks
Highest process safety – reliable metering due to robust, maintenance free sensor

Cost-saving – surveillance of product quality without sampling
Customized usage – innovative application concept, expendable for changing measuring tasks

Fast, straightforward operation without metrology knowledge – pre configured measuring points

Efficient plant monitoring – up to 8 hours of mobile operation without external power supply

备件及配件

	描述	类别	Drawing No.	订单代码
1	Cable remote version, Teqwave	Cable/cable accessories	61	XPD0047-
2	Teqwave T, D9TB, Mobile	Electronic	89	D9TB-
3	Teqwave Concentration Apps			DK9500-
