For continuous level and interface measurement in liquids

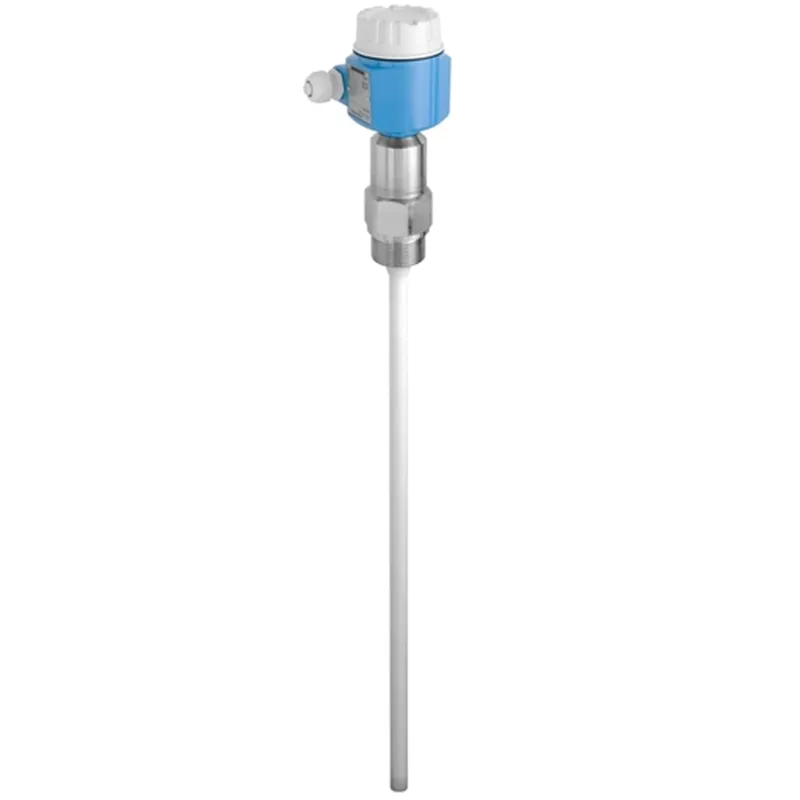

Liquicap FMI51 is a reliable fully insulated rod probe for continuous level monitoring in liquids, particularly in build-up forming media and extremely high temperatures. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.
| Description | Category | Drawing No. | Order Code | |
| 1 | Plug 3p M12/M20, gasket | Adapter housing/cable entry | 15 | 52005984 |
| 2 | Cover F13 Ex Alu, gasket | Cover | 20 | 52002698 |
| 3 | Cover F17 Alu, gasket | Cover | 20 | 52002699 |
| 4 | Cover T13 Alu, gasket EPDM | Cover | 20 | 52006903 |
| 5 | Cover F16 high, transparent, gasket | Cover | 20 | 52025605 |
| 6 | Cover F16 grey, PBTP, gasket | Cover | 20 | 52025606 |
| 7 | Cover F15 316L, gasket | Cover | 20 | 52027000 |
| 8 | Cover F15 316L, claw, gasket | Cover | 20 | 52027708 |
| 9 | Cover F15 316L, high, sight glass,gasket | Cover | 20 | 52028269 |
| 10 | Cover F13/F17 Alu,high,sight glass,gask. | Cover | 20 | 52028270 |
| 11 | Cover T13 Alu,Ex d,high,sight glass,gas. | Cover | 20 | 52028271 |
| 12 | Cover T13 “Terminal” Alu, gasket EPDM | Cover | 25 | 52007103 |
| 13 | O-ring 71.0×3.55 EPDM, 5 pieces | Cover | 20 | 52004137 |
| 14 | Sealing set EPDM,cover F13/17/18/27,5pc | further parts | 52004277 | |
| 15 | Sealing set EPDM 73.0×3.0, 10 pieces | further parts | 52008495 | |
| 16 | Gasket 67.5×2.9×1.5 VMQ/PTFE, 5 pieces | further parts | 52028179 | |
| 17 | Electronics FEI50H, 4-20mA, HART | Electronic | 30 | 52028260 |
| 18 | Electronics FEI57C, PFM | Electronic | 30 | 52028261 |
| 19 | Terminal module 2-pole EEx d, RFI filter | Terminal module | 35 | 71020804 |
| 20 | Display, holder | Display | 40 | 52028266 |
| 21 | Mounting set (2″/pipe 38_V4A | further parts | 919806-1000 | |
| 22 | Sealing ring G1/2, 21×26, FA, 5 pcs. | further parts | 57 | 71194296 |
| 23 | Sealing ring G3/4, 27×32, FA, 5 pcs. | further parts | 57 | 71185027 |
| 24 | Sealing ring G1, 33×39 FA, 5 pcs. | further parts | 57 | 52014048 |
| 25 | Sealing ring G1-1/2, 48×55 FA, 5 pcs. | further parts | 57 | 52014047 |
| 26 | O-ring 14.9×2.7 VMQ, FDA, 5 pcs. | further parts | 52021717 | |
| 27 | O-ring 14.9×2.7 VMQ, FDA, USP, 3 pcs. | further parts | 71086117 | |
| 28 | O-ring 28.17×3.53 VMQ, FDA, 5 pcs. | further parts | 52014472 | |
| 29 | O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs. | further parts | 71086102 | |
| 30 | O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs. | further parts | 71140668 | |
| 31 | Sealing ring 15,08×2,62 EPDM, 5 pcs | further parts | 71529759 | |
| 32 | Weather protection cover F13/F17/F18/F27 | 71040497 | ||
| 33 | Protection cover F16 housing | 71127760 | ||
| 34 | Weld-in adapter UNI D65, 316L | 214880-0002 | ||
| 35 | Weld-in adapter UNI D65, 316L, 3.1 | 52010174 | ||
| 36 | Weld-in adapter UNI D85, 316L | 52006262 | ||
| 37 | Weld-in adapter UNI D85, 316L, 3.1 | 52010173 | ||
| 38 | Profile gasket silicone, 5 pieces | 52023572 | ||
| 39 | Weld-in adapter G3/4, d=29, 316L | 71258357 | ||
| 40 | Weld-in adapter G3/4 d=50, 316L | 71258355 | ||
| 41 | Weld-in adapter G3/4 d=50, 316L, 3.1 | 52018765 | ||
| 42 | Blind plug for weld-in adap. G3/4, 316L | 71675412 | ||
| 43 | Welding dummy for weld-in ad. G3/4,brass | 71675415 | ||
| 44 | O-Ring 15,08×2,62 FKM, 5 pcs | 71675404 | ||
| 45 | O-ring 15,08×2,62 EPDM, 5 pcs | 71675405 | ||
| 46 | Weld-in adapter G1, d=60, 316L | 52001051 | ||
| 47 | Weld-in adapter G1, d=60, 316L, 3.1 | 52011896 | ||
| 48 | Weld-in adapter G1, d=53, 316L, 3.1 | 71093129 | ||
| 49 | Weld-in adapter G1, d=53, 316L | 71258358 | ||
| 50 | Welding dummy for weld-in adap. G1,brass | 71675410 | ||
| 51 | Blind plug for weld-in adap.G1, 316L.3.1 | 71675413 | ||
| 52 | O-Ring 28,17×3,53 FKM, 5 pcs | 71675402 |
