Point level detection for bulk solids, especially for high temperatures and strong mechanical loads

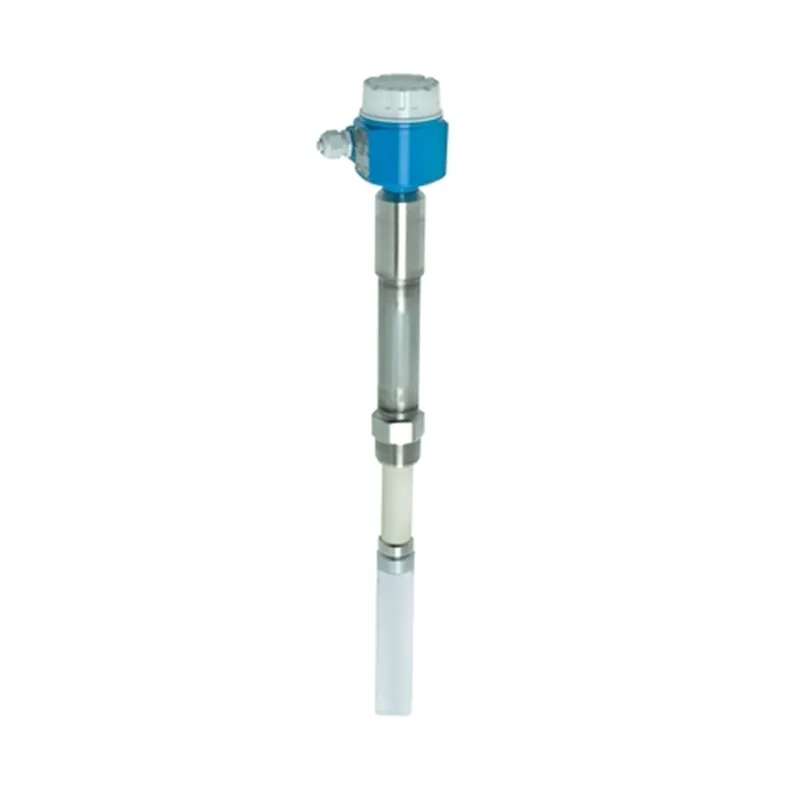

Solicap FTI77 is a partly insulated sword/rope probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used in applications with very high lateral loads (up to 800Nm, sword version), high temperatures and abrasive media.
• Highest safety and reliability due to extremely robust design for harsh process conditions
• Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button
• Cost-effective, reliable and universal application thanks to wide range of certificates and approvals
• Two-stage overvoltage protection against static discharges from the silo
• Active build-up compensation for bulk solids with caking tendency
• Use in safety systems requiring functional safety to SIL2/SIL3
• Reduction in storage costs thanks to easy-to-shorten sword model and rope model
| Description | Category | Drawing No. | Order Code | |
| 1 | Cover F16 grey, PBTP, gasket | Cover | 20 | 52025606 |
| 2 | Cover F13 Ex Alu, gasket | Cover | 20 | 52002698 |
| 3 | Cover F17 Alu, gasket | Cover | 20 | 52002699 |
| 4 | Cover F15 316L, gasket | Cover | 20 | 52027000 |
| 5 | Cover T13 Alu, gasket EPDM | Cover | 20 | 52006903 |
| 6 | Cover T13 “Terminal” Alu, gasket EPDM | Cover | 25 | 52007103 |
| 7 | O-ring 71.0×3.55 EPDM, 5 pieces | Sealing | 21 | 52004137 |
| 8 | Sealing set EPDM,cover F13/17/18/27,5pc | Sealing | 21 | 52004277 |
| 9 | Gasket 67.5×2.9×1.5 VMQ/PTFE, 5 pieces | Sealing | 21 | 52028179 |
| 10 | Sealing set EPDM 73.0×3.0, 10 pieces | Sealing | 21 | 52008495 |
| 11 | Cable F15/F16/F17 separate, FTIxx | further parts | 71084478 | |
| 12 | Weight Steel, Solicap M/S, rope 6mm st | further parts | 71114539 | |
| 13 | Weight cast Iron,Solicap S, rope 12mm st | further parts | 71114538 | |
| 14 | Weight 316L, Solicap M/S, rope 6mm 316L | further parts | 71114540 | |
| 15 | Weight 316L, Solicap M/S, rope 12mm 316L | further parts | 71114541 | |
| 16 | Electronics FEI51, 19-253VAC | Electronic | 30 | 71042887 |
| 17 | Electronics FEI52, PNP, 10-55VDC | Electronic | 30 | 71025819 |
| 18 | Electronics FEI53, 3-12V, signal | Electronic | 30 | 71025820 |
| 19 | Electronics FEI54, relay DPDT, AC/DC | Electronic | 30 | 71025814 |
| 20 | Electronics FEI55, 8/16mA, 11-36VDC | Electronic | 30 | 71025815 |
| 21 | Electronics FEI57S, 2-wire PFM | Electronic | 30 | 71025816 |
| 22 | Electronics FEI58 Namur | Electronic | 30 | 71100895 |
| 23 | Mounting set (2″/pipe 38_V4A | further parts | 919806-1000 | |
| 24 | Weather protection cover F13/F17/F18/F27 | 71040497 | ||
| 25 | Protection cover F16 housing | 71127760 | ||
| 26 | Screw in flange FAX50 | FAX50- |
