Capacitance Level measurement Liquicap FMI52 | Endress Hauser E+H

For continuous level and interface measurement in liquids – for large measuring ranges

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Accuracy repeatablity 0,1%
Process temperature -80°C…200°C -112°F…392°F
Process pressure / max. overpressure limit Vacuum … 100 bar (Vaccum … 1450 psi)

Max. measurement distance 0.42 m … 10.0 m (1.38 ft … 33 ft)
Main wetted parts Insulation material: FEP,PFA 316L

Field of application

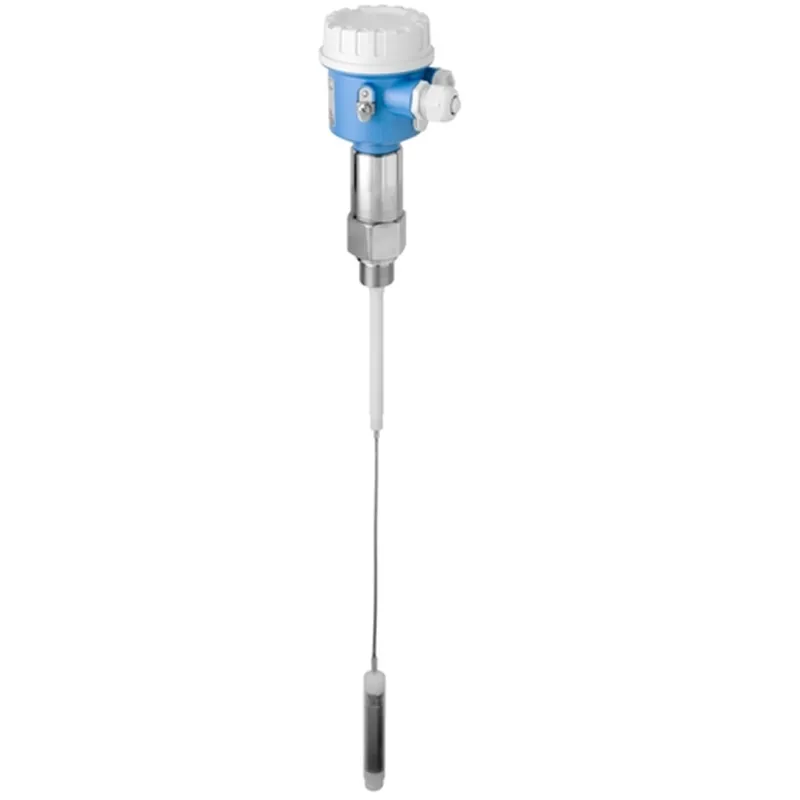

Liquicap FMI52 is a reliable fully insulated rope probe for continuous level monitoring in liquids, particularly in small tanks, build-up forming media and extremely high temperatures – especially for large measuring ranges. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

Benefits

Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508

Reliable and universal application thanks to wide range of certificates and approvals

No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100μS/cm and higher

Material in contact with the process made of corrosion-resistant material

Menu-guided local configuration via plain text display (optional)
Two-stage overvoltage protection

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Plug 3p M12/M20, gasket	Adapter housing/cable entry	15	52005984
2	Cover F13 Ex Alu, gasket	further parts	20	52002698
3	Cover T13 Alu, gasket EPDM	further parts	20	52006903
4	Cover F16 high, transparent, gasket	further parts	20	52025605
5	Cover F16 grey, PBTP, gasket	further parts	20	52025606
6	Cover F15 316L, gasket	further parts	20	52027000
7	Cover F15 316L, claw, gasket	further parts	20	52027708
8	Cover F15 316L, high, sight glass,gasket	further parts	20	52028269
9	Cover F13/F17 Alu,high,sight glass,gask.	further parts	20	52028270
10	Cover T13 Alu,Ex d,high,sight glass,gas.	further parts	20	52028271
11	Cover T13 “Terminal” Alu, gasket EPDM	further parts	25	52007103
12	Cover F17 Alu, gasket	further parts		52002699
13	O-ring 71.0×3.55 EPDM, 5 pieces	further parts		52004137
14	Sealing set EPDM,cover F13/17/18/27,5pc	further parts		52004277
15	Sealing set EPDM 73.0×3.0, 10 pieces	further parts		52008495
16	Gasket 67.5×2.9×1.5 VMQ/PTFE, 5 pieces	further parts		52028179
17	Electronics FEI50H, 4-20mA, HART	further parts	30	52028260
18	Electronics FEI57C, PFM	further parts	30	52028261
19	Display, holder	further parts	40	52028266
20	Mounting set (2″/pipe 38_V4A	further parts		919806-1000
21	Sealing ring G3/4, 27×32, FA, 5 pcs.	further parts	57	71185027
22	Sealing ring G1, 33×39 FA, 5 pcs.	further parts	57	52014048
23	Sealing ring G1-1/2, 48×55 FA, 5 pcs.	further parts	57	52014047
24	O-ring 28.17×3.53 VMQ, FDA, 5 pcs.	further parts		52014472
25	O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs.	further parts		71086102
26	O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs.	further parts		71140668
27	Rope shortening kit FMI52/FTI52			942901-0001
28	Weather protection cover F13/F17/F18/F27			71040497
29	Protection cover F16 housing			71127760
30	Weld-in adapter UNI D65, 316L			214880-0002
31	Weld-in adapter UNI D65, 316L, 3.1			52010174
32	Weld-in adapter UNI D85, 316L			52006262
33	Weld-in adapter UNI D85, 316L, 3.1			52010173
34	Profile gasket silicone, 5 pieces			52023572
35	Weld-in adapter G1, d=60, 316L			52001051
36	Weld-in adapter G1, d=53, 316L, 3.1			71093129
37	Weld-in adapter G1, d=53, 316L			71258358
38	Weld-in adapter G1, d=60, 316L, 3.1			52011896
39	Welding dummy for weld-in adap. G1,brass			71675410
40	Blind plug for weld-in adap.G1, 316L.3.1			71675413
41	O-Ring 28,17×3,53 FKM, 5 pcs			71675402
