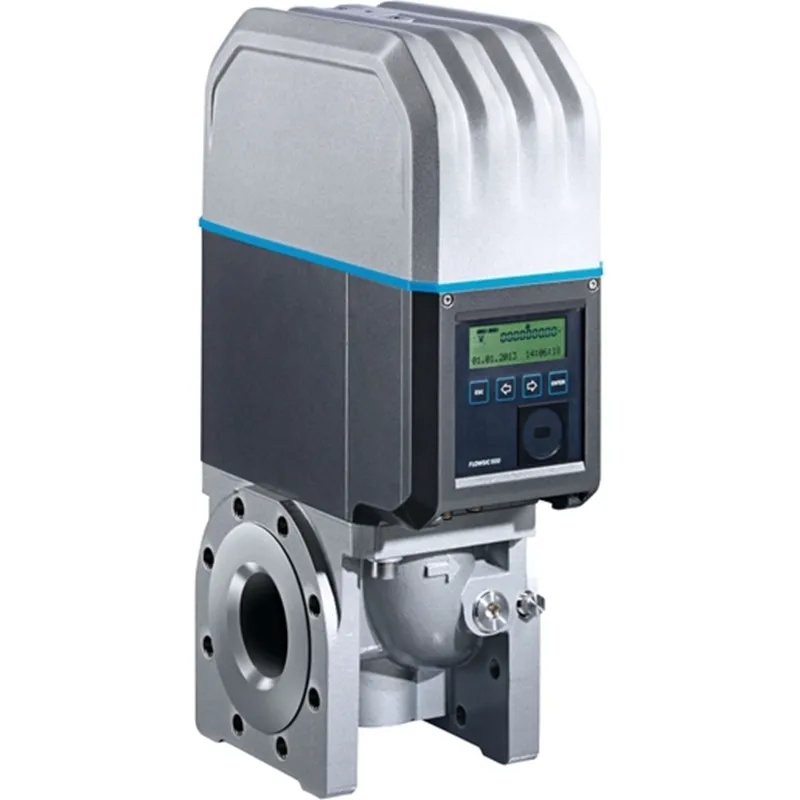

FLOWSIC500 ultrasonic flowmeter | Endress Hauser E+H

Custody transfer measurement in natural gas distribution

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Measured variables Volume a. c., volumetric flow a. c., gas velocity, volume s. c. (*), volume flow under s.c. (*) (*) additional function included with integrated volume correction

Measuring Medium Natural gas (dry, odorized)
Nominal pipe size DN 50 (2″) … DN 150 (6″)

Field of application

The FLOWSIC500 ultrasonic flowmeter enables extremely accurate natural gas distribution measurement. It is overload proof, accurate and is monitored by an intelligent diagnostics system. It can easily be integrated into existing measuring stations. It operates either in a self-sufficient energy configuration or in failsafe network operation with battery back-up. It complies with all pertinent standards and directives and provides the security of a continuous and blockage free gas supply.

Benefits

Highest measurement certainty and safety of continuous gas supply
Reduction of installation costs due to integrated flow conversion
Simple installation, compatible with conventional technologies (turbine and rotary displacement meters)

Minimal operating costs due to being nearly maintenance-free
Simplified recalibration due to straightforward cartridge exchange
Reliable under dynamic load changes
Self-sufficient operation

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	BATTERY UNIT 2R20	further parts		2064018
2	BATTERY UNIT 2R6	further parts		2065928
3	DISPLAY MOUNT. TESTED SP	further parts		2066077
4	SET CLOSURE NPT1/4 1.4571	further parts		2067398
5	SET CLOSURE G1/4 1.4571	further parts		2067400
6	SET CLOSURE G1/2 1.4571	further parts		2067401
7	SET TUBE FITTING PIPE D06 ST-VZ	further parts		2069071
8	SP-EDT23-1000-0000RGX.E.I3 MOUNT	further parts		2071174
9	SP-EDT23-0400-0000RGX.E.I3 MOUNT	further parts		2071175
10	ET-EDT23-2500-0000RGX.E.I3 MOUNT	further parts		2071176
11	ET-EDT23-0520-0080AGX.E.I3 MOUNT	further parts		2071178
12	ET-EDT23-1000-0200AGX.E.I3 MOUNT	further parts		2071179
13	ET-EDT23-2000-0400AGX.E.I3 MOUNT	further parts		2071180
14	ET-EDT34-60-25.E.I3 MOUNT	further parts		2071181
15	SET TUBE FITTING PIPE 1/4″ ST-VZ	further parts		2071771
16	ET-EDT34-70-40.E.I3 MOUNT	further parts		2071777
17	ADAPTOR NPT1/4 A – G 1/4 I SS	further parts		2075562
18	SET ASSEMBLY LEVER	further parts		2087270
19	PCBA-RS485 ISOL MODUL LV UB 2,7…5V SP	further parts		2087945
20	PCBA-RS485 ISOL MODUL UB 4…16V SP	further parts		2087946
21	SET CLEANING 2″/DN50	further parts		2089962
22	SET CLEANING 3″/DN80	further parts		2089963
23	SET CLEANING 4″+6″/DN100+DN150	further parts		2089964
24	SET SEALING F.CLEANING 2″/DN50	further parts		2090075
25	SET SEALING F.CLEANING 3″/DN80	further parts		2090076
26	SET SEALING F.CLEANING 4″+6″/DN100+150	further parts		2090077
27	DISPLAY ISOL MOUNT. TESTED SP	further parts		2092947
28	CABLE, FL. FEM /FEM 0.180M SP	further parts		2100078
29	SP-EDT96-2000-0080AGX.E.I2 MOUNT	further parts		2116161
30	BRUSH,ESD 351015 NYLON	further parts		5336222
