Guided radar measurement Time-of-Flight Levelflex FMP51 | Endress Hauser E+H

The standard sensor for highest demands in liquid level measurement

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Accuracy Rod probe :+/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in)

Process temperature -50…+200 °C (-58…+392 °F)
Process pressure / max. overpressure limit Vacuum…40 bar (Vacuum…580 psi)

Max. measurement distance Rod: 10 m (33 ft) Min DK>1.6 Rope: 25 m…30 m (82ft…98 ft) Min DK>1.6; 30m…45 m (98ft…148 ft) Min DK>1,9 Coaxial probe: 6 m (20 ft) Min DK>1.4
Main wetted parts Rod probe: 316L, Alloy C, Ceramic Rope probe: 316, 316L, Alloy C, Ceramic Coaxial probe: 316L, Alloy C, Ceramic, PFA

Field of application

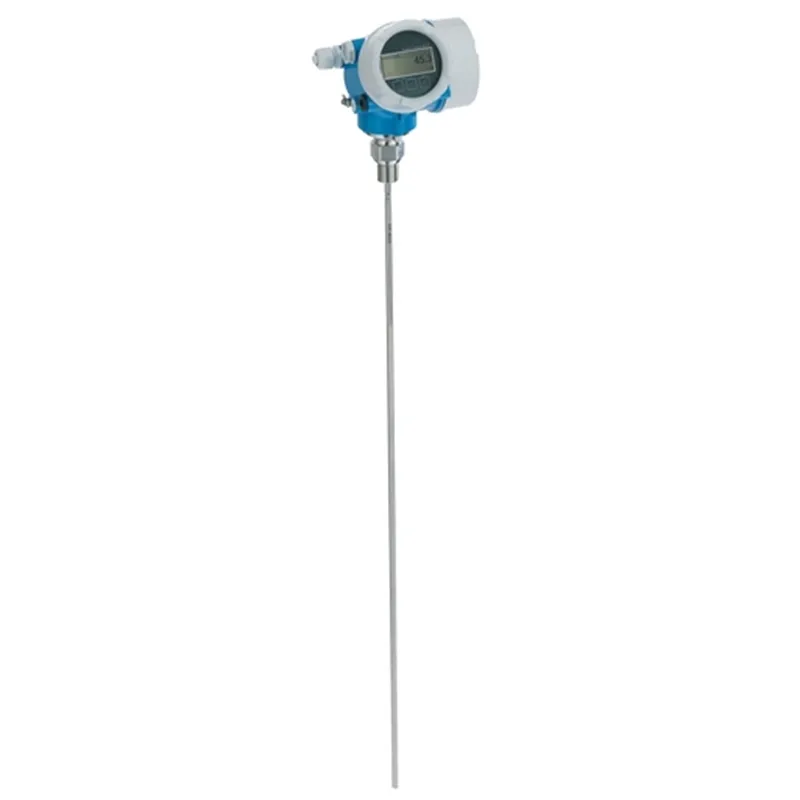

Levelflex FMP51 for level measurement even under extreme process conditions like high temperature and high pressure in the process industry. FMP51 offers maximum reliability even in case of moved surface and foam or when numerous tank baffles interfere with the measurement. Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

Reliable measurement even for changing product and process conditions

HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

World’s easiest proof test for SIL and WHG saves time and costs

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Housing filter 316L, GT18, 1 set	Filter	19	71115174
2	Housing filter Brass/Ni GT19/20, 1 set	Filter	19	71115175
3	Set housing securing clamps	Housing/housing accessories	17	71115176
4	Cover GT18 316L, HNBR	Cover	20	71110281
5	Cover GT18 316L, sight glass, HNBR	Cover	20	71110282
6	Cover GT19 PBT, sight glass, EPDM	Cover	20	71110292
7	Cover GT19 PBT, EPDM	Cover	20	71110293
8	Cover GT20 Alu, sight glass, HNBR	Cover	20	71110297
9	Cover GT20 Alu, HNBR	Cover	20	71110299
10	Cover GT18 316L, FVMQ	Cover	20	71383631
11	Cover GT18 316L, sight glass, FVMQ	Cover	20	71383666
12	Cover GT20 Alu, FVMQ	Cover	20	71383674
13	Cover GT20 Alu, sight glass, FVMQ	Cover	20	71383675
14	Cover GT18 316L, terminal Ex d, HNBR	Cover	25	71110284
15	Cover GT18 316L, terminal Ex, HNBR	Cover	25	71110291
16	Cover GT19 PBT, Terminal Ex, EPDM	Cover	25	71110295
17	Cover GT20 Alu, Terminal Ex, HNBR	Cover	25	71110301
18	Cover GT20 Alu, Terminal Ex d, HNBR	Cover	25	71110302
19	Cover GT18 316L, Terminal, OVP, HNBR	Cover	25	71185516
20	Cover GT20 Alu, Terminal, OVP, HNBR	Cover	25	71185517
21	Cover GT19 PBT, Terminal, OVP, EPDM	Cover	25	71185518
22	Cover GT18 316L, terminal Ex, FVMQ	Cover	25	71383668
23	Cover GT18 316L, terminal Ex d, FVMQ	Cover	25	71383670
24	Cover GT18 316L, Terminal, OVP, FVMQ	Cover	25	71383671
25	Cover GT20 Alu, Terminal Ex, FVMQ	Cover	25	71383679
26	Cover GT20 Alu, Terminal Ex d, FVMQ	Cover	25	71383680
27	Cover GT20 Alu, Terminal, OVP, FVMQ	Cover	25	71383682
28	Sealing set GT18/GT19/GT20, EPDM, HNBR	Sealing	65	71110303
29	Sealing set GT18/20, FVMQ	Sealing	65	71384797
30	Plug M12, IP66/68 NEMA4X/6P, ProToF	further parts		71450381
31	Blind plug M20, Alu, Ex d	further parts	14	71679714
32	Blind plug M20, 316L, Ex d	further parts	14	71679712
33	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
34	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
35	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
36	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
37	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
38	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
39	I/O module 2-wire, 4-20mA, HART, Ex, V2	I/O module	34	71108594
40	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
41	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
42	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
43	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
44	I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1	I/O module	34	71108599
45	I/O mod.Level,2-wr2x4-20mA,HART,Ex,V1	I/O module	34	71108601
46	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
47	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
48	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
49	I/O modLevel,4-wrDC,4-20mA,HART,Ex,V1	I/O module	34	71108604
50	I/Omod.Level,4-wrAC,4-20mA,HART,Ex,V1	I/O module	34	71108605
51	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
52	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
53	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
54	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
55	I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2	I/O module	34	71187812
56	I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2	I/O module	34	71207473
57	I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2	I/O module	34	71207474
58	I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2	I/O module	34	71207475
59	I/O module Modbus RS485	I/O module	34	71372391
60	Terminal set 4-wire, I/O module	Terminals	37	71110279
61	Terminal set 2-wire, I/O module	Terminals	37	71110280
62	Kit Display module,SD02,push buttons	Display	40	71109658
63	Kit Display module,SD03,Touch Control	Display	40	71162152
64	Spare parts set – retrofit kit FHX50	further parts		71248380
65	Display module, SD02, push buttons	Display	40	XPD0024-
66	Display module, SD03, Touch Control	Display	40	XPD0025-
67	Cable FHX50, FHX50B, 5m	further parts		71206552
68	Cable FHX50, FHX50B, 10m	further parts		71206554
69	Cable FHX50, FHX50B, 20m	further parts		71206555
70	Cable FHX50, FHX50B, 30m	further parts		71206556
71	Transmitter electronics FHX50	further parts		71197334
72	M12-female plug connector, VA	further parts		71296840
73	Probe FMP51 w/o process connection	Sensoric	55	XPF0005-
74	O-ring 7.59x 2.62, FKM Viton, 5 pieces	Sealing	57	71114459
75	O-ring 7.59x 2.62 EPDM, 5 pieces	Sealing	57	71114460
76	O-ring 7.59x 2.62 FFKM Kalrez, 1 piece	Sealing	57	71114461
77	O-ring 10.77x 2.62 EPDM, 5 pieces	Sealing	57	71114462
78	O-ring 10.77x 2.62 FKM Viton, 5 pieces	Sealing	57	71114463
79	O-ring 10.77x 2.62 , FFKM Kalrez, 1piece	Sealing	57	71114464
80	O-ring 10.77×2.62 FVMQ, 5 pieces	Sealing	57	71294076
81	Probe FMP51 w/o process connection	Sensoric	55	XPF0005-
82	Weight FMP5x, rope 4mm 1/6″, 316L	Weights	56	71114452
83	Rope centering disc d=75mm/2,95″, 316L	further parts		71536664
84	Rope centering weight d=45mm,h=60mm,316L	further parts		71536668
85	Rope centering weight d=75mm,h=30mm,316L	further parts		71536671
86	Rope centering weight d=95mm,h=30mm,316L	further parts		71536672
87	HF-Coax cable L=3m/9ft, plug	Cable/cable accessories	70	71114823
88	HF-Coaxcable L=6m/18ft, plug	Cable/cable accessories	70	71235564
89	HF-Coaxcable L=9m/27ft, plug	Cable/cable accessories	70	71235578
90	Threaded pin M10x1, AlloyC22	Fixing	54	71156686
91	Nordlock washer DIN25201-A4, M10, 5 pcs.	Fixing	59	71023427
92	Spare RFID TAG	further parts		XPRFID-
93	Sealing ring G3/4, 27×32, FA, 5 pcs.	Sealing	57	71185027
94	Sealing ring G1-1/2, 48×55 FA, 5 pcs.	Sealing	57	52014047
95	Spare IEC TAG	further parts		XPSPEC-
96	Overvoltage protection (OVP10),1-Channel			71128617
97	Overvoltage protection (OVP20),2-Channel			71128619
98	Rope centering star, PEEK, 48-95mm, 1 pc			71373490
99	Rope centering star, PEEK, 48-95mm, 5 pc			71373492
100	Rod centering star d=48-95mm, PEEK			71381909
101	Bluetooth module (BT10)			71377355
102	Mountingset for remote sensor			71102216
103	Weather protection cov.GT18/GT19/GT20			71132889
104	Weather prot. cover GT18/GT19/GT20, 316L			71162242
105	Centering star PEEK 48-95mm/1.89-3.74in			71069064
106	Centering star PFA 37mm/16mm			71069065
107	Centering star PFA 37mm/12mm			71157270
108	Centering star PFA 16.4mm/8mm			71162453
109	Isolation tie down of the 4mm rope probe			52014249
110	Screw in flange FAX50			FAX50-
