The standard sensor for highest demands for level measurement in bulk solids

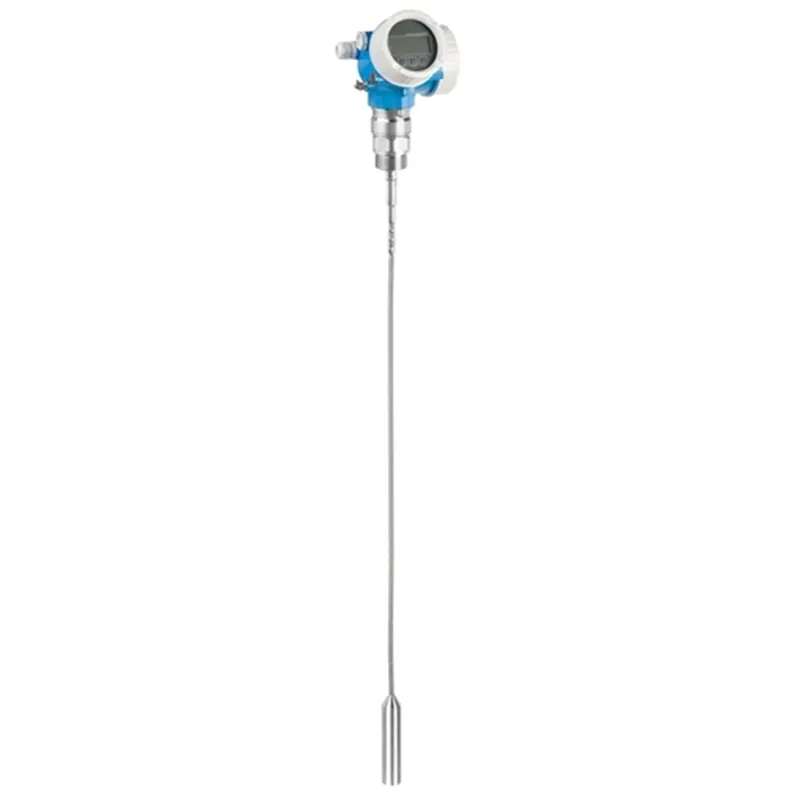

Levelflex FMP57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. Providing rope probes up to a length of 45m the FMP57 is also suited to measurements in high silos. Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
| Description | Category | Drawing No. | Order Code | |
| 1 | Housing filter 316L, GT18, 1 set | Filter | 19 | 71115174 |
| 2 | Housing filter Brass/Ni GT19/20, 1 set | Filter | 19 | 71115175 |
| 3 | Set housing securing clamps | Housing/housing accessories | 17 | 71115176 |
| 4 | Cover GT18 316L, HNBR | Cover | 20 | 71110281 |
| 5 | Cover GT18 316L, sight glass, HNBR | Cover | 20 | 71110282 |
| 6 | Cover GT19 PBT, sight glass, EPDM | Cover | 20 | 71110292 |
| 7 | Cover GT19 PBT, EPDM | Cover | 20 | 71110293 |
| 8 | Cover GT20 Alu, sight glass, HNBR | Cover | 20 | 71110297 |
| 9 | Cover GT20 Alu, HNBR | Cover | 20 | 71110299 |
| 10 | Cover GT18 316L, terminal Ex d, HNBR | Cover | 25 | 71110284 |
| 11 | Cover GT18 316L, terminal Ex, HNBR | Cover | 25 | 71110291 |
| 12 | Cover GT18 316L, Terminal, OVP, HNBR | Cover | 25 | 71185516 |
| 13 | Cover GT19 PBT, Terminal Ex, EPDM | Cover | 25 | 71110295 |
| 14 | Cover GT19 PBT, Terminal, OVP, EPDM | Cover | 25 | 71185518 |
| 15 | Cover GT20 Alu, Terminal Ex, HNBR | Cover | 25 | 71110301 |
| 16 | Cover GT20 Alu, Terminal Ex d, HNBR | Cover | 25 | 71110302 |
| 17 | Cover GT20 Alu, Terminal, OVP, HNBR | Cover | 25 | 71185517 |
| 18 | Sealing set GT18/GT19/GT20, EPDM, HNBR | Sealing | 65 | 71110303 |
| 19 | Plug M12, IP66/68 NEMA4X/6P, ProToF | further parts | 71450381 | |
| 20 | Blind plug M20, Alu, Ex d | further parts | 14 | 71679714 |
| 21 | Blind plug M20, 316L, Ex d | further parts | 14 | 71679712 |
| 22 | Electronics Levelflex FMP5x | Electronic | 30 | XPF0001- |
| 23 | Electronics Levelflex FMP5x | Electronic | 30 | XPF0001- |
| 24 | I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1 | I/O module | 34 | 71108591 |
| 25 | I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1 | I/O module | 34 | 71108591 |
| 26 | I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2 | I/O module | 34 | 71187812 |
| 27 | I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1 | I/O module | 34 | 71108591 |
| 28 | I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1 | I/O module | 34 | 71108591 |
| 29 | I/O module Level, 2-wr.4-20mA,HART,Ex,V1 | I/O module | 34 | 71108595 |
| 30 | I/O module 2-wire, 4-20mA, HART, Ex, V2 | I/O module | 34 | 71108594 |
| 31 | I/O module Level, 2-wr.4-20mA,HART,Ex,V1 | I/O module | 34 | 71108595 |
| 32 | I/O module Level, 2-wr.4-20mA,HART,Ex,V1 | I/O module | 34 | 71108595 |
| 33 | I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1 | I/O module | 34 | 71108599 |
| 34 | I/O mod.Level,2-wr2x4-20mA,HART,Ex,V1 | I/O module | 34 | 71108601 |
| 35 | I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2 | I/O module | 34 | 71207474 |
| 36 | I/O module, 2-wire, PA, PFS, Ex, V1 | I/O module | 34 | 71108603 |
| 37 | I/O module, 2-wire, PA/FF, PFS, Ex, V2 | I/O module | 34 | 71164940 |
| 38 | I/O module, 2-wire, PA, PFS, Ex, V1 | I/O module | 34 | 71108603 |
| 39 | I/O module, 2-wire, PA/FF, PFS, Ex, V2 | I/O module | 34 | 71164940 |
| 40 | I/O module, 2-wire, PA, PFS, Ex, V1 | I/O module | 34 | 71108603 |
| 41 | I/O module, 2-wire, PA/FF, PFS, Ex, V2 | I/O module | 34 | 71164940 |
| 42 | I/O module, 2-wire, PA/FF, PFS, Ex, V2 | I/O module | 34 | 71164940 |
| 43 | I/O modLevel,4-wrDC,4-20mA,HART,Ex,V1 | I/O module | 34 | 71108604 |
| 44 | I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2 | I/O module | 34 | 71207473 |
| 45 | I/Omod.Level,4-wrAC,4-20mA,HART,Ex,V1 | I/O module | 34 | 71108605 |
| 46 | I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2 | I/O module | 34 | 71207475 |
| 47 | M12-female plug connector, VA | further parts | 71296840 | |
| 48 | Transmitter electronics FHX50 | further parts | 71197334 | |
| 49 | Spare parts set – retrofit kit FHX50 | further parts | 71248380 | |
| 50 | Terminal set 4-wire, I/O module | Terminals | 37 | 71110279 |
| 51 | Terminal set 2-wire, I/O module | Terminals | 37 | 71110280 |
| 52 | Kit Display module,SD02,push buttons | Display | 40 | 71109658 |
| 53 | Kit Display module,SD03,Touch Control | Display | 40 | 71162152 |
| 54 | Display module, SD02, push buttons | Display | 40 | XPD0024- |
| 55 | Display module, SD03, Touch Control | Display | 40 | XPD0025- |
| 56 | Probe FMP57 w/o process connection | Sensoric | 55 | XPF0017- |
| 57 | Probe FMP57 w/o process connection | Sensoric | 55 | XPF0017- |
| 58 | Weight FMP5x, rope 4mm 1/6″, 316L | Weights | 56 | 71114452 |
| 59 | Weight FMP57, rope 6mm 1/4″, 304 | Weights | 56 | 71114453 |
| 60 | Nut, wrench size 14, M10 316L | Fixing | 58 | 71114458 |
| 61 | Nordlock washer DIN25201-A4, M10, 5 pcs. | Fixing | 59 | 71023427 |
| 62 | HF-Coax cable L=3m/9ft, plug | further parts | 70 | 71114823 |
| 63 | HF-Coaxcable L=9m/27ft, plug | further parts | 70 | 71235578 |
| 64 | HF-Coaxcable L=6m/18ft, plug | further parts | 70 | 71235564 |
| 65 | Spare RFID TAG | further parts | XPRFID- | |
| 66 | Sealing ring G1-1/2, 48×55 FA, 5 pcs. | further parts | 57 | 52014047 |
| 67 | Overvoltage protection (OVP10),1-Channel | 71128617 | ||
| 68 | Overvoltage protection (OVP20),2-Channel | 71128619 | ||
| 69 | Bluetooth module (BT10) | 71377355 | ||
| 70 | Mountingset for remote sensor | 71102216 | ||
| 71 | Weather protection cov.GT18/GT19/GT20 | 71132889 | ||
| 72 | Weather prot. cover GT18/GT19/GT20, 316L | 71162242 | ||
| 73 | Isolation tie down of the 6mm rope probe | 52014250 | ||
| 74 | Isolation tie down of the 4mm rope probe | 52014249 | ||
| 75 | Screw in flange FAX50 | FAX50- |
