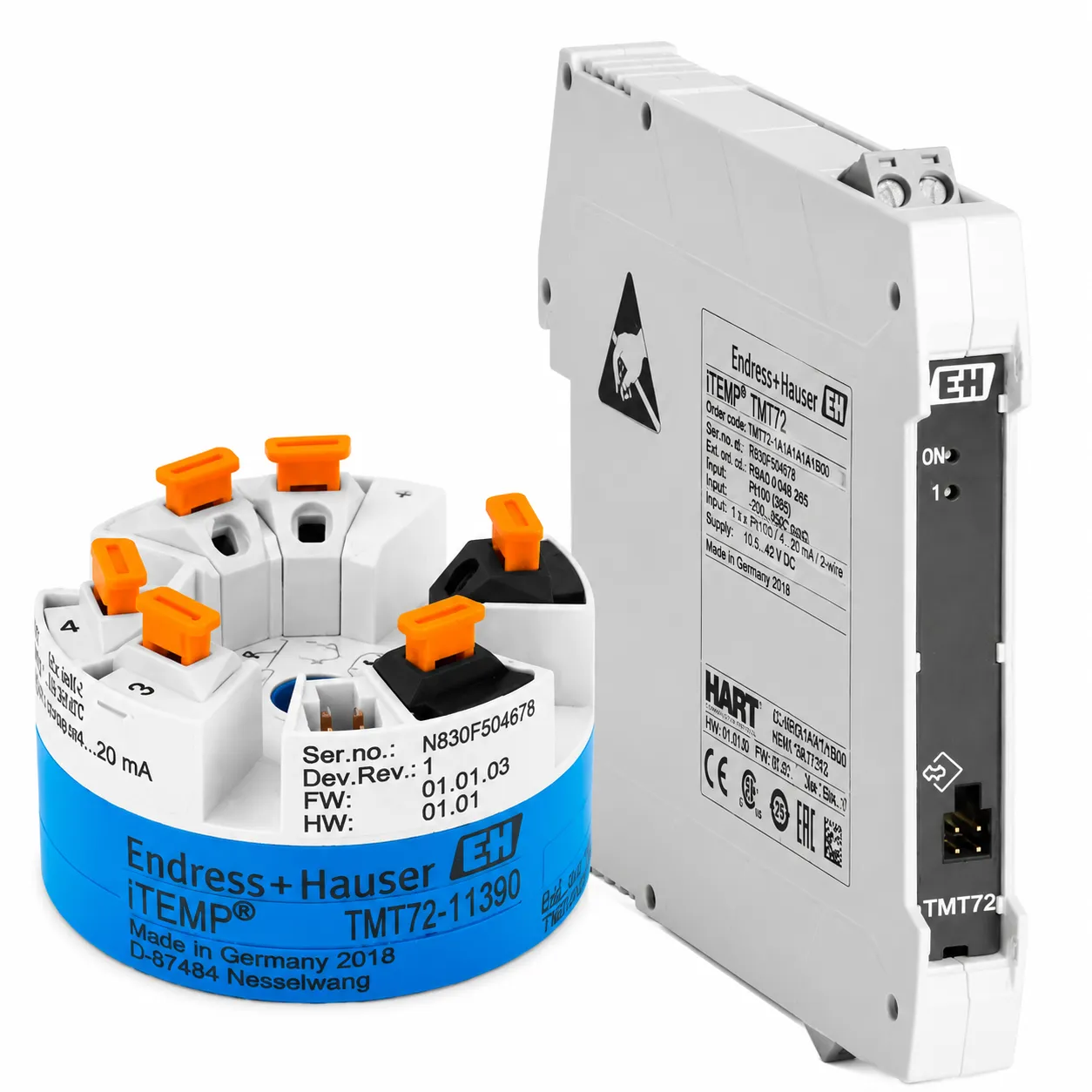

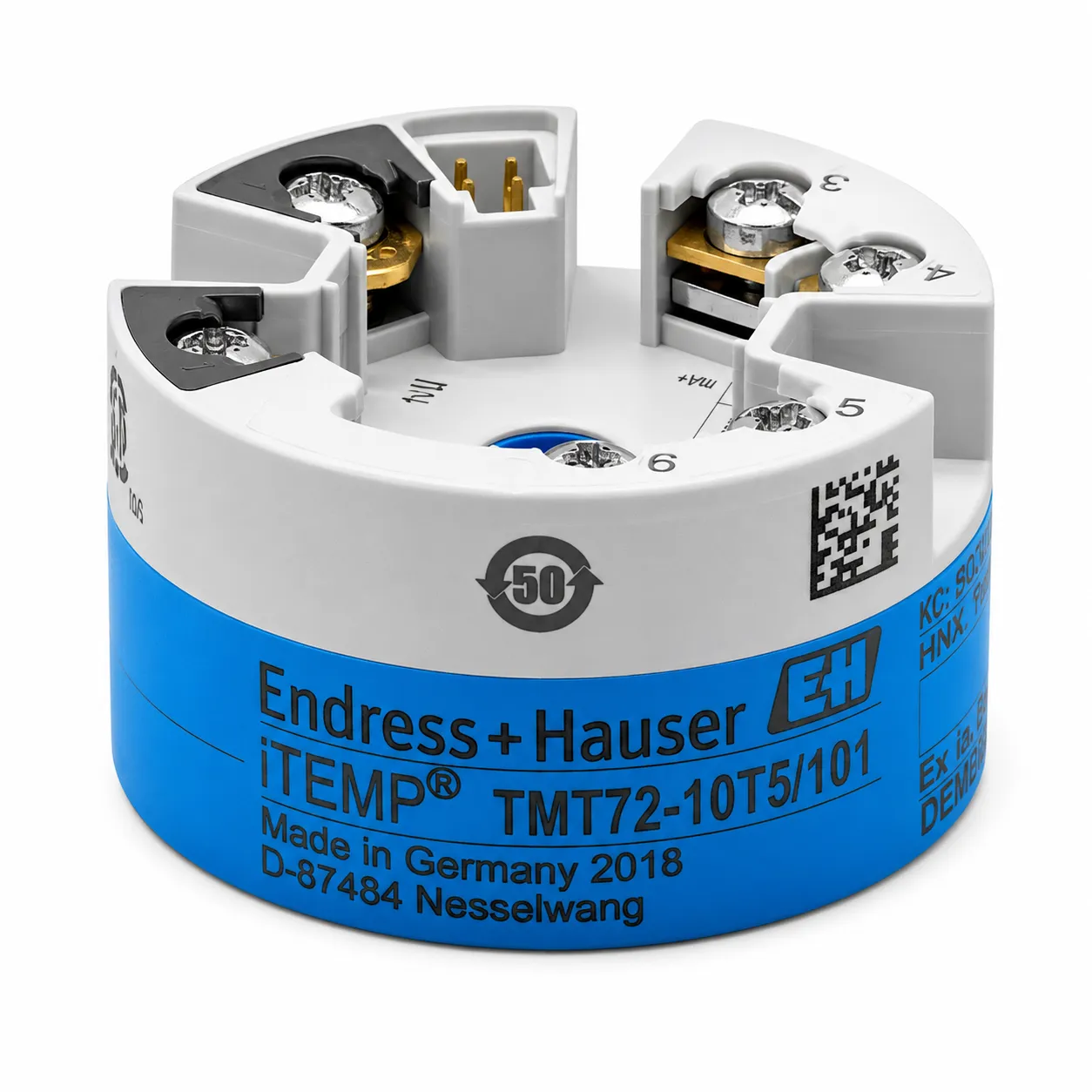

HART® temperature transmitter as head, field
or DIN rail device with one universal sensor
input suitable for use in hazardous areas
Accuracy (Pt100, -50…200 °C) <= 0,1 K (Pt100, -58…392 °F) <=0,18 °F
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth interface for remote operation via Endress+Hauser SmartBlue App
values and configuration via E+H SmartBlue (app), optional®
| Description | Category | Order Code | |
| 1 | Terminal Head TA30A | further parts | TA30A- |
| 2 | Terminal Head TA30D | further parts | TA30D- |
| 3 | Spare parts kit sealing TA30A/TA30D | further parts | 71182602 |
| 4 | Terminal Head TA30H | further parts | TA30H- |
| 5 | Set O-ring 74×3 75o VMQ Silicon (5 pcs.) | further parts | 71600564 |
| 6 | Blanks (blind) NPT1/2, AlMgSiBi | further parts | 51004490 |
| 7 | Fixing kit cpl. TMT8x/7x (european) | further parts | 71044061 |
| 8 | Fixing kit cpl. TMT8x/7x USA(american) | further parts | 71044062 |
| 9 | TID10 Service cable | further parts | 71086650 |
| 10 | Commubox FXA195 | further parts | FXA195- |
| 11 | Spare RFID TAG | further parts | XPRFID- |
| 12 | Cover latch spares kit field housing | 51004948 | |
| 13 | Plug for Thermometer + Transmitter | XPT0002- | |
| 14 | Cable gland NPT1/2, D4.5-8.5 IP68 | 51006845 | |
| 15 | Cable gland M20x1.5 ATEX/IECEx | 71638066 | |

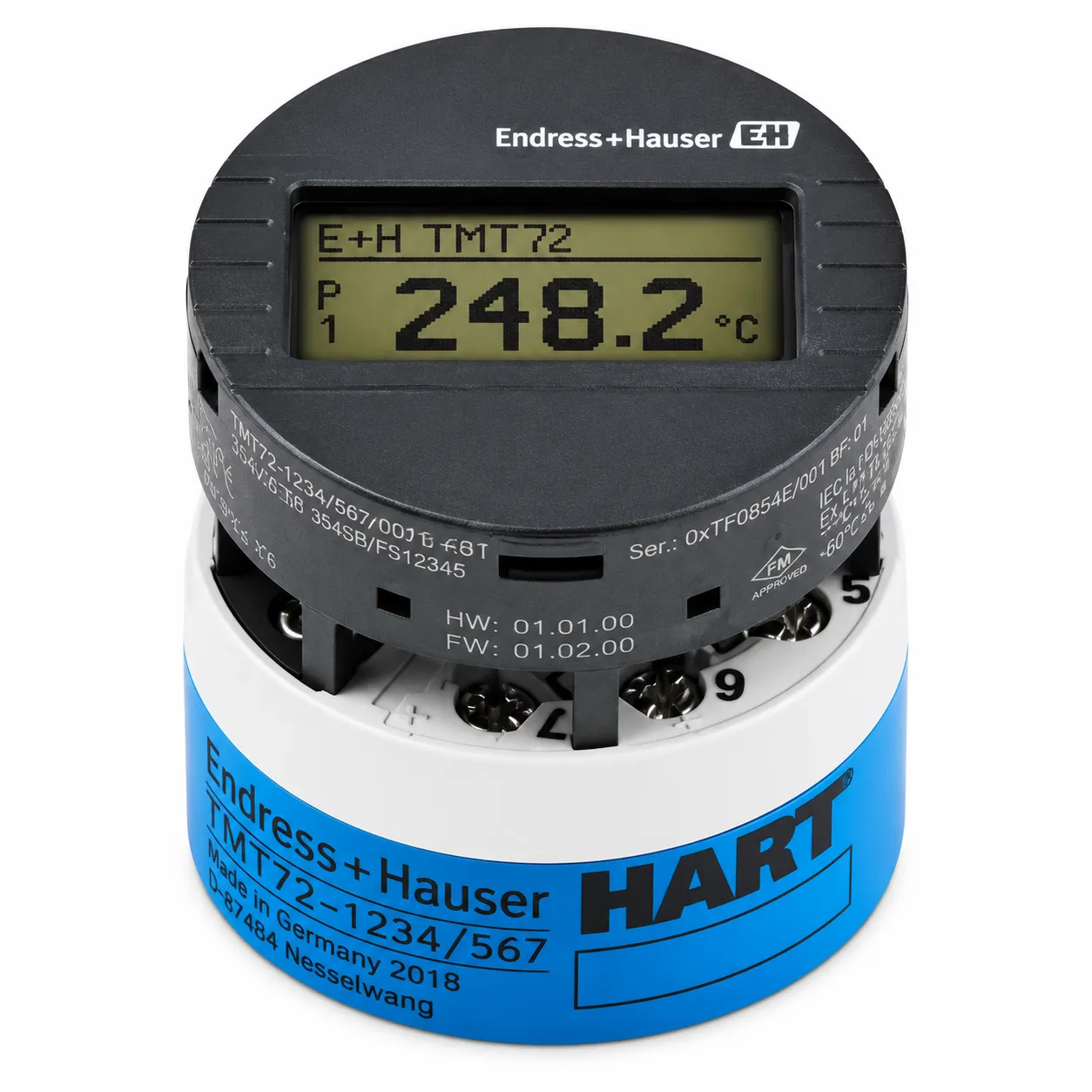

| 16 | Display Unit Head Transmitter | TID10- | |
| 17 | Adapter DIN rail mounting | 71528231 | |
| 18 | Set mounting bracket wall cpl. W06 neutr | 71274372 | |
| 19 | Set mounting bracket pipe W06 neutral | 71274384 | |
| 20 | Spare part kit screw terminals TMT7x/3x | 71564510 | |
| 21 | Spare part kit push-in termin. TMT7x/3x | 71564518 |
