Proven in the field, particularly compact and perfectly suitable for hygienic applications

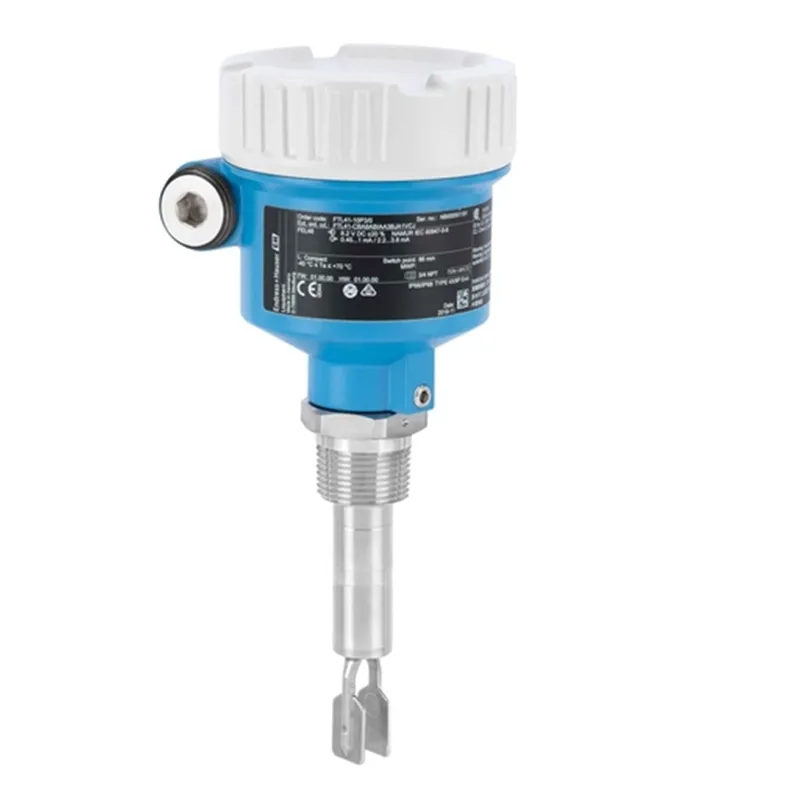

The Liquiphant FTL43 is a point level switch for liquids and part of the Compact Line. The product line is especially developed for hygienic applications and combines compact design with full performance. The proven vibronic technology works reliably in all pumpable liquids, without media adjustment. The Liquiphant FTL43 is distinguished by its ease of use with plug & play functionality and a wide range of digital communication options.
| Description | Category | Drawing No. | Order Code | |
| 1 | Profile gasket 29x36x3.7, FDA, 5 pcs. | Sealing | 21 | 52014424 |
| 2 | Profile gasket 29x36x3.7, FDA, USP, 5pcs | Sealing | 21 | 71075662 |
| 3 | O-ring 21.89×2.62 VMQ, FDA, 5 pcs. | Sealing | 21 | 52014473 |
| 4 | O-ring 28.17×3.53 VMQ, FDA, 5 pcs. | Sealing | 21 | 52014472 |
| 5 | O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs. | Sealing | 21 | 71140668 |
| 6 | Flat seal 50x65x1 PTFE, FDA, 5 pieces | Sealing | 21 | 52024228 |
| 7 | TAG-holder metal | Miscellaneous | 89 | 71655762 |
| 8 | Spare RFID TAG | further parts | XPRFID- | |
| 9 | Spare IEC TAG | further parts | XPSPEC- | |
| 10 | M12-female plug connection, 90 deg, IP69 | 71638253 | ||
| 11 | M12-female plug connec., straight, IP69 | 71638191 | ||
| 12 | M12-female plug connec., 90deg, 5m cable | 52024216 | ||
| 13 | M12-female plug connec., 100deg,5m cable | 52010285 | ||
| 14 | Weld-in adapter RD52, 316L | 52001047 | ||
| 15 | Weld-in adapter RD52, 316L, 3.1 | 52006909 | ||
| 16 | Weld-in adapter G3/4, d=55, 316L | 52001052 | ||
| 17 | Weld-in adapter G3/4, d=55, 316L, 3.1 | 52011897 | ||
| 18 | Weld-in adapter G1, adjustable, 316L | 52001221 | ||
| 19 | Weld-in adapter G1, adjustable,316L, 3.1 | 52011898 | ||
| 20 | Weld-in adapter G1, d=53, 316L, 3.1 | 71093129 | ||
| 21 | Weld-in adapter G1, d=53, 316L | 71258358 | ||
| 22 | Weld-in adapter G1, d=60, 316L | 52001051 | ||
| 23 | Weld-in adapter G1, d=60, 316L, 3.1 | 52011896 | ||
| 24 | Welding dummy for weld-in adap. G1,brass | 71675410 | ||
| 25 | Welding dummy for weld-in ad. RD52,brass | 71675411 | ||
| 26 | Blind plug for weld-in adap.G1, 316L.3.1 | 71675413 | ||
| 27 | Blind plug for weld-in ad. RD52,316L,3.1 | 71675414 | ||
| 28 | Weld-in adapter DRD DN50, 316L | 52002041 | ||
| 29 | Weld-in adapter DRD DN50, 316L, 3.1 | 52011899 |
