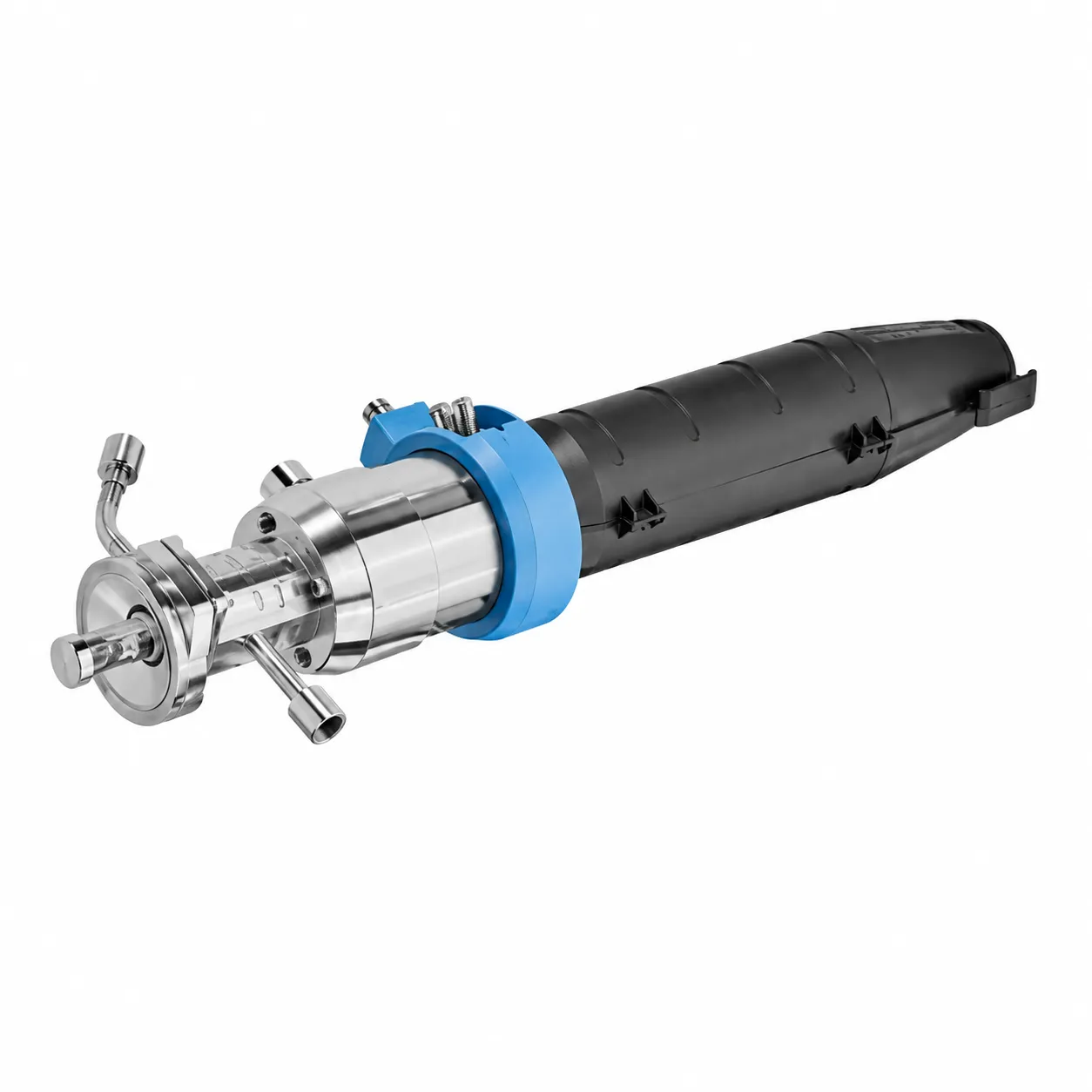

Manual or automatic retractable assembly Cleanfit CPA875 | Endress Hauser E+H

Sterilizable assembly for the life sciences and food & beverage industries

Request a Quote

Specs at a glance

  • Process temperature -10 to 140 °C (14 to 284 °F)
  • Process pressure Pneumatic drive: 16 bar up to 140 °C (232 psi up to 284 °F) Manual drive: 8 bar up to 140 °C (116 psi up to 284°F)

Field of application

Completely sterilizable, the Cleanfit CPA875 retractable assembly guarantees maximum protection from contamination making it ideal for use in life science and food & beverage applications. Fully certified to 3-A and EHEDG standards, compliant with ASME BPE, and made from FDA-recommended materials, the CPA875 is the right choice where hygiene counts.

Benefits

  • Highest process safety: The patented design of the dynamic sealing prevents contamination.
  • Simple operation: Remove, sterilize and calibrate the sensor while the process is running – aseptic and hygienically safe.
  • No cross-contamination: Hygienic design according to 3-A, EHEDG and ASME BPE as well as sealings according to FDA and USP class VI.
  • Flexible: Individual adaptation to your process requirements based on variety of process connections.
  • Optional double service chamber: Sealing between sterile and non sterile part moves dynamically with the sensor guide – just like in a syringe. The sterile space and the process medium remain untouched.

Spare parts & accessories

Download Datasheet
