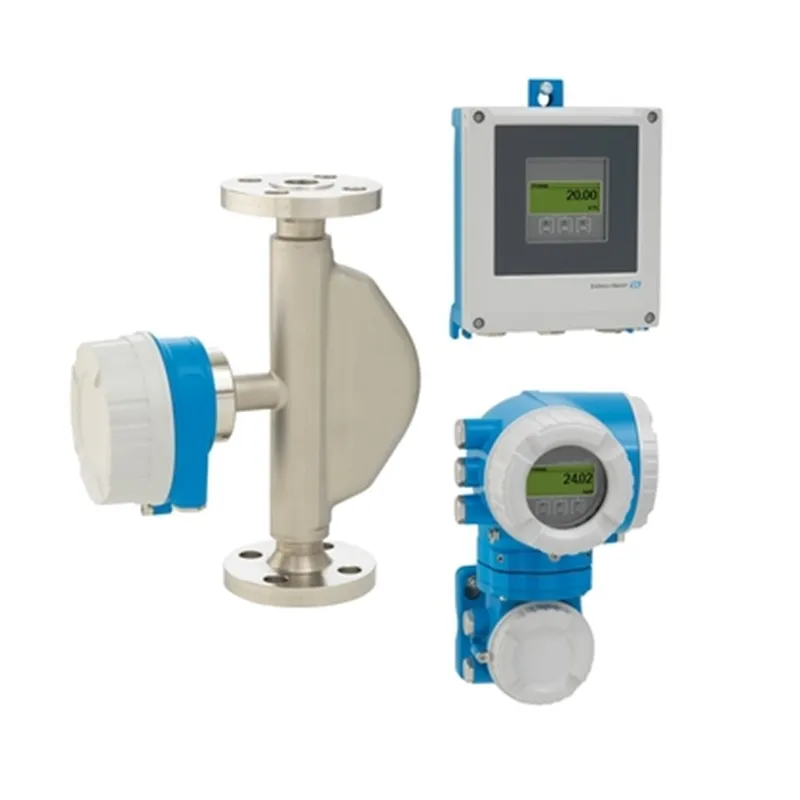

Proline Promass E 500 Coriolis flowmeter | Endress Hauser E+H

Mid-range Coriolis flowmeter as remote version with up to 4 I/Os

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option) Volume flow (liquid): ±0.15 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 180 000 kg/h (0 to 6615 lb/min)
Medium temperature range –40 to +150 °C (–40 to +302 °F)
Max. process pressure PN 100, Class 600, 63K
Wetted materials Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L)

Field of application

The robust Promass E has a long-standing reputation as a reliable solution accurately measuring liquids and gases in a wide range of standard applications in various industries. With its innovative remote transmitter Promass E 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.

Benefits

Cost-effective – multipurpose device; an alternative to conventional volumetric flowmeters

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in-/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	ISEM electronic module, Promass 300/500	Electronic	33	XPD0028-
2	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
3	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
4	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
5	Display module, 300/500/DKX001	Display	50	XPD0031-
6	Kit power supply, AC 100…240V, Ex	Power supply	31	71323007
7	Kit power supply, DC 24V, Ex	Power supply	31	71323008
8	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
9	Kit main elec. extender, 500 dig., Ex	Electronic (periphery)	47	71323012
10	Kit main elec.extender,500 dig., Non-haz	Electronic (periphery)	47	71323013
11	Kit ISEM extender, 500 digital, Ex	Electronic (sensor)	36	71323015
12	Kit T-DAT, 100/300/400/500	Memory	39	71185788
13	Kit module cartridge, 300/500, Ex	Electronic (periphery)	37	71323010
14	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71323005
15	Kit ISEM ribbon cable, 500 digital	Connection (electrical)	46	71323006
16	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
17	Kit conn.terminal option B, 300/500, Ex	Terminal module	45	71323076
18	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
19	Kit terminal option A, 500 dig., Non-haz	Terminal module	45	71323077
20	Kit terminal option B, 500 dig., Non-haz	Terminal module	45	71323078
21	Kit terminal option C, 500 dig., Non-haz	Terminal module	45	71327820
22	Kit connection board, Promass 500, Ex	Electronic (sensor)	44	71323268
23	Kit connec.board, Promass 500, Ex, -50oC	Electronic (sensor)	44	71323269
24	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
25	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
26	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
27	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
28	Kit cover gasket, sight glass/blind	Sealing	70	71323026
29	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
30	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
31	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
32	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
33	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
34	Kit cover, wall mount, Alu, Ex	Cover	23	71323038
35	Kit cover, wall mount, Alu, -50oC, Ex	Cover	23	71323039
36	Kit cover gasket, wall mount, Ex	Sealing	75	71323042
37	Kit cover gasket, wall mount, -50oC, Ex	Sealing	75	71323043
38	Kit cover, alu, 400, 500 digital	Cover	20	71384170
39	Kit cover, polycarbonate	Cover	20	71408508
40	Kit 10 cover seals, alu, 400,500 digital	Sealing	70	71278078
41	Kit 10 cover seals, polycarbonate	Sealing	70	71278077
42	Kit cover, remote, Alu	Cover	24	71228796
43	Kit cover, remote, Alu, -50oC	Cover	24	71323050
44	Kit housing gaskets, remote, Alu	Sealing	73	71323051
45	Kit housing gaskets, remote, Alu, -50oC	Sealing	73	71323052
46	Kit cover, remote, stainless 1.4301	Cover	24	71323053
47	Kit cover, remote,stainless 1.4301,-50oC	Cover	24	71323054
48	Kit housing gaskets, remote, stainless	Sealing	73	71323057
49	Kit hous.gaskets, remote,stainless,-50oC	Sealing	73	71323058
50	Kit cover,ultra compact,stainless 1.4301	Cover	24	71185793
51	Kit cover, ultra compact, 1.4301, -50oC	Cover	24	71323060
52	Kit hous.gaskets,ultra compact,stainless	Sealing	73	71185799
53	Kit housing gasket, ultra compact, -50oC	Sealing	73	71323062
54	Kit interface gaskets, 300/500	Sealing	71	71323071
55	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
56	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
57	Kit protective cover option B,300/500,Ex	Miscellaneous	11	71323082
58	Kit securing clamp, screw	Housing/housing accessories	13	71276494
59	Kit plug M12, RJ45, L= 80mm	further parts		71450719
60	Spare RFID TAG	further parts		XPRFID-
61	Spare IEC TAG	further parts		XPSPEC-
62	Kit display protection, 400, 500 digital		82	71228792
63	Kit weather prot.cover, 400/800/500 dig.		87	71343504
64	Kit weather protection cover, 300/500		87	71343505
65	Pipe mounting kit, 400/800/500 digital			71346427
66	Pipe Mounting kit,Transmitter 10/500			71346428
67	Kit wireless antenna extended range			71351317
68	Transmitter Promass 500, 8X5BXX			8X5BXX-
69	Promass 500, sensor cable set			DK8012-
70	Sensor cable set, Promass 500			DK8013-
71	Promass sensor, heating jacket, DK8003			DK8003-
