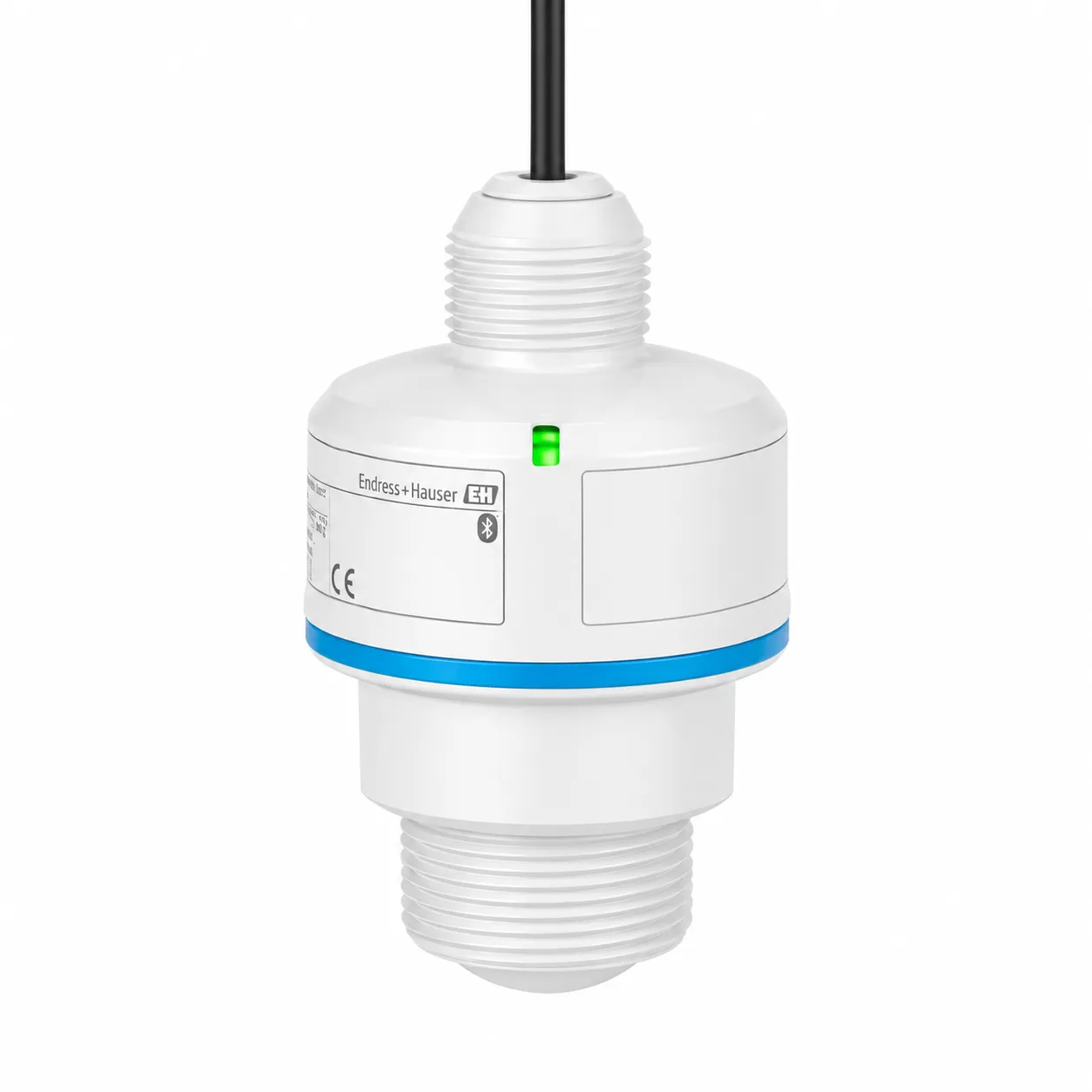

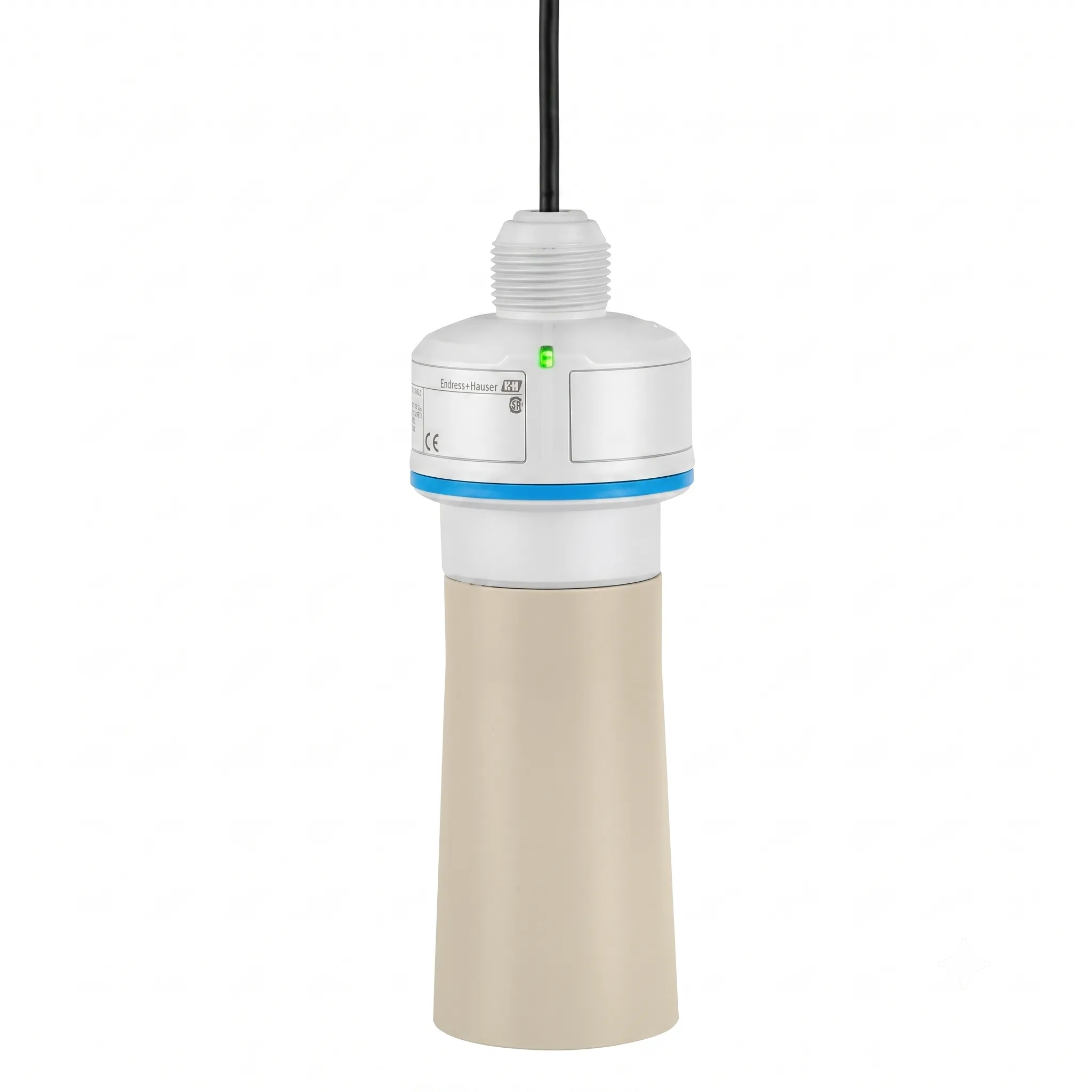

Micropilot FMR20B – radar sensor for basic applications | Endress Hauser E+H

Simple and efficient level measurement in liquids and solids

Request a Quote

Specs at a glance

  • Accuracy Liquids: +/- 2 mm (0.08″) Solids: +/- 4 mm (0.16″)
  • Process temperature -40…+80°C (-40…+176°F)
  • Process pressure / max. overpressure limit -1…3 bar (-14,5…43 psi)
  • Max. measurement distance 40 mm/ 1-1/2″: 20m (65.6 ft) 80 mm/ 3″: 30m (98.4 ft)
  • Main wetted parts PVDF, PBT/PC

Field of application

The Micropilot FMR20B offers continuous non contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.

Benefits

  • Fast commissioning and operation thanks to guided setup sequences (wizards)
  • Bluetooth connectivity enables easy, reliable and encrypted wireless remote access
  • Device identification during Bluetooth connection thanks to “It’s me function” (LED flashing) and status indication via LED
  • Simple device selection thanks to clear segmentation and easy configuration
  • Heartbeat Technology allows on-demand verification and diagnostics guided through the wizard without process interruption

Spare parts & accessories

DescriptionCategoryOrder Code
1Flat gasket EPDM 47x58x2, 5 piecesSpare parts71107559
2Counter nut G1″, PASpare parts71693241
3Hexagon nut (SW70) G2, bk, PCSpare parts52000598
4Mounting nut G1-1/2, PCSpare parts52014146
5Spare IEC TAGSpare partsXPSPEC-

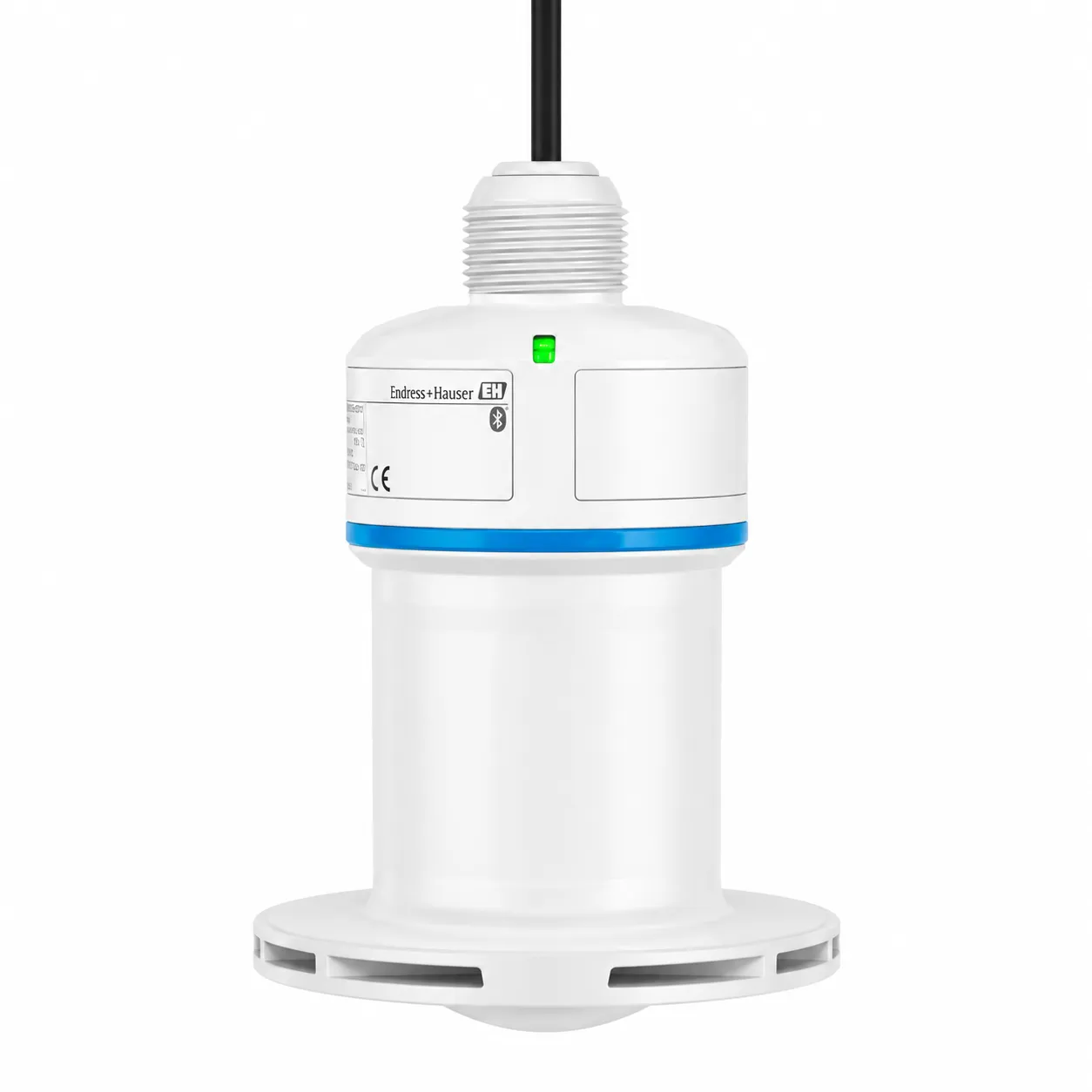

6Flooding protection tube 40mmSpare parts71091216
7Flooding protection tube 80 mmSpare parts71662270
8Adapter Uni G1-1/2″>G2″, PVCSpare parts71662415
9Adapter Uni MNPT 1-1/2″>MNPT 2″Spare parts71668921
10Mounting bracket, 75mm, G1″, NPT1″Spare parts71325079
11Mounting bracket, 75mm, G1-1/2″, NPT1-1/2″Spare parts71662419
12Mounting bracket, 200mm, G1″/NPT1″Spare parts71662421
13Mounting bracket, 200mm, G1-1/2″, NPT1-1/2″Spare parts71662423
14Swiveling mounting bracket, sewerSpare parts71429910

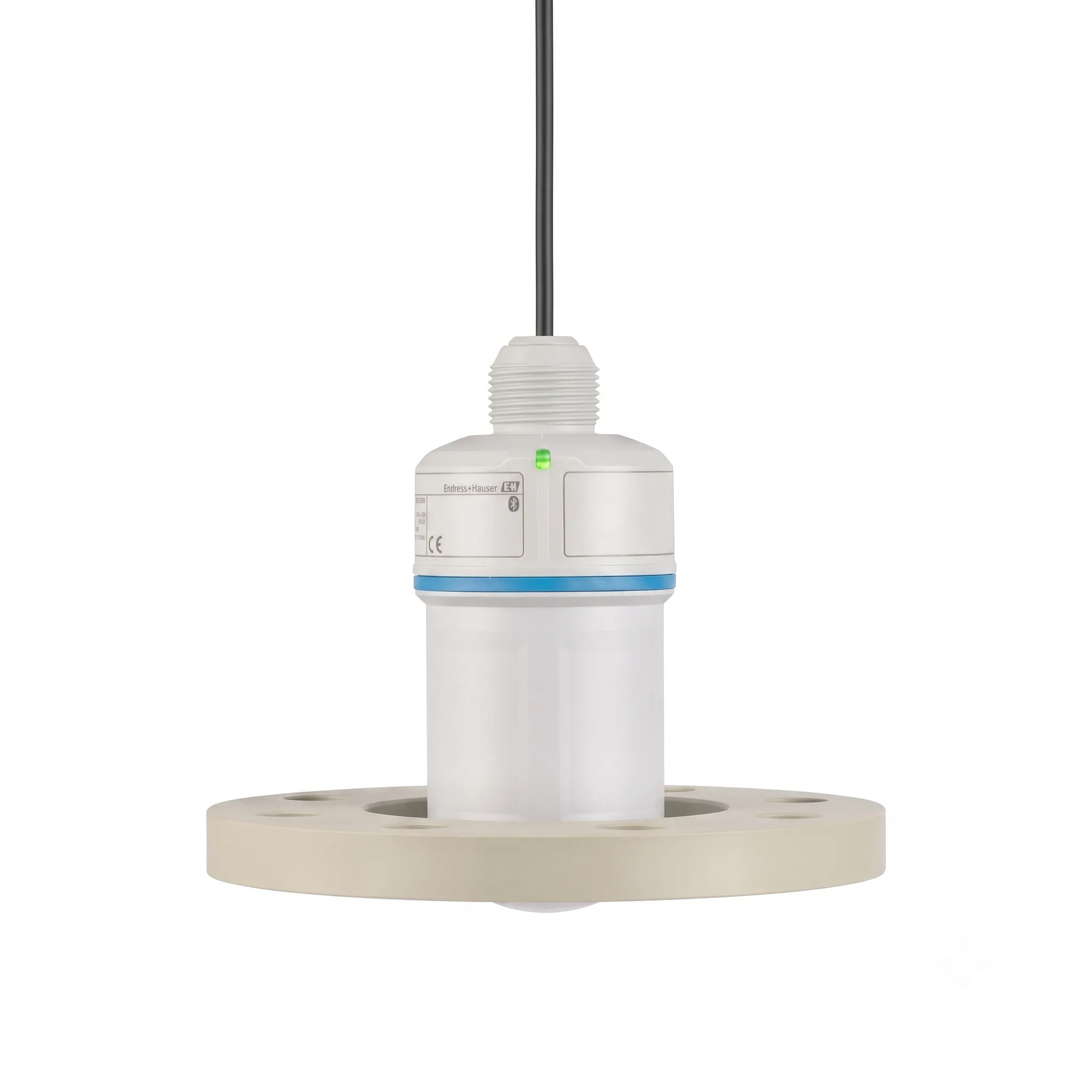

15UNI slip on flange 3″/DN80/80, PPSpare parts71162777
16UNI slip on flange 4″/DN100/100, PPSpare parts71162778
17UNI slip on flange 6″/DN150/150, PPSpare parts71162780
18Sensor support 500mm, 316LSpare parts71452315
19Sensor support 1000mm, 316L, US-sensorSpare parts71452316
20Sensor support 500mm, 316L, 1.5″sensorSpare parts71452318
21Sensor support 1000mm, 316L, 1.5″ sensorSpare parts71452319
22Bracket 700mm, 316LSpare parts71452327
23Bracket 1400mm, 316LSpare parts71452326
24Install. bracket 250x400x120 G1-1/2, 316LSpare parts71452324
25Install. bracket 250x400x120 G2, 316LSpare parts71452325
26Wall bracket for sensor support, 316LSpare parts71452323
27Weather protect. cover G1″/NPT1″ PBT/PCSpare parts71662413
28Weather protection cover compact PBT/PCSpare parts71662414
29Mounting device IBC tank, G1-1/2″Spare parts71770026
30Mounting device IBC tank, NPT 1-1/2″Spare parts71775272
31Adapter G1-1/2″ > Clamp 1-1/2″, 316LSpare parts71775274
32Adapter NPT 1-1/2″ > Clamp 1-1/2″, 316LSpare parts71775276
33Adjustable flange, G1-1/2″Spare parts71770996
34Adjustable flange, NPT 1-1/2″Spare parts71775277
35Screw in flange FAX50Spare partsFAX50-
