Reliable measurement of hydrostatic level and differential pressure

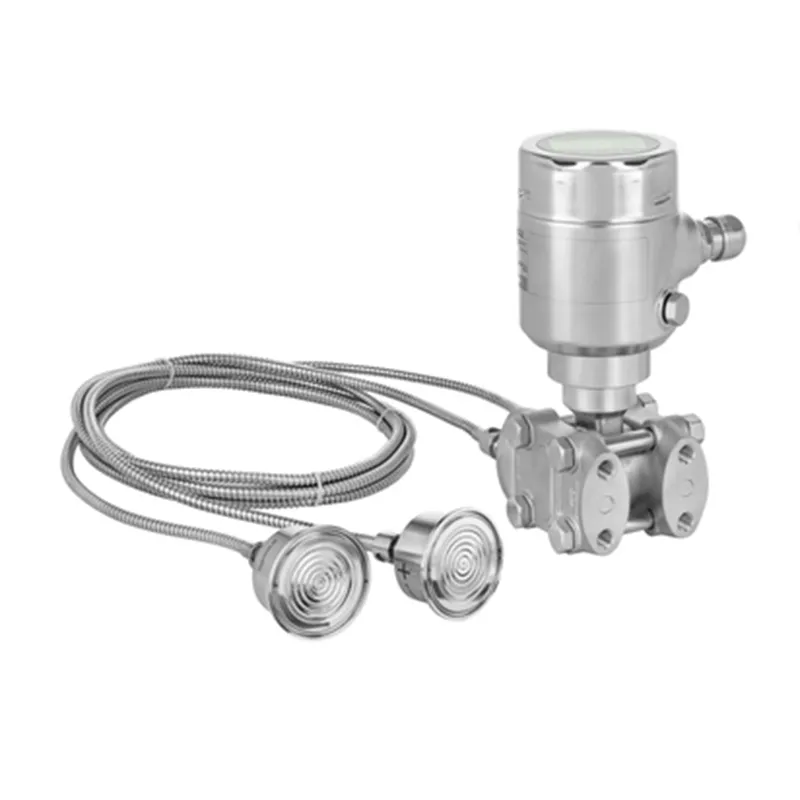

Deltabar PMD63B is a high-precision differential pressure transmitter with metal sensor for accurate hydrostatic level and differential pressure measurement in liquids and gases. It is available with diaphragm seals on one or both sides, and capillaries further enhance its adaptability across a wide range of applications. The integrated TempC Membrane ensures reliable measurements by effectively compensating for temperature fluctuations
| Description) | 类别 | Drawing No. | 订单代码 | |
| 1 | Blind plug, M20, 316L, o-ring EPDM | Housing/housing accessories | 14 | 71487198 |
| 2 | Blind plug, M20, Alu, o-ring EPDM | Housing/housing accessories | 14 | 71487199 |
| 3 | Blind plug M20, 316L, Ex d | Housing/housing accessories | 14 | 71679712 |
| 4 | Blind plug M20, Alu, Ex d | Housing/housing accessories | 14 | 71679714 |
| 5 | Blind plug, NPT1/2, Alu | Housing/housing accessories | 14 | 71487201 |
| 6 | Blind plug, NPT1/2, 316L | Housing/housing accessories | 14 | 71487203 |
| 7 | Blind plug NPT1/2, 316L, Ex d | Housing/housing accessories | 14 | 71679715 |
| 8 | Blind plug NPT1/2, Alu, Ex d | Housing/housing accessories | 14 | 71679718 |
| 9 | Cable gland M20, plastic | Housing/housing accessories | 15 | 71435135 |
| 10 | Cable gland blue M20, plastic | Housing/housing accessories | 15 | 71701449 |
| 11 | Cable gland M20, 316L | Housing/housing accessories | 15 | 71435137 |
| 12 | Cable gland M20, 316L, hygiene | Housing/housing accessories | 15 | 71651041 |
| 13 | M12 plug, 316L, HART, PA, housing side | Housing/housing accessories | 15 | 71435138 |
| 14 | M12 plug, 316L, APL, housing side | Housing/housing accessories | 15 | 71435139 |
| 15 | Ground terminal Housing L+P | Housing/housing accessories | 18 | 71474251 |
| 16 | Cover Alu, closed | Cover | 20 | 71435116 |
| 17 | Cover Alu, closed, Ex d | Cover | 20 | 71435118 |
| 18 | Cover red Alu, closed, Ex d | Cover | 20 | 71439086 |
| 19 | Cover Alu, sight glass | Cover | 20 | 71439089 |
| 20 | Cover Alu, sight glass, Ex d | Cover | 20 | 71439090 |
| 21 | Cover red Alu, sight glass, Ex d | Cover | 20 | 71439088 |
| 22 | Cover Alu, connection compartment, Ex d | Cover | 20 | 71435121 |
| 23 | Cover Alu, connection compartment | Cover | 20 | 71439085 |
| 24 | Cover red Alu, connect. compartment,Ex d | Cover | 20 | 71439087 |
| 25 | Cover sealing HNBR, -40oC, 5 pieces | Cover | 20 | 71435132 |
| 26 | Locking screw,cover connect. compartment | Housing/housing accessories | 24 | 71671687 |
| 27 | Locking screw,cover electr. compartment | Housing/housing accessories | 24 | 71671700 |
| 28 | Locking screw, cover sight glass | Housing/housing accessories | 24 | 71671706 |
| 29 | Electronics PMx6xB / PMx7xB | Electronic | 30 | XPP0018- |
| 30 | Terminal unit TU100B, Barrel, 1CH | Terminal module | 35 | 71435766 |
| 31 | Terminal unit TU101B, Barrel, 1CH, OVP | Terminal module | 35 | 71435767 |
| 32 | Segment display VU100A | Display | 40 | 71435772 |
| 33 | Segment display + Bluetooth VU101A | Display | 40 | 71435779 |
| 34 | Graphical display VU112 | Display | 40 | 71435775 |
| 35 | Graphical display + Bluetooth VU113 | Display | 40 | 71435781 |
| 36 | Vent valve 316L, 1/4 NPT, 2 pc. | Plug / blind plug | 63 | 71487312 |
| 37 | Cable PE,80inch, sep. housing PMXXXB | Cable/cable accessories | 70 | 71551044 |
| 38 | Cable PE,200inch, sep. housing PMXXXB | Cable/cable accessories | 70 | 71551080 |
| 39 | Cable PE,400inch, sep. housing PMXXXB | Cable/cable accessories | 70 | 71551083 |
| 40 | Cable FEP,200inch, sep. housing PMXXXB | Cable/cable accessories | 70 | 71551084 |
| 41 | Cable PE, 600inch, sep. housing PMXXXB | Cable/cable accessories | 70 | 71637914 |
| 42 | 备用RFID标签 | 其他零件 | XPRFID- | |
| 43 | Spare IEC TAG | 其他零件 | XPSPEC- | |
| 44 | O-ring Sanitary Tank Spud, 5 pieces | 57 | 71546174 | |
| 45 | Mounting bracket standard, 7/16-20 UNF | 71381907 | ||
| 46 | Weather protection cover, 316L, XW112 | 71438303 | ||
| 47 | Weather protection cover, plastic, XW111 | 71438291 |
