Cost-effective pressure transducer with fully welded design for the food & beverage industry
(275°F for 1h)

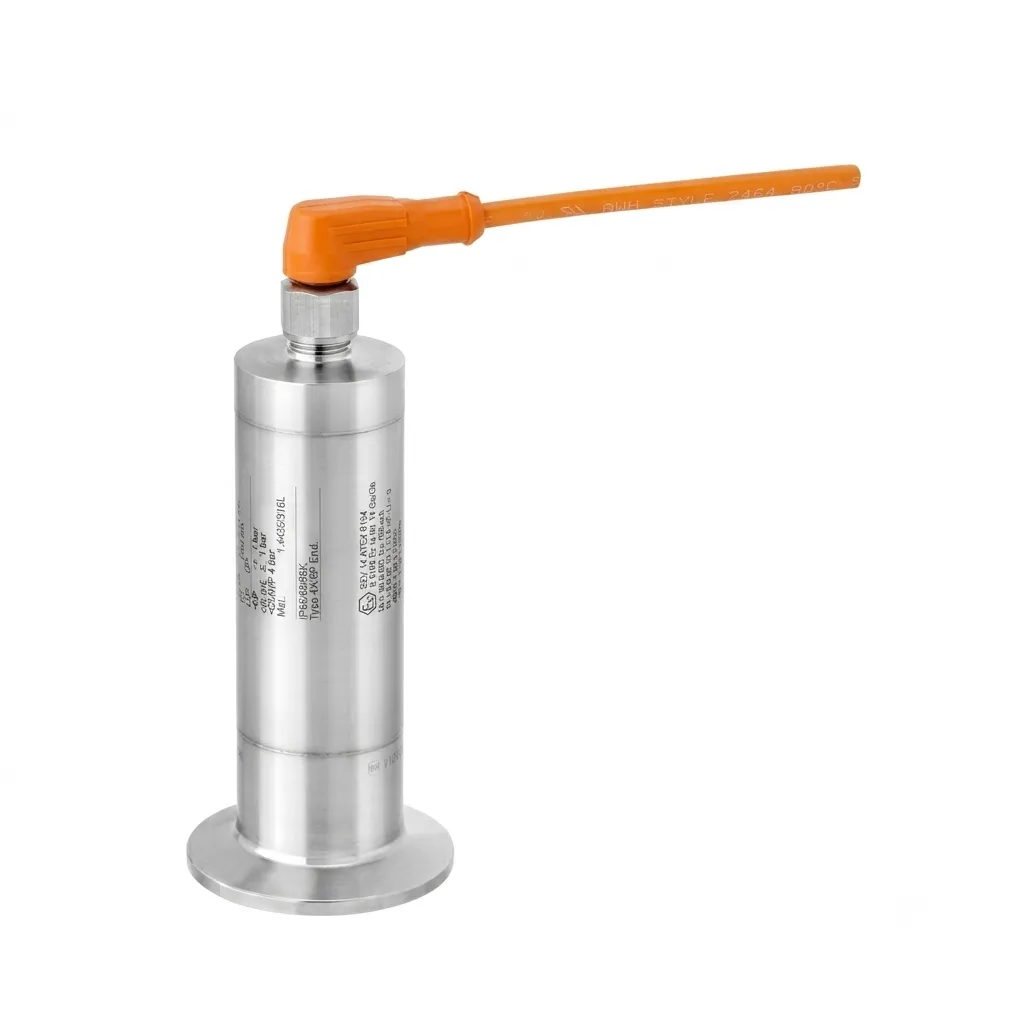

The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.
| Description | Category | Order Code | |
| 1 | Valve Plug ISO4400 M16, 4-pole | further parts | 71280307 |
| 2 | Valve plug ISO4400 NPTF1/2, 4-pole | further parts | 71280349 |
| 3 | O-Ring 15,54×2,62 FKM, FDA, 5 pcs. | further parts | 71337274 |
| 4 | Profile gasket silicone, 5 pieces | further parts | 52023572 |
| 5 | Profile gasket EPDM, 5 pieces | further parts | 71100719 |
| 6 | EPDM O-rings process adapter M24 | further parts | 52024267 |
| 7 | EPDM O-ring+316L backring, EHEDG,1 piece | further parts | 71431380 |
| 8 | EPDM O-ring, EHEDG, 5 pieces | further parts | 71545801 |
| 9 | O-ring 28.17×3.53 VMQ, FDA, 5 pcs. | further parts | 52014472 |
| 10 | O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs. | further parts | 71086102 |
| 11 | O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs. | further parts | 71140668 |
| 12 | M12-female plug connec.,90deg,cable side | 71114212 | |
| 13 | M12-female plug connec., 100deg,5m cable | 52010285 | |
| 14 | M12-female plug connector, cable side | 52006263 | |
| 15 | Display PHX20 | 52022914 | |
| 16 | Process adap. M24 Clamp 1…1 1/2″, 316L | 52023994 | |
| 17 | Process adap. M24 Clamp 1 1/2, 316L, 3.1 | 52024001 | |
| 18 | Process adapter M24 Clamp 2″, 316L | 52023995 | |
| 19 | Process adapter M24 Clamp 2″, 316L, 3.1 | 52024002 | |
| 20 | Process adap. M24 Variv F DN25 PN40 316L | 52023996 | |
| 21 | Proc.adap.M24 Variv.F DN25 PN40 316L 3.1 | 52024003 | |
| 22 | Process adapter M24 DIN11851 DN40, 316L | 52023999 | |
| 23 | Process adap. M24 DIN11851 DN40,316L,3.1 | 52024006 | |
| 24 | Proc. adap. M24 Variv N DN50 PN40 316L | 52023997 | |
| 25 | Proc.adap.M24 Variv N DN50 PN40 316L 3.1 | 52024004 | |
| 26 | Process adap. M24 DIN11851 DN50,316L,3.1 | 52024005 | |
| 27 | Process adapter M24 SMS 1-1/2″, 316L | 52026997 | |
| 28 | Process adapter M24 SMS 1-1/2″,316L, 3.1 | 52026999 | |
| 29 | Process adapter M24 DIN11851 DN50, 316L | 52023998 | |
| 30 | Process adapter M24 APV-Inline, 316L | 52024000 | |
| 31 | Process adapter M24 APV-Inline,316L, 3.1 | 52024007 | |
| 32 | Weld-in adapter G1, 316L | 52005087 | |
| 33 | Weld-in adapter G1, 316L, 3.1 | 52010171 | |
| 34 | Weld-in dummy, adapter G1 | 52005272 | |
| 35 | Weld-in adapter G1, d=60, 316L | 52001051 | |
| 36 | Weld-in adapter G1, d=60, 316L, 3.1 | 52011896 | |
| 37 | Weld-in adapter G1, d=53, 316L | 71258358 | |
| 38 | Welding dummy for weld-in adap. G1,brass | 71675410 | |
| 39 | Blind plug for weld-in adap.G1, 316L.3.1 | 71675413 | |
| 40 | Weld-in adapter M24 D65, 316L | 71041381 | |
| 41 | Weld-in adapter M24 D65, 316L, 3.1 | 71041383 | |
| 42 | Weld-in adapter UNI D65, 316L | 214880-0002 | |
| 43 | Weld-in adapter UNI D65, 316L, 3.1 | 52010174 | |
| 44 | Weld-in adapter UNI D85, 316L | 52006262 | |
| 45 | Weld-in adapter UNI D85, 316L, 3.1 | 52010173 | |
| 46 | Weld-in dummy, adapter UNI D65/D85 | 71114210 | |
| 47 | Blind plug weld-in adapter UNI D65/85 | 71580894 | |
| 48 | Adapter Uni, Clamp 3″, 316L, 3.1 | 71350314 | |
| 49 | Adapter Uni, Clamp 3″, 316L | 71350315 | |
| 50 | Pipe assembly DN25, flush mount | 71477801 | |
| 51 | Pipe assembly DN32, flush mount | 71477803 | |
| 52 | Pipe assembly DN40, flush mount | 71477807 | |
| 53 | Pipe assembly DN50, flush mount | 71477808 | |
| 54 | Pipe assembly Clamp DN25, flush mount | 71477812 | |
| 55 | Pipe assembly Clamp DN32, flush mount | 71477813 | |
| 56 | Pipe assembly Clamp DN40, flush mount | 71477816 | |
| 57 | Pipe assembly Clamp DN50, flush mount | 71477817 |
