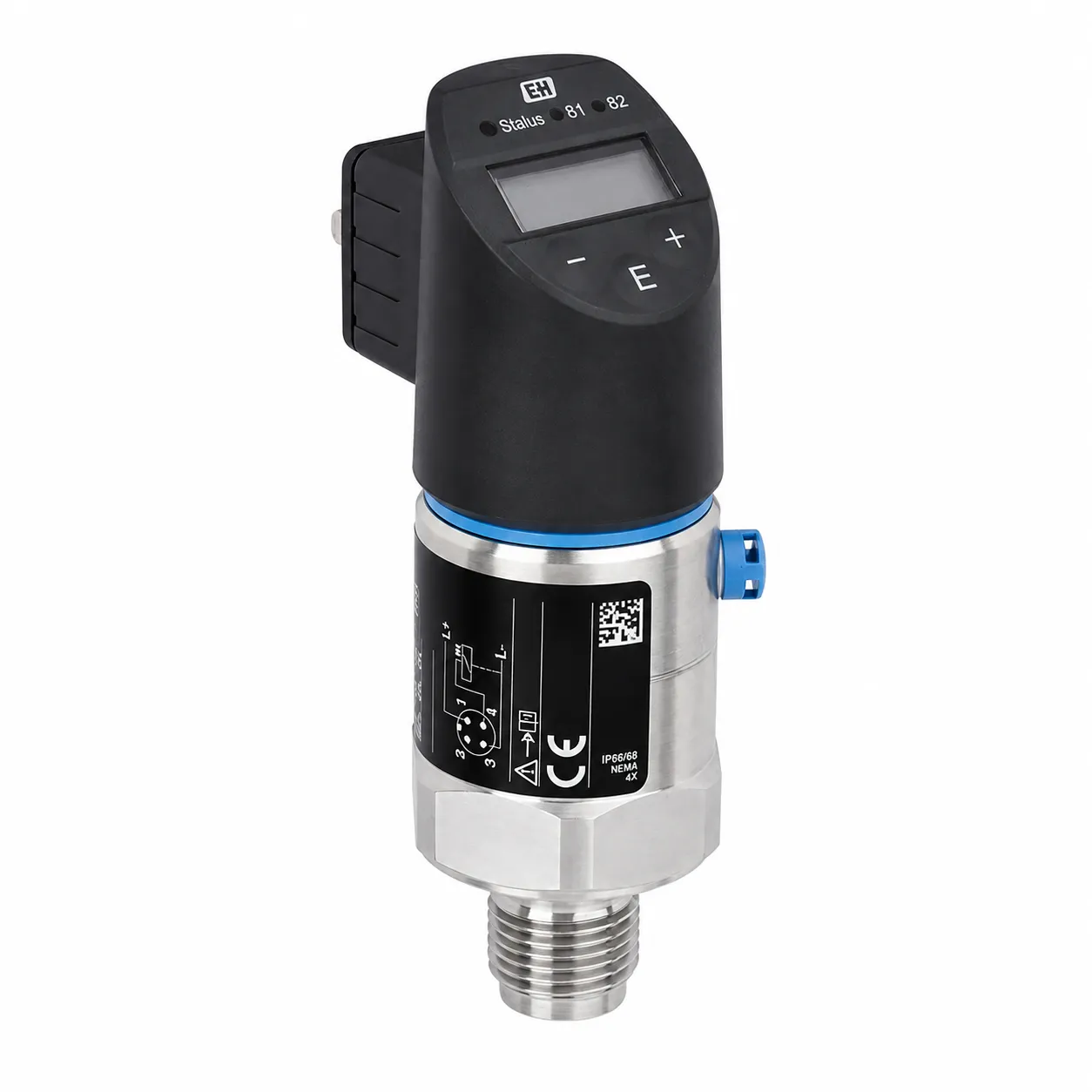

Absolute and gauge pressure Ceraphant PTC31B | Endress Hauser E+H

Cost-effective pressure switch with oil-free ceramic sensor for measurement in gases or liquids

Request a Quote

Specs at a glance

Measuring cell +100 mbar….+40 bar (+1.5 psi….600 psi)

Field of application

The Ceraphant PTC31B is a price-attractive pressure switch with ceramic, vacuum tight measuring cell for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and high vacuum resistant up to 0bar abs. The IO-Link capability allows easy integration and parametrization of the device.

Benefits

  • Integrated switching electronics for decentral and economic process monitoring and control
  • Easy function check and information on site thanks to LEDs and digital display
  • Dry capacitance ceramic sensor (Ceraphire) and minimum span of up to 0 to 20mbar provide reliable insight to the process
  • High process availability for vacuum applications and applications with abrasive media
  • IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.

Spare parts & accessories

DescriptionCategoryOrder Code
1Valve Plug ISO4400 M16, PTP/PTC3xBfurther parts71336104
2Valve plug ISO4400 NPTF1/2, PTP/PTC3xBfurther parts71336105
3M12-female plug connec.,90deg,cable sidefurther parts71114212
4M12-female plug connec., 100deg,5m cablefurther parts52010285
5M12-female plug connector, cable sidefurther parts52006263
Download Datasheet
