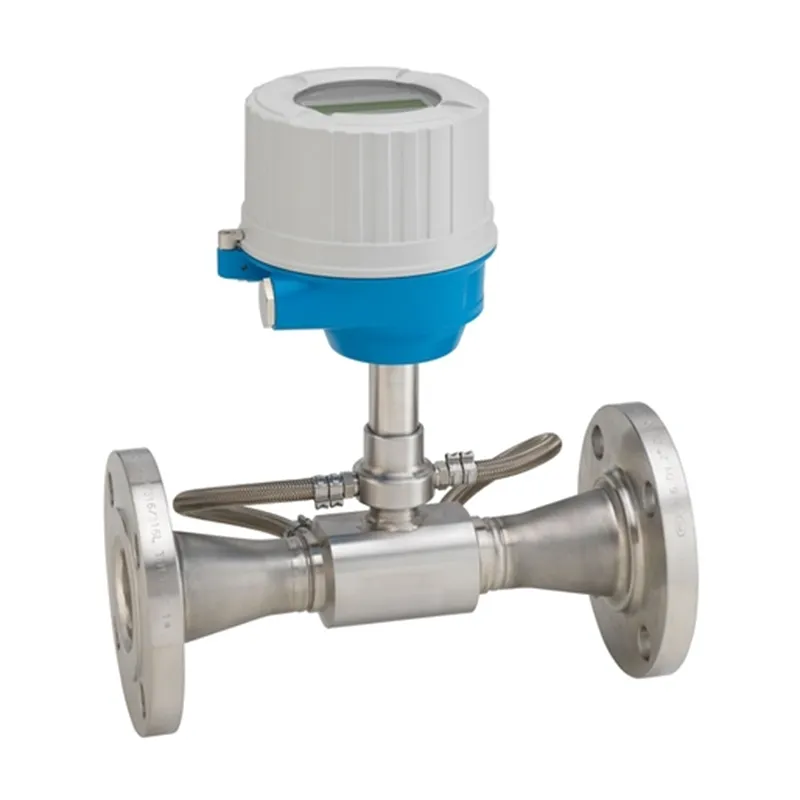

Proline Prosonic Flow E 100 ultrasonic flowmeter | Endress Hauser E+H

Economical Ultrasonic flowmeter with integrated temperature measurement

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

• Max. measurement error Volume flow: – ± 0.5 % o.r. ± 0.02% o.f.s. for 0.5 to 10 m/s (1.6 to 33 ft/s) – ± 0.07 % o.f.s. for flow
velocities < 0.5 m/s (1.64 ft/s)
• Measuring range 0.025 to 5 m/s (0.02 to 16.4 ft/s) 0 to 6360 dm3/min (0 to 1680 gal/min)
• Medium temperature range 0 to 150° (17.8 to 302 °F)
• Max. process pressure PN 25 / ASME Cl. 150
• Wetted materials Measuring tube: 1.4301 (F304) Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1,4306 (F304L); 1.4307 (F304L); A105

Field of application

Measuring of demineralized water in utilities, for example in boiler condensate return lines, requires reliable devices. Prosonic Flow E 100 provides economical and accurate bidirectional flow measurement across all industries. With its integrated temperature measurement, Prosonic Flow E 100 proves to be a multivariable flowmeter for considerable additional value in your plant. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.

Benefits

Long-term stability – reliable, robust sensor
Reducing further measuring point – multivariable device
Dependable flow measurement – high turndown (200:1)
Time-saving local operation without additional software and hardware – integrated web server

Extended calibration intervals – integrated device verification due to Heartbeat Technology

Easy commissioning – brief parameter explanations

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronic Prosonic Flow E 100	Electronic	30	XPD0041-
2	Display module, 4-wire, 100	Display	50	XPD0023-
3	Kit T-DAT, 100/300/400/500	Memory	39	71185788
4	Kit cover, compact, Alu	Cover	21	71185789
5	Kit cover, compact, stainless 1.4301	Cover	21	71185790
6	Kit cover, sight glass, compact, Alu	Cover	20	71266334
7	Kit cover, sight glass, compact, 1.4301	Cover	20	71266335
8	Kit housing gaskets, compact, Alu	Sealing	70	71185795
9	Kit housing gaskets, compact, stainless	Sealing	70	71185797
10	Kit 10 cable glands M20x1.5 Ex	Adapter housing/cable entry	15	50098036
11	Kit 2 cable glands M20x1.5 INOX Ex	Adapter housing/cable entry	15	71069285
12	Kit 10 ext. M20x1.5/G 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098041
13	Kit 2 cable glands G1/2″ INOX Ex	Adapter housing/cable entry	15	71185802
14	Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098042
15	Kit 2 cable glands NPT1/2″ INOX Ex	Adapter housing/cable entry	15	71185800
16	Kit securing clamp, screw	Housing/housing accessories	12	71276494
17	Spare RFID TAG	further parts		XPRFID-
18	Spare IEC TAG	further parts		XPSPEC-
